Analog Devices Inc./Maxim Integrated MAX6420UK29+G24

Part No.:: MAX6420UK29+G24

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: SC-74A, SOT-753

Datasheet:

Description:: IC SUPERVISOR 2 CHANNEL SOT23-5

In Stock:: 3917

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX6420UK29+G24 Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Obsolete
Type:
Multi-Voltage Supervisor
NumberofVoltagesMonitored:
2
Voltage-Threshold:
2.925V, Adj
Output:
Open Drain or Open Collector
Reset:
Active Low
ResetTimeout:
Adjustable/Selectable
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

MAX6420UK29+G24 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX6420UK29+G24 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX6420UK29+G24 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX6420UK29+G24 information

Views：

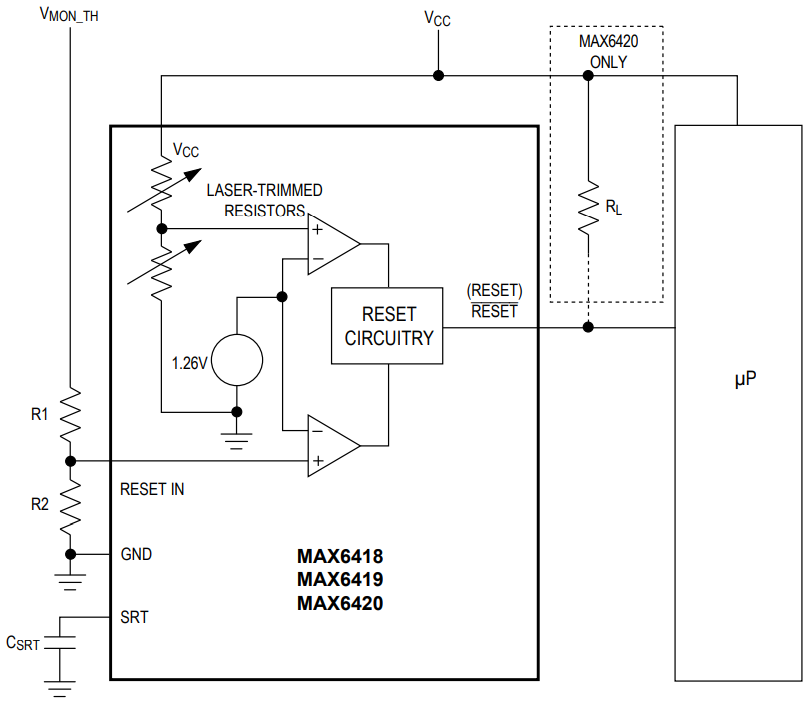

MAX6420UK29+G24 Typical application Circuitry

MAX6420UK29+G24

The MAX6420UK29+G24 is a component from the MAX6420 series by Maxim Integrated, known for their microprocessor (μP) supervisory circuits. These devices are critical in ensuring reliable operation of microprocessor-based systems by monitoring supply voltages and asserting a reset signal when necessary. This particular model is tailored to manage systems that operate near a threshold voltage of 2.9V.

1. Voltage Supply Pin (VCC): This pin connects to the power source of your system. For the MAX6420UK29+G24, this should ideally be the voltage level you're monitoring, close to 2.9V.

2. Ground Pin (GND): Essential for the operation of the circuit, the ground pin needs to be connected to the system's ground.

3. Reset Output Pin (RESET): This pin plays a crucial role in interfacing with the microprocessor. When the voltage drops below 2.9V, the reset pin becomes active (usually transitioning to a low state) and maintains this state for a predetermined period after the voltage climbs back above the threshold.It's crucial to link this pin to the microprocessor's reset input.

4. Manual Reset Pin (MR, if present): In some models of the MAX6420 series, including possibly the MAX6420UK29+G24, a manual reset pin allows for an external reset trigger. Typically, this pin is linked to a button that, when pressed, connects the MR pin to ground, initiating a reset.

5. Output Configuration (Open Drain or Push-Pull): Depending on the specific model, the reset output could be in an open-drain or push-pull configuration. For an open-drain output, an external pull-up resistor is necessary, whereas a push-pull output can be directly connected to most microprocessor reset inputs.

Incorporating the MAX6420UK29+G24 into a microprocessor system requires attention to these connection points. It's vital to ensure that the supply voltage, ground, reset output, and manual reset (if applicable) are correctly connected. The output type, either open drain or push-pull, should also be considered for proper interfacing. Always refer to the MAX6420UK29+G24 datasheet for specific pinout details and application advice.
