Analog Devices Inc./Maxim Integrated MAX6369KA+G24

Part No.:: MAX6369KA+G24

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: SOT-23-8

Datasheet:

Description:: IC SUPERVISOR 1 CHANNEL SOT23-8

In Stock:: 2718

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX6369KA+G24 Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Obsolete
Type:
Watchdog Circuit
NumberofVoltagesMonitored:
1
Voltage-Threshold:
Adjustable/Selectable
Output:
Open Drain or Open Collector
Reset:
Active Low
ResetTimeout:
Adjustable/Selectable
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

MAX6369KA+G24 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX6369KA+G24 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX6369KA+G24 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX6369KA+G24 information

Views：

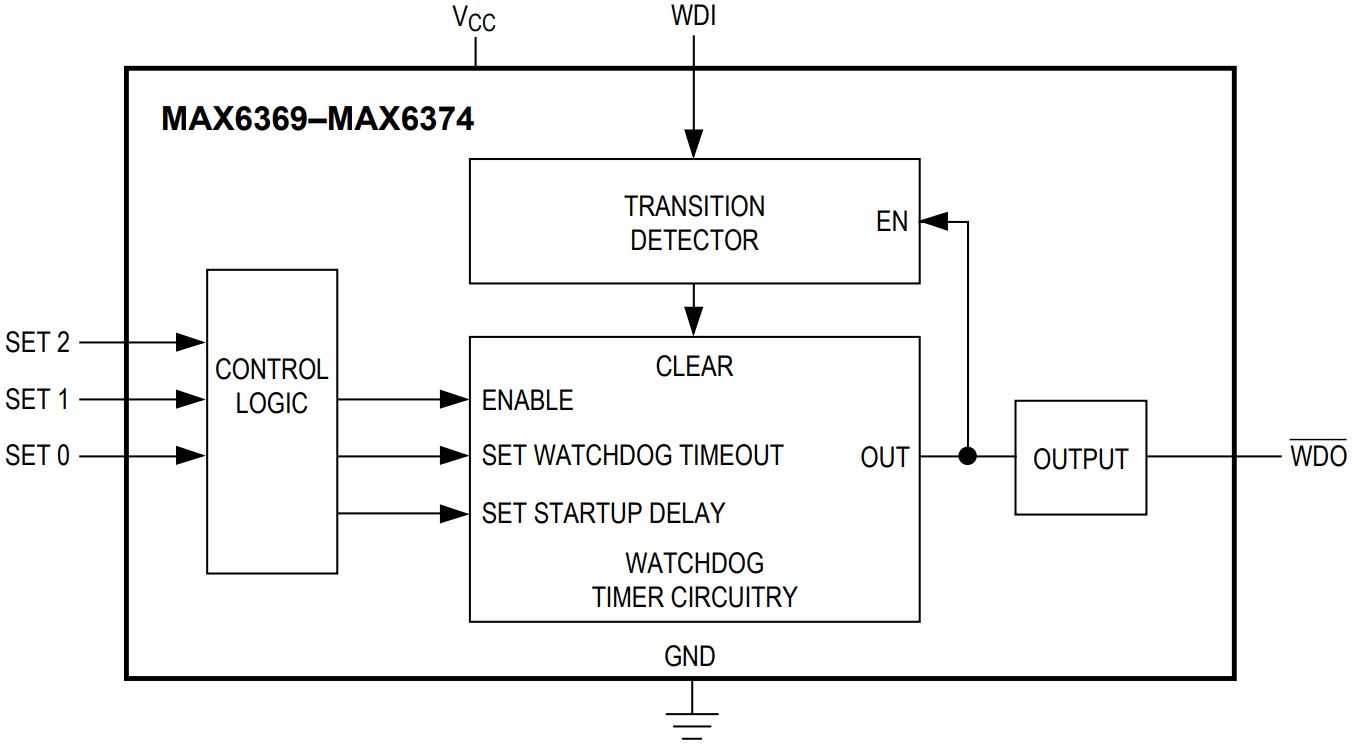

MAX6369KA+G24 Typical application Circuitry

MAX6369KA+G24

The MAX6369KA+G24 is part of the MAX6369 series of pin-selectable watchdog timers from Maxim Integrated. These devices are designed to provide system reliability through monitoring and resetting microprocessors (µP) that may be operating erratically due to code errors or other failures.

1. Power Supply Connection: The VCC pin of the MAX6369KA+G24 should be connected to a stable power source, typically within the range specified by the datasheet, which is usually between 1.2V and 5.5V.

2. Grounding: Attach the system ground to the GND pin.

3. Watchdog Input (WDI): This pin should be connected to a signal line from the microprocessor. The µP must regularly toggle this line within the set watchdog timeout period to prevent the timer from resetting the µP.

4. Watchdog Output (WDO): Attach this to the microprocessor's reset input. If the WDI is not toggled within the timeout period, WDO will issue a reset signal to the µP.

5. Timeout Period Setting: The MAX6369KA+G24 has pin-selectable timeout periods. By connecting specific pins (as outlined in the datasheet) to either VCC or GND, you can set the desired timeout period.

6. Open-Drain or Push-Pull Configuration: Depending on the specific application, you can configure the output (WDO) to be either open-drain or push-pull. This is done by connecting specific configuration pins to VCC or GND.

Remember, the exact pin configuration and connection details should always be verified with the latest datasheet of the MAX6369KA+G24, as there might be variations or updates in different versions of the chip. Additionally, it's crucial to understand the logic levels and power requirements of the connected microprocessor to ensure compatibility and reliable operation.
