Analog Devices Inc. LTC2420CS8#TRPBF

Part No.:: LTC2420CS8#TRPBF

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LTC2420CS8#TRPBF.pdf

Description:: IC ADC 20BIT SIGMA-DELTA 8SOIC

In Stock:: 2995

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTC2420CS8#TRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
microPOWER™
Product Status:
Active
Number of Bits:
20
Sampling Rate(PerSecond):
7.5
Number of Inputs:
1
Input Type:
Single Ended
Data Interface:
SPI
Configuration:
ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 5.5V
Voltage-Supply Digital:
2.7V ~ 5.5V
Features:
-
Operating Temperature:
0°C ~ 70°C

LTC2420CS8#TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTC2420CS8#TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTC2420CS8#TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTC2420CS8#TRPBF information

Views：

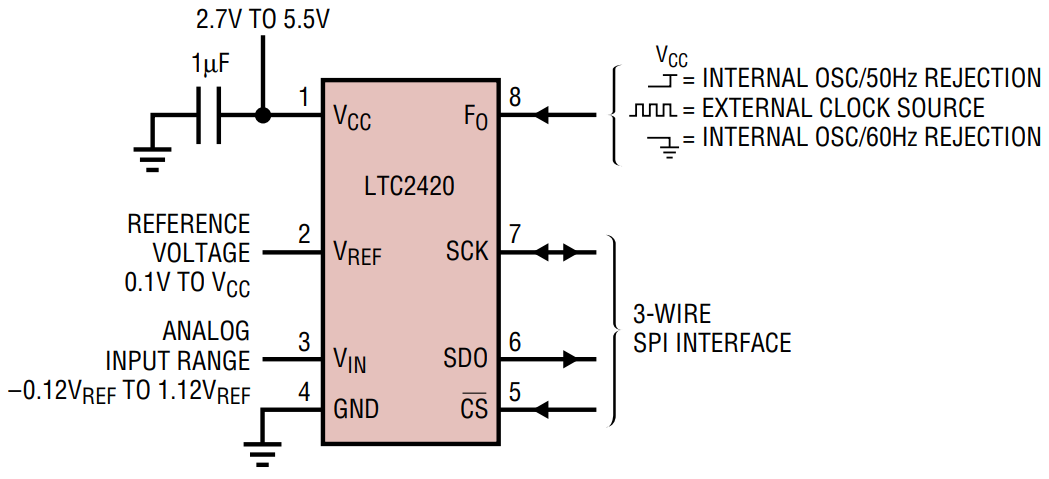

LTC2420CS8#TRPBF Typical application Circuitry

LTC2420CS8 TRPBF

The LTC2420CS8#TRPBF is a key model in the LTC2420 series, acclaimed for its high-precision 20-bit analog-to-digital converters (ADCs). This series is particularly renowned for its exceptional accuracy and minimal power consumption, making these ADCs ideal for sophisticated data acquisition in fields such as medical instrumentation, industrial control systems, and precision measurement devices. The LTC2420CS8#TRPBF is especially noted for its ability to deliver high-resolution measurements while simplifying the integration process, as it requires fewer external components.

1. Power Supply Pins (Vcc, GND): The Vcc pin of the LTC2420CS8#TRPBF should be connected to a regulated power source, typically at 5V. It is necessary to connect the GND pin to the system's ground. This configuration is essential to the ADC's reliable and effective operation.

2. Analog Input Pins (IN+/-): These differential input pins are designed for receiving the analog signals that the LTC2420CS8#TRPBF converts into digital data. It's essential to ensure that the input signals are within the ADC's specified range and that they are isolated from external noise sources to maintain the integrity of the conversion.

3. Reference Input Pins (REF+/REF-): The connection of an external reference voltage to these pins is critical for defining the ADC's conversion scale. The precision of the LTC2420CS8#TRPBF's output is significantly impacted by the quality and stability of this reference voltage.

4. Serial Interface Pins (SCK, SDO): For digital communication, the LTC2420CS8#TRPBF employs the SCK and SDO pins. SCK is the Serial Clock, while SDO is the Serial Data Output. Accurate timing and synchronization on these lines are imperative for effective data transfer.

5. Conversion Control Pin (CONV): The CONV pin is utilized to start the ADC's conversion process. This control facilitates precise timing in data acquisition, which is vital in applications requiring synchronized measurements.

When incorporating the LTC2420CS8#TRPBF into a circuit, meticulous attention to minimizing noise and ensuring signal integrity is essential. This includes a well-planned PCB layout with short trace lengths, effective shielding, and strategic placement of decoupling capacitors near the power supply pins for a stable voltage supply.

For comprehensive details on employing the LTC2420CS8#TRPBF, including specific pin configurations and recommended circuit layouts, referring to the datasheet is indispensable. This document provides extensive guidance for effectively using this high-precision ADC in various demanding data acquisition scenarios.
