Analog Devices Inc. LTC2420CS8#PBF

Part No.:: LTC2420CS8#PBF

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LTC2420CS8#PBF.pdf

Description:: IC ADC 20BIT SIGMA-DELTA 8SOIC

In Stock:: 2540

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTC2420CS8#PBF Specifications

Packaging:
Tube
Series:
microPOWER™
Product Status:
Active
Number of Bits:
20
Sampling Rate(PerSecond):
7.5
Number of Inputs:
1
Input Type:
Single Ended
Data Interface:
SPI
Configuration:
ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 5.5V
Voltage-Supply Digital:
2.7V ~ 5.5V
Features:
-
Operating Temperature:
0°C ~ 70°C

LTC2420CS8#PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTC2420CS8#PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTC2420CS8#PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTC2420CS8#PBF information

Views：

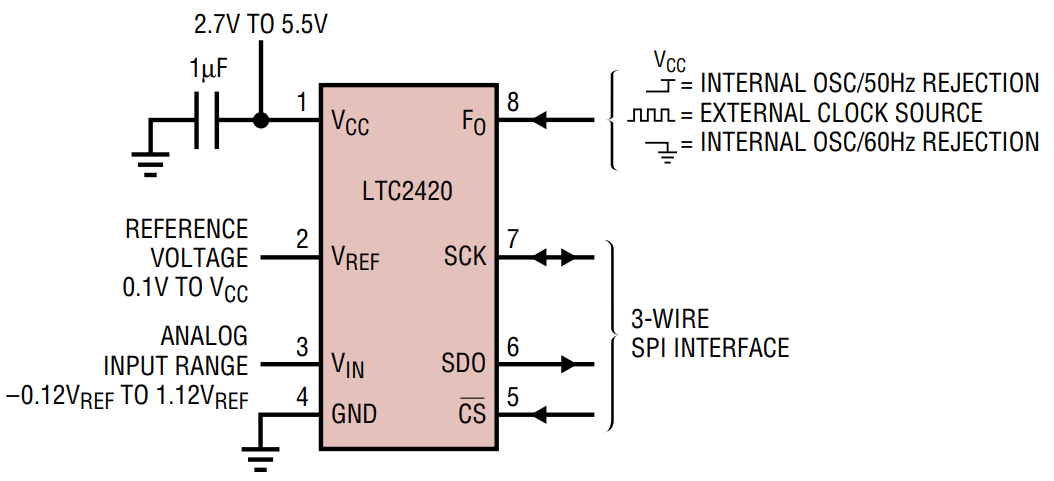

LTC2420CS8#PBF Typical application Circuitry

LTC2420CS8 PBF

The LTC2420CS8#PBF is an integral part of the LTC2420 series, which is renowned for its ultra-precision 20-bit analog-to-digital converters (ADCs). This series is particularly celebrated for its exceptional accuracy and low power consumption, making it an excellent choice for high-resolution data acquisition in applications such as medical devices, industrial control systems, and precision instrumentation. The LTC2420CS8#PBF is designed to provide high-precision measurements with minimal external components, simplifying the design process for complex systems.

1. Power Supply Pins (Vcc, GND): The Vcc pin of the LTC2420CS8#PBF should be connected to a stable power supply, typically 5V. The ground pin, GND, must be connected to the system ground, ensuring the ADC functions effectively and stably.

2. Analog Input Pins (IN+/-): These differential input pins receive the analog signals that the LTC2420CS8#PBF will convert. To ensure accurate conversion, it's crucial that these signals are within the ADC's input range and are protected from external noise interference.

3. Reference Input Pins (REF+/REF-): Connecting an external reference voltage to these pins is essential for setting the scale of the ADC's conversion. The accuracy of the LTC2420CS8#PBF is significantly influenced by the stability and precision of this reference voltage.

4. Serial Interface Pins (SCK, SDO): For serial connection with other digital systems, these pins are utilized. SCK is the Serial Clock, and SDO is the Serial Data Output. Proper synchronization and timing on these lines are crucial for accurate and efficient data transfer.

5. Conversion Control Pin (CONV): The conversion procedure is started with the CONV pin. This control allows for precise timing in data acquisition, which can be critical in synchronized systems.

When integrating the LTC2420CS8#PBF into a circuit, attention to minimizing noise and maintaining signal integrity is paramount. This includes careful PCB layout planning, using short trace lengths, and implementing proper shielding. Additionally, placing decoupling capacitors near the power supply pins is advisable to provide a stable voltage supply.

For detailed information on using the LTC2420CS8#PBF, including pin configuration and optimal circuit design, the datasheet is a crucial resource. It offers comprehensive guidelines for effectively employing this high-precision ADC in a range of demanding and sensitive applications.
