Analog Devices Inc. LTC2246IUH#PBF

Part No.:: LTC2246IUH#PBF

Manufacturer:: Analog Devices Inc.

Package:: 32-WFQFN Exposed Pad

Datasheet:: LTC2246IUH#PBF.pdf

Description:: IC ADC 14BIT PIPELINED 32QFN

In Stock:: 2318

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTC2246IUH#PBF Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
14
Sampling Rate(PerSecond):
25M
Number of Inputs:
1
Input Type:
Differential, Single Ended
Data Interface:
Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
External, Internal
Voltage-Supply Analog:
2.7V ~ 3.4V
Voltage-Supply Digital:
2.7V ~ 3.4V
Features:
-
Operating Temperature:
-40°C ~ 85°C

LTC2246IUH#PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTC2246IUH#PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTC2246IUH#PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTC2246IUH#PBF information

Views：

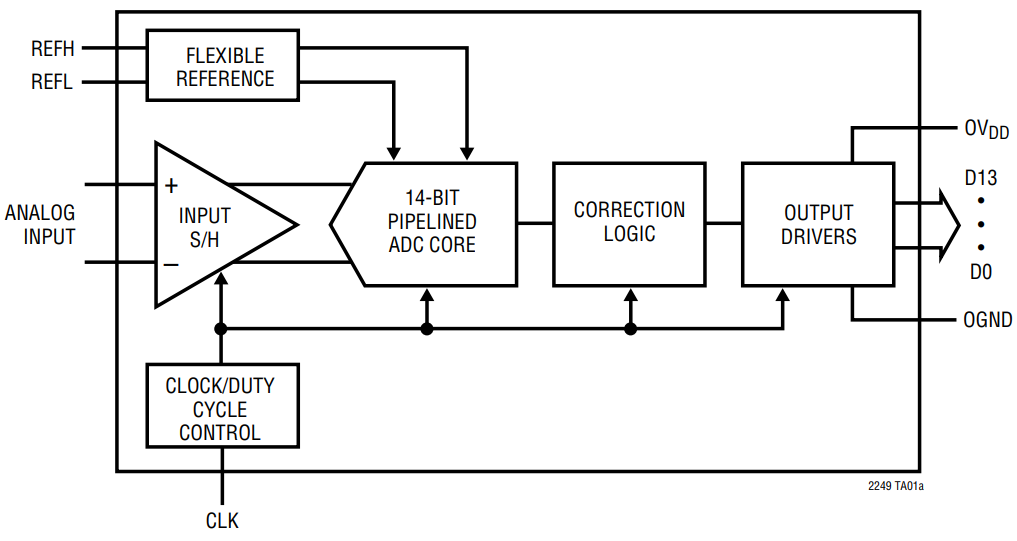

LTC2246IUH#PBF Typical application Circuitry

LTC2246IUH PBF

The LTC2246IUH#PBF belongs to the LTC2246 series, a family of high-speed, low-power, 14-bit analog-to-digital converters (ADCs). These ADCs are highly regarded for their exceptional performance in rapidly converting analog signals to digital data with high precision and low noise. The LTC2246IUH#PBF is especially suitable for applications requiring fast data acquisition, such as in communication systems, medical imaging, and digital signal processing.

1. Power Supply Pins (VDD, OVDD, GND): The VDD pin of the LTC2246IUH#PBF should be connected to a stable supply voltage, typically around 3V. OVDD is the output driver supply and can vary depending on the logic level requirements of the system. Both VDD and OVDD must be properly decoupled. The ground pin, GND, needs to be connected to the system ground for stable operation.

2. Analog Input Pins (IN+, IN-): These differential input pins accept the analog signal to be converted. Careful attention should be given to the signal's quality and the avoidance of noise, as this directly affects the ADC's accuracy.

3. Digital Output Pins (D0-D13, OGND, OR): The digital outputs are provided through these pins. D0-D13 represent the 14-bit digital output data. OR is an out-of-range indicator. OGND is the digital output ground and should be connected to the system digital ground.

4. Clock Input Pin (ENC): This pin receives the external clock signal, which determines the sampling rate of the ADC. A stable and precise clock source is crucial for the accuracy of the LTC2246IUH#PBF.

5. Control Pins (PDWN, SLEEP, BUSY): PDWN is used to power down the ADC when not in use, SLEEP is for the sleep mode, and BUSY indicates the conversion status of the ADC.

When integrating the LTC2246IUH#PBF into a circuit, it's essential to ensure a layout that minimizes noise and preserves signal integrity. This includes strategic PCB design, employing decoupling capacitors at power supply pins, and careful routing of digital and analog signals to avoid interference.

For detailed information about the LTC2246IUH#PBF, including pin configurations, electrical characteristics, and application circuit recommendations, the datasheet is an invaluable resource. This document provides critical insights for efficiently utilizing this high-speed ADC in complex and demanding data acquisition environments.
