Name: LTC2208IUP#TRPBF
Brand: Analog Devices Inc.
SKU: LTC2208IUP#TRPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. LTC2208IUP#TRPBF

Part No.:: LTC2208IUP#TRPBF

Manufacturer:: Analog Devices Inc.

Package:: 64-WFQFN Exposed Pad

Datasheet:: LTC2208IUP#TRPBF.pdf

Description:: IC ADC 16BIT PIPELINED 64QFN

In Stock:: 2898

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTC2208IUP#TRPBF Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
130M
Number of Inputs:
1
Input Type:
Differential
Data Interface:
LVDS - Parallel, Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
External, Internal
Voltage-Supply Analog:
3.135V ~ 3.465V
Voltage-Supply Digital:
3.135V ~ 3.465V
Features:
PGA
Operating Temperature:
-40°C ~ 85°C

LTC2208IUP#TRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTC2208IUP#TRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTC2208IUP#TRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTC2208IUP#TRPBF information

Views：

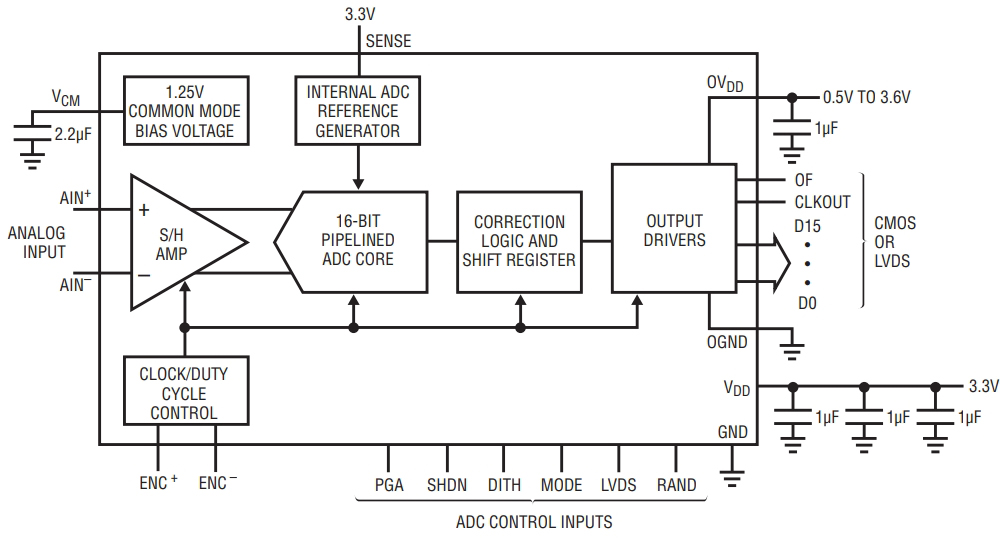

LTC2208IUP#TRPBF Typical application Circuitry

LTC2208IUP TRPBF

The 16-bit, high-speed Analog-to-Digital Converter (ADC) LTC2208IUP#TRPBF was developed by Linear Technology and is currently a component of Analog Devices. This ADC is designed to offer excellent dynamic performance, making it ideal for demanding applications that require high-precision data conversion at high sampling rates.

Application Scenarios:

LTC2208IUP#TRPBF finds its applications in a wide range of fields such as medical imaging, digital communication systems, spectrum analyzers, and high-speed data acquisition systems. A specific application could be in a digital oscilloscope, where it is used to convert the analog signals captured from the circuit under test into digital form for processing and display.

Parameter Characteristics:

The LTC2208IUP#TRPBF boasts features like a sampling rate of up to 130Msps, an SNR (Signal to Noise Ratio) that ensures high-quality signal conversion, and a wide input bandwidth which allows it to capture a broad range of frequencies. It also runs on a single 1.8V supply, which contributes to a lower power usage.

For a detailed circuit connection using LTC2208IUP#TRPBF in a digital oscilloscope application, consider the following points:

1. Power Supply Connection

The LTC2208IUP#TRPBF requires a stable 1.8V power supply connected to its VDD pin (typically pin 40) for optimal performance. It's crucial to ensure that the power supply is clean and well-regulated to minimize noise, which can affect the ADC's performance.

2. Input Signal Conditioning

To prepare the analog signal for conversion, it's essential to condition it using an input buffer or amplifier connected to the ADC's IN+ and IN− pins (pins 23 and 22, respectively). This step ensures that the signal amplitude is within the ADC's input range and impedance matched to achieve the best performance.

3. Clock Input

A high-quality, low-jitter clock signal must be provided to the ENC+ and ENC− pins (pins 3 and 2) of LTC2208IUP#TRPBF. The clock quality directly influences the ADC's performance, particularly its SNR and SFDR (Spurious-Free Dynamic Range).

4. Output Data Interface

The digital output of LTC2208IUP#TRPBF is accessible through its parallel data output pins (D0 to D15). These must be properly interfaced with the oscilloscope's digital processing unit. Ensuring timing alignment and integrity of the data signals is critical for accurate digital representation of the analog input.

5. Reference Voltage Setup

A precise reference voltage is required for the ADC to accurately convert input signals. This can be achieved by connecting a stable reference voltage source to the REF+ and REF− pins (pins 25 and 24).

When designing circuits with LTC2208IUP#TRPBF, it's important to consider aspects such as power integrity, signal integrity, thermal management, and the electromagnetic environment. The layout of the PCB should minimize noise coupling into sensitive analog areas, and proper grounding techniques must be employed to avoid ground loops which can degrade the ADC's performance.

Incorporating LTC2208IUP#TRPBF into high-speed data acquisition systems like digital oscilloscopes requires careful attention to the ADC's driving conditions, signal integrity, and the overall system design to fully utilize its high-speed, high-precision capabilities.
