Name: LTC2208IUP-14#PBF
Brand: Analog Devices Inc.
SKU: LTC2208IUP-14#PBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. LTC2208IUP-14#PBF

Part No.:: LTC2208IUP-14#PBF

Manufacturer:: Analog Devices Inc.

Package:: 64-WFQFN Exposed Pad

Datasheet:: LTC2208IUP-14#PBF.pdf

Description:: IC ADC 14BIT PIPELINED 64QFN

In Stock:: 3637

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTC2208IUP-14#PBF Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
14
Sampling Rate(PerSecond):
130M
Number of Inputs:
1
Input Type:
Differential
Data Interface:
LVDS - Parallel, Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
External, Internal
Voltage-Supply Analog:
3.135V ~ 3.465V
Voltage-Supply Digital:
3.135V ~ 3.465V
Features:
PGA
Operating Temperature:
-40°C ~ 85°C

LTC2208IUP-14#PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTC2208IUP-14#PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTC2208IUP-14#PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTC2208IUP-14#PBF information

Views：

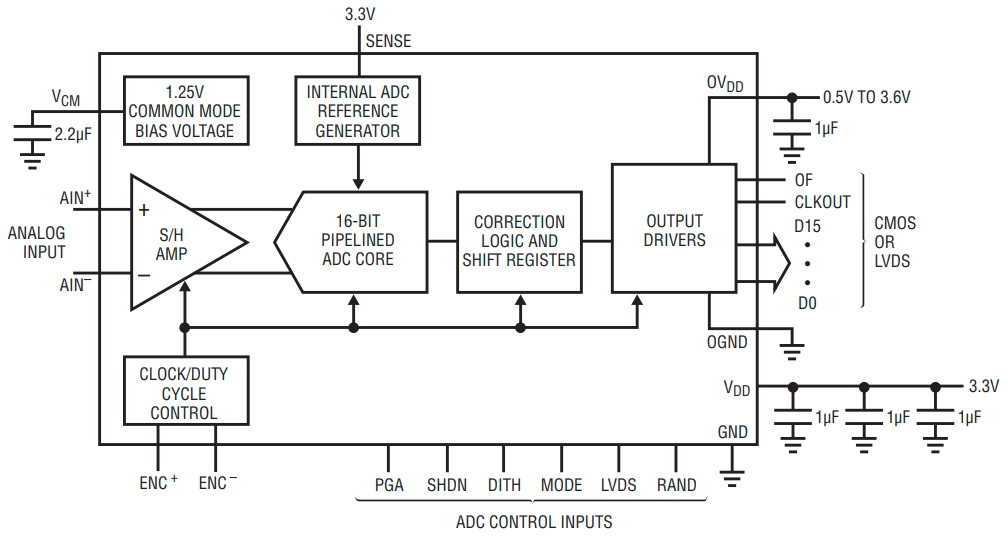

LTC2208IUP-14#PBF Typical application Circuitry

LTC2208IUP-14 PBF

The LTC2208IUP-14#PBF is a cutting-edge Analog-to-Digital Converter (ADC) from Linear Technology, an entity within Analog Devices. This component is distinguished by its ability to swiftly and precisely convert analog signals into digital data, making it indispensable in a variety of high-speed data acquisition and signal processing applications.

Application Environments: Satellite Communication Systems

A key application for the LTC2208IUP-14#PBF is within satellite communication systems, where it serves to digitize analog signals received from space, enabling their subsequent processing and analysis. The ADC's high sampling rate and resolution are critical in these contexts for ensuring the fidelity and integrity of the received data.

Core Parameters

- High Sampling Rate: The LTC2208IUP-14#PBF can operate at sampling rates up to 130 MSPS, facilitating the capture of rapidly changing signals from satellite transmissions.

- Resolution: With 16-bit resolution, the ADC provides detailed digital outputs, crucial for the nuanced analysis of satellite data.

- Dynamic Range: The expansive dynamic range of the LTC2208IUP-14#PBF ensures that it can handle signals of varying amplitudes, from the very weak to the very strong.

- Noise Performance: Designed with low noise in mind, the ADC preserves the quality of the signal, which is especially important in the signal-to-noise ratio sensitive environments of satellite communications.

Circuit Design: Implementation in Satellite Communications

To integrate the LTC2208IUP-14#PBF into a satellite communication system, the following detailed circuit connection strategy can be employed:

1. Stable Power Supply Connection: The power supply pins (e.g., VDD) of the LTC2208IUP-14#PBF must be connected to a stable and noise-free power source. This ensures that the ADC operates within its optimal parameters, free from power-related disruptions.

2. Analog Input Handling: The analog input pins (e.g., AIN+ and AIN-) need to be directly connected to the satellite signal receiver's output. This connection is pivotal for the ADC to accurately capture the incoming analog signals.

3. Clock Input Management: Delivering a stable and precise clock signal to the clock input pins (e.g., CLK+ and CLK-) of the LTC2208IUP-14#PBF is essential. The clock signal's stability directly influences the ADC's sampling accuracy and consistency.

4. Digital Output Routing: The digital output pins (e.g., DOUT) of the LTC2208IUP-14#PBF should be interfaced with the system's signal processing unit. This setup facilitates the onward processing of the digitized satellite signals.

5. Control Signals Configuration: Utilizing the control pins (e.g., ENCODE) to fine-tune the LTC2208IUP-14#PBF's operation allows for customized ADC performance, tailored to the specific needs of the satellite communication system.

Design Considerations

- Signal Integrity Assurance: Maintaining the integrity of both the input analog signal and the clock signal is crucial for the LTC2208IUP-14#PBF to perform optimally, especially in the context of satellite communications where signal quality is paramount.

- Effective Thermal Management: Given the high-speed operation of the LTC2208IUP-14#PBF, implementing efficient cooling measures is necessary to dissipate heat and ensure long-term reliability.

- Minimization of Power Supply Noise: Ensuring the cleanliness of the power supply to the LTC2208IUP-14#PBF is essential, as power supply noise can significantly impact the ADC's performance.

- Optimized PCB Layout: The PCB layout should be carefully designed to minimize signal path lengths and avoid electromagnetic interference, thus preserving signal quality and ADC performance.

Incorporating the LTC2208IUP-14#PBF into a satellite communication system requires meticulous attention to detail in terms of circuit design, signal integrity, thermal management, and power supply quality, ensuring the high-speed, high-resolution ADC capabilities are fully leveraged.
