Name: LTC2174IUKG-14
Brand: Analog Devices Inc.
SKU: LTC2174IUKG-14
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. LTC2174IUKG-14

Part No.:: LTC2174IUKG-14

Manufacturer:: Analog Devices Inc.

Package:: 52-WFQFN Exposed Pad

Datasheet:

Description:: IC ADC 14BIT PIPELINED 52QFN

In Stock:: 2064

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTC2174IUKG-14 Specifications

Packaging:
Tube
Series:
-
Product Status:
Obsolete
Number of Bits:
14
Sampling Rate(PerSecond):
105M
Number of Inputs:
4
Input Type:
Differential
Data Interface:
LVDS - Serial
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
4
Architecture:
Pipelined
Reference Type:
External, Internal
Voltage-Supply Analog:
1.7V ~ 1.9V
Voltage-Supply Digital:
1.7V ~ 1.9V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 85°C

LTC2174IUKG-14 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTC2174IUKG-14 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTC2174IUKG-14 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTC2174IUKG-14 information

Views：

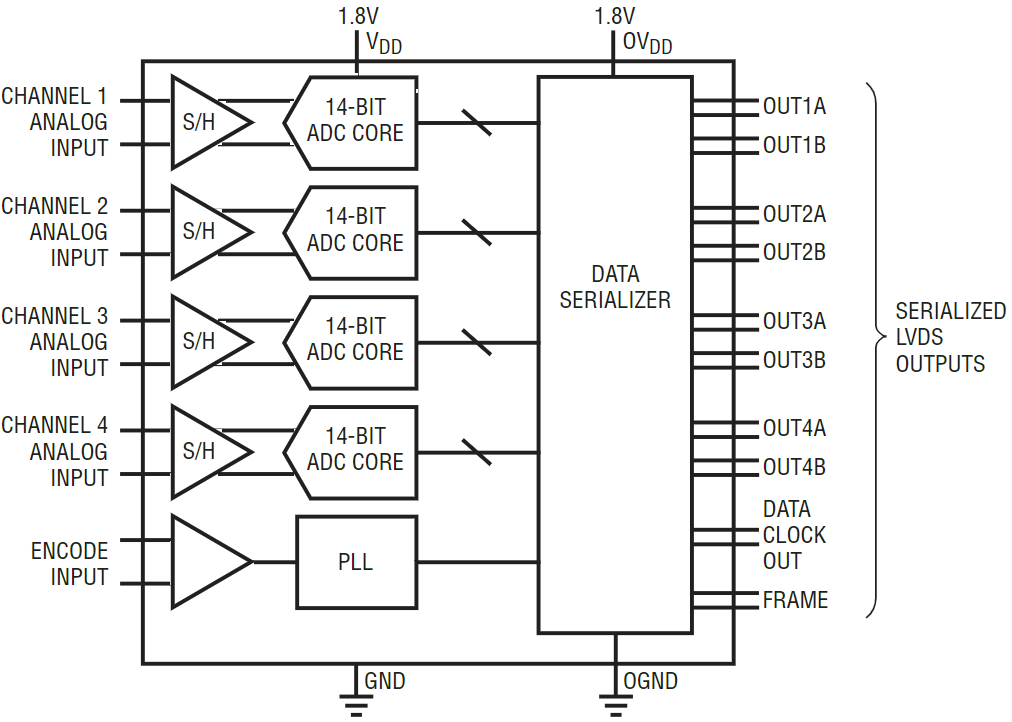

LTC2174IUKG-14 Typical application Circuitry

LTC2174IUKG-14

The LTC2174IUKG-14 is a part of the LTC2174 series, which is notable for its high-speed, low-power, 14-bit analog-to-digital converters (ADCs). This series is especially well-suited for demanding applications including industrial instrumentation, communications systems, and medical imaging that need for high-precision data gathering. The LTC2174IUKG-14 stands out for its ability to offer both high resolution and fast sampling rates, making it an excellent choice for systems that need to process large volumes of data quickly and accurately.

1. Power Supply Pins (VDD, GND): The LTC2174IUKG-14 requires a stable power supply connected to the VDD pin, typically around 1.8V. The system ground and the ground pin (GND) need to be linked. These connections are essential to the ADC's correct operation.

2. Pins for analog input (AIN+/-): The analog signal that has to be transformed is received by these differential input ports. The quality of the input signal directly impacts the accuracy of the ADC's conversion, so it is important to ensure that the signal is within the specified range and free from noise.

3. Digital Output Pins (D0-D13): The LTC2174IUKG-14 provides its digital output through these pins. The output data is in a parallel format, making it easy to interface with digital processors or FPGAs.

4. Clock Input Pin (ENC+/-): This pin receives the external clock signal that controls the sampling rate of the ADC. The correct functioning of the LTC2174IUKG-14 depends on the clock signal's precision and stability.

5. Control and Configuration Pins (OVDD, OVR, SCK, SDI, SDO, CS, PDWN): There are several control and configuration uses for these pins. OVDD is the digital output driver supply. OVR is the over-range indicator. SCK, SDI, and SDO are used for serial communication to configure the ADC. The chip select for serial communication is denoted by CS. PDWN is used to put the ADC into a low-power shutdown mode.

When integrating the LTC2174IUKG-14 into a circuit, attention to detail is critical. Ensuring minimal noise interference and preserving signal integrity requires careful PCB layout design, including the use of decoupling capacitors at power supply pins and impedance-matched traces for high-speed signals.

For comprehensive information on the LTC2174IUKG-14, including detailed pin descriptions, electrical characteristics, and application circuits, it is advisable to consult the datasheet. This resource is essential for leveraging the capabilities of this high-speed, high-precision ADC in complex data acquisition systems.
