Analog Devices Inc. LTC1867AIGN#PBF

Part No.:: LTC1867AIGN#PBF

Manufacturer:: Analog Devices Inc.

Package:: 16-SSOP (0.154, 3.90mm Width)

Datasheet:: LTC1867AIGN#PBF.pdf

Description:: IC ADC 16BIT SAR 16SSOP

In Stock:: 3899

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LTC1867AIGN#PBF Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
200k
Number of Inputs:
8
Input Type:
Differential, Single Ended
Data Interface:
SPI
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

LTC1867AIGN#PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LTC1867AIGN#PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LTC1867AIGN#PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LTC1867AIGN#PBF information

Views：

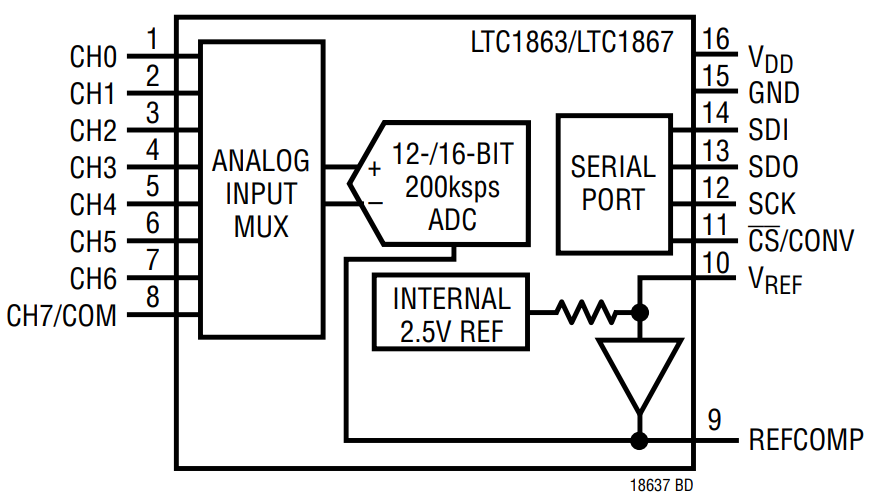

LTC1867AIGN#PBF Typical application Circuitry

LTC1867AIGN PBF

The LTC1867AIGN#PBF is a key component in the LTC1867 series, recognized for its advanced 16-bit analog-to-digital converters (ADCs). This specific model is acclaimed for its precision and efficiency in converting analog signals to digital format, making it ideal for high-accuracy applications in various fields such as industrial control systems and medical instrumentation.

1. Power Connections (Vcc, GND): For the LTC1867AIGN#PBF, the Vcc pin should be linked to a 5V power source. It's imperative to connect the GND (ground) pin properly to establish a common reference point for the entire system, thereby ensuring stable operation and minimizing noise in the signal conversion process.

2. Reference Voltage (REF): The REF pin plays a vital role in determining the reference voltage for the ADC's operations. The output accuracy of the LTC1867AIGN#PBF is directly influenced by the precision of the reference voltage, necessitating a stable and accurate voltage source for this pin.

3. Analog Input Channels (AIN0-AIN7): These pins are designated for the input of analog signals to be converted by the LTC1867AIGN#PBF. The device offers versatility with multiple input configurations, including both single-ended and differential modes, to accommodate different types of analog inputs.

4. Digital Interface Pins (SDI, SDO, SCK, CS): The LTC1867AIGN#PBF communicates digitally via these pins. SDI is for Serial Data Input, SDO for Serial Data Output, SCK is the Serial Clock Input, and CS is the Chip Select, crucial for activating the ADC for data transfer.

5. Control Pins (CONVST, BUSY): The CONVST pin on the LTC1867AIGN#PBF is used to initiate the analog-to-digital conversion. The BUSY pin indicates the current state of the ADC, whether it is in the process of converting or ready for a new operation.

When integrating the LTC1867AIGN#PBF into a circuit, careful attention should be paid to the PCB layout to ensure minimal noise interference and maintain signal integrity. The use of decoupling capacitors near the power pins is advisable to stabilize the power supply and enhance the overall performance of the ADC.

The datasheet for the LTC1867AIGN#PBF provides a detailed guide on the specific pin connections and recommended circuit configurations, enabling optimal utilization of this ADC in various applications. It is an essential resource for engineers and designers seeking to employ the full capabilities of the LTC1867AIGN#PBF in their systems.
