Texas Instruments LMV324QPWRE4

Part No.:: LMV324QPWRE4

Manufacturer:: Texas Instruments

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: LMV324QPWRE4.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14TSSOP

In Stock:: 2306

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMV324QPWRE4 Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
Rail-to-Rail
SlewRate:
1V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
15 nA
Voltage-InputOffset:
1.7 mV
Current-Supply:
410µA (x4 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

LMV324QPWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMV324QPWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMV324QPWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMV324QPWRE4 information

Views：

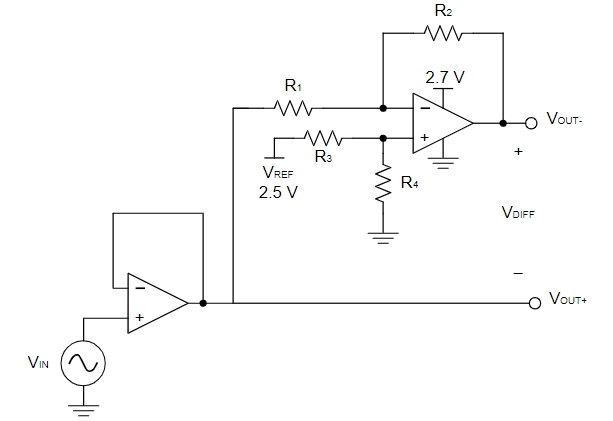

LMV324QPWRE4 Typical application Circuitry

LMV324QPWRE4

The LMV324QPWRE4 is a quad operational amplifier (op-amp) characterized by its low power consumption and rail-to-rail output. LMV324QPWRE4 It's designed for applications that require multiple amplification stages while operating at low voltage levels.

Broad Application Spectrum

This op-amp is utilized in various scenarios, such as:

- Audio Amplification: Enhancing audio signals in consumer electronics like speakers and headphones.

- Sensor Signal Conditioning: Refining signals from sensors in industrial and automotive systems.

- Active Filtering: Implementing filters in communication devices for signal processing.

- Voltage Monitoring: Monitoring voltage levels in battery-powered devices for power management.

Key Features

- Quad Channel Configuration: Provides four independent op-amps in a single package, optimizing space and power efficiency.

- Low Voltage Operation: Capable of functioning at supply voltages as low as 2.7V, suitable for battery-operated devices.

- Rail-to-Rail Output: Maximizes the dynamic range in low-voltage applications.

- Low Power Consumption: Ensures extended battery life in portable devices.

Circuit Design for an Active Filter in a Communication Device

1. Power Supply Integration: Connect a stable power source (e.g., 3.3V) to the V+ pin (pin 14) and ground to the V- pin (pin 4) of the LMV324QPWRE4.

2. Input Signal Connection: Link the signal to be filtered to the non-inverting input (pin 3) of the first op-amp.

3. Filter Configuration: Set up the desired filter (e.g., a low-pass filter) using resistors and capacitors between the non-inverting input, the inverting input (pin 2), and the output (pin 1) of the first op-amp.

4. Output Retrieval: Extract the filtered signal from the output (pin 1) of the first op-amp for further processing or direct use.

5. Leveraging Additional Op-Amps: Utilize the remaining op-amps for additional filtering stages or other signal processing tasks as required by the communication device.

6. Ensuring Stability: Place decoupling capacitors close to the power supply pins to stabilize the operating environment and reduce noise.

Design Considerations of the LMV324QPWRE4

- Filter Precision: Choose appropriate filter components to achieve the desired filter characteristics and signal fidelity.

- Power Efficiency: Optimize the circuit design for low power consumption to prolong battery life in portable devices.

- Thermal Management: Monitor power dissipation to prevent overheating, especially in compact designs with multiple active components.

- Signal Integrity: Ensure proper layout and shielding to maintain signal integrity and minimize interference.

In summary, the LMV324QPWRE4 is a versatile quad operational amplifier suitable for a wide range of applications, including active filtering in communication devices. By carefully considering key design aspects, this op-amp can be effectively utilized to achieve precise signal processing and conditioning in low-voltage systems.
