Texas Instruments LMV324IPWRE4

Part No.:: LMV324IPWRE4

Manufacturer:: Texas Instruments

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: LMV324IPWRE4.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14TSSOP

In Stock:: 3111

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMV324IPWRE4 Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
Rail-to-Rail
SlewRate:
1V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
15 nA
Voltage-InputOffset:
1.7 mV
Current-Supply:
410µA (x4 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

LMV324IPWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMV324IPWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMV324IPWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMV324IPWRE4 information

Views：

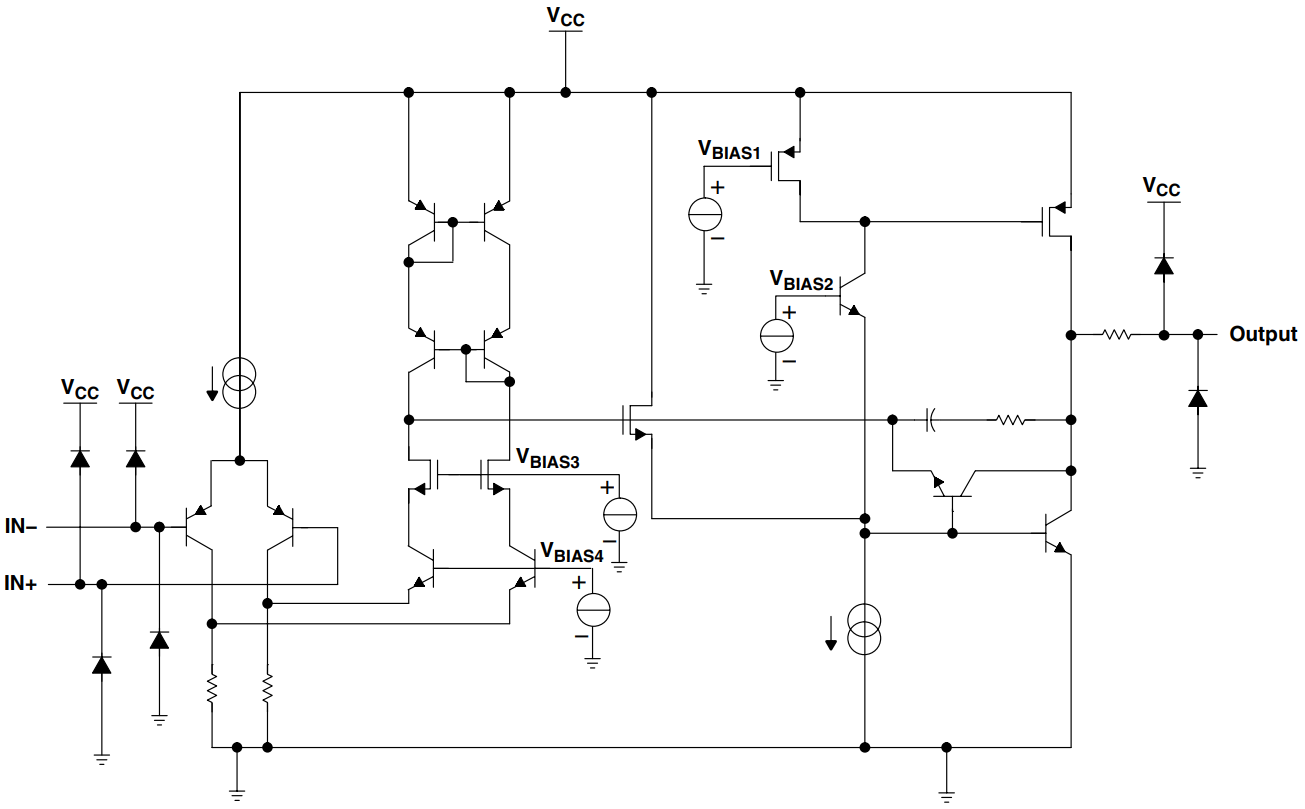

LMV324IPWRE4 Typical application Circuitry

LMV324IPWRE4

The LMV324IPWRE4 is part of Texas Instruments' LMV series, a family of low-voltage rail-to-rail output operational amplifiers (op-amps). This series is designed for applications in battery-powered devices, audio systems, and sensor interfaces, where power efficiency and compact design are crucial.

1. Power Supply Pins: The LMV324IPWRE4 requires a power supply connected to its V+ and V− pins. V+ should be connected to the positive supply voltage, while V− is connected to the negative supply voltage or ground. The supply voltage range should align with the device's specifications as per its datasheet.

2. Ground Connection: If using a single supply, the V− pin should be connected to the ground. A stable ground connection is essential for the proper functioning of the op-amp.

3. Input Pins: The LMV324IPWRE4 has multiple input pins for the inverting (IN−) and non-inverting (IN+) inputs of its internal amplifiers. These pins should be connected to the signal source or other components in your circuit as per your design requirements.

4. Output Pins: Each amplifier within the LMV324IPWRE4 has an output pin (OUT). The output signal, which is the amplified version of the input, is available at these pins. These should be connected to subsequent stages in your circuit, such as another amplifier stage or a load.

5. Decoupling Capacitors: To reduce noise and guarantee steady operation, decoupling capacitors should be used in close proximity to the power supply pins (V+ and V−).

6. Feedback Components: For each operational amplifier within the LMV324IPWRE4, feedback components (like resistors) are typically used to set the gain and configure the amplifier (for example, as an inverting or non-inverting amplifier).

The LMV324IPWRE4 is known for its low-voltage operation and rail-to-rail output capability, which allows the output signal to swing close to the supply rails, maximizing the dynamic range in low-voltage applications.

In summary, the LMV324IPWRE4 from Texas Instruments' LMV series is a versatile operational amplifier suitable for a variety of low-voltage applications. Correctly connecting each pin according to your circuit design is crucial for the optimal functionality of the device. For detailed specifications and application guidance, referring to the LMV324IPWRE4's datasheet is highly recommended.
