Texas Instruments LMV324IDRG4

Part No.:: LMV324IDRG4

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LMV324IDRG4.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14SOIC

In Stock:: 3535

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMV324IDRG4 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
Rail-to-Rail
SlewRate:
1V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
15 nA
Voltage-InputOffset:
1.7 mV
Current-Supply:
410µA (x4 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

LMV324IDRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMV324IDRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMV324IDRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMV324IDRG4 information

Views：

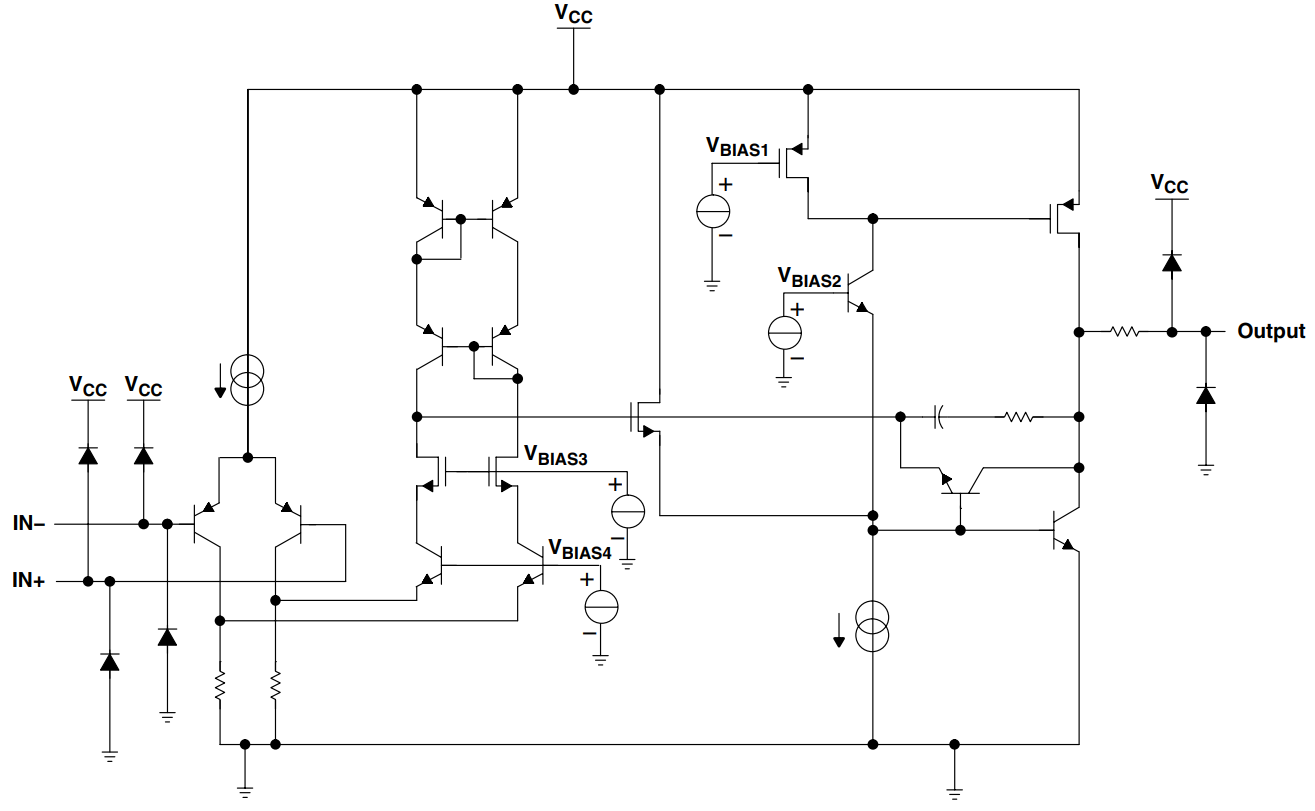

LMV324IDRG4 Typical application Circuitry

LMV324IDRG4

The LMV324IDRG4 is part of Texas Instruments' LMV series, a family of low-voltage operational amplifiers. This particular model, with its low power consumption and rail-to-rail output, is suitable for battery-powered applications, sensor interfaces, and active filtering.

1. Power Supply Pins (V+ and V−): The V+ pin should be connected to the positive power supply, while the V− pin connects to the negative supply or ground. The LMV324IDRG4 operates over a range of supply voltages, as specified in the datasheet.

2. Ground (GND Pin): If the system uses a single supply voltage, the V− pin would typically be connected to the system ground.

3. Input Pins (IN+ and IN− for each amplifier): The LMV324IDRG4 contains four operational amplifiers. A non-inverting input (IN+) and an inverting input (IN−) are included in every amplifier. These should be connected to the signal source and feedback elements according to your circuit design.

4. Output Pins (OUT for each amplifier): Each of the four amplifiers in the LMV324IDRG4 has its own output pin. These pins provide the amplified signal and should be connected to the next stage in your circuit.

5. Bypass Capacitors (optional but recommended): To ensure stability, especially in noisy environments, it's advisable to connect a bypass capacitor between the V+ pin and ground.

6. Feedback Network: The values and arrangement of resistors in the feedback network determine the gain and other properties of each amplifier. Usually, each amplifier's output pin and inverting input pin are linked to this network.

The LMV324IDRG4 is known for its low-voltage operation and rail-to-rail output, making it an efficient choice for a wide range of applications, especially where power efficiency and space are concerns.

In conclusion, the LMV324IDRG4, belonging to Texas Instruments' LMV series, is a versatile operational amplifier ideal for a variety of applications. Properly connecting each pin is crucial for the device to function optimally. For specific configurations and detailed electrical characteristics, consulting the datasheet of the LMV324IDRG4 is highly recommended.
