Texas Instruments LMV321M5

Part No.:: LMV321M5

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LMV321M5.pdf

Description:: IC OPAMP GP 1 CIRCUIT SOT23-5

In Stock:: 7681

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMV321M5 Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
1V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
15 nA
Voltage-InputOffset:
1.7 mV
Current-Supply:
130µA
Current-Output/Channel:
160 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LMV321M5 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMV321M5 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMV321M5 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMV321M5 information

Views：

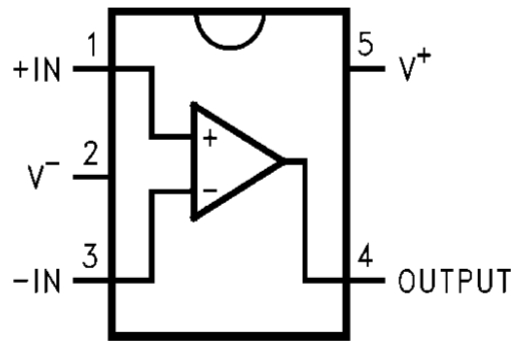

LMV321M5 Typical application Circuitry

LMV321M5

LMV321M5 is a low-voltage, low-power operational amplifier (op-amp) from Texas Instruments, designed for general-purpose applications. It operates with a supply voltage range from 2.7V to 5.5V, making it suitable for battery-operated devices, portable electronics, and other low-power applications. The device comes in a compact SOT-23-5 package, ideal for space-constrained applications.

Application Scenario

A common application for LMV321M5 is in a sensor signal conditioning circuit within a portable device, where it can amplify a small sensor output voltage to a higher level suitable for analog-to-digital conversion or further processing.

Parameter Features

- Supply Voltage Range: 2.7V to 5.5V, compatible with a variety of power sources, including 3.3V and 5V systems.

- Low Power Consumption: Ensures minimal impact on battery life, crucial for portable applications.

- Input Offset Voltage: Low input offset voltage improves accuracy in precision applications.

- Package: Available in a SOT-23-5 package, offering a compact footprint for space-saving designs.

Circuit Design Considerations

When designing a circuit with LMV321M5, it's important to ensure that the input signals are within the supply voltage range, to provide a stable power supply, and to consider the load driven by the output to ensure proper operation.

Detailed Circuit Connection

Power Supply Connection

Attach the LMV321M5's VCC pin (pin 5) to a reliable power supply that operates between 2.7 and 5.5 volts. This connection ensures the op-amp operates within its specified supply voltage range for optimal performance.

Input Signal Conditioning

Apply the sensor output to the non-inverting input (IN+, pin 3). If the sensor signal is very small, a resistor network can be used to set an appropriate bias voltage at this input, ensuring the signal is within the op-amp's input common-mode range.

Feedback Network

Connect a feedback resistor from the output (OUT, pin 1) to the inverting input (IN-, pin 2) and another resistor from IN- to the ground to set the desired gain of the amplifier. The ratio of these resistors determines the amplification factor according to the standard op-amp gain formula.

Output Signal

The OUT pin (pin 1) provides the amplified signal. This output can be connected to subsequent stages, such as an analog-to-digital converter (ADC) or another processing circuit, for further analysis or processing.

Grounding

The GND pin (pin 4) should be connected to the system ground. For the LMV321M5 to function steadily and precisely, a strong ground connection is necessary.

In circuits using LMV321M5, careful attention should be paid to the layout to minimize noise, especially in the input and feedback paths, as noise can significantly affect the accuracy of the signal conditioning. Additionally, proper decoupling of the power supply pin with capacitors close to the op-amp is recommended to maintain stability and reduce susceptibility to power supply fluctuations.
