What is the Additional Feature ?

Name: LMH6643MM-NS
Brand: National Semiconductor
SKU: LMH6643MM-NS
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

National Semiconductor LMH6643MM-NS

Part No.:: LMH6643MM-NS

Manufacturer:: National Semiconductor

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: LMH6643MM-NS.pdf

Description:: IC OPAMP VFB 2 CIRCUIT 8VSSOP

In Stock:: 87150

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMH6643MM-NS Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Bulk
Series:
LMH®
ProductStatus:
Active
AmplifierType:
Voltage Feedback
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
135V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
130 MHz
Current-InputBias:
1.6 µA
Voltage-InputOffset:
1 mV
Current-Supply:
2.7mA (x2 Channels)
Current-Output/Channel:
75 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
12.8 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LMH6643MM-NS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMH6643MM-NS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMH6643MM-NS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMH6643MM-NS information

Views：

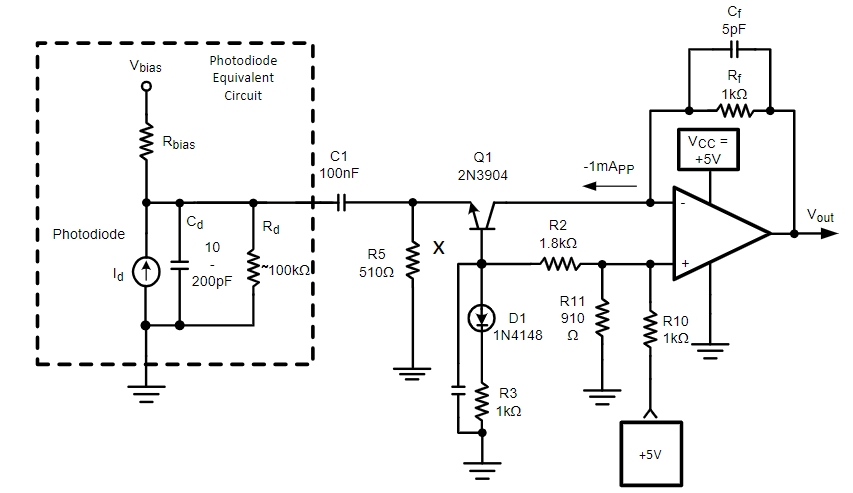

LMH6643MM-NS Typical application Circuitry

LMH6643MM-NS

The LMH6643MM-NS is a versatile, rail-to-rail output, low-power operational amplifier known for its efficiency and performance in a wide range of electronic applications. This op-amp is distinguished by its ability to operate effectively across a broad spectrum of conditions, making it an ideal choice for designers looking for flexibility and reliability.

Broad Dynamic Range: Rail-to-Rail Output

The LMH6643MM-NS boasts a rail-to-rail output, which significantly enhances the dynamic range of the signals it can process. This feature is particularly beneficial in applications where the supply voltage is limited, as it allows for maximum signal amplitude.

Efficient Functioning: Minimal Power Usage

The LMH6643MM-NS, with its low power consumption, is a great option for battery-powered devices or any application where energy saving is a top priority. The performance of the op-amp is unaffected by its efficiency, which makes it a useful part in designs that are power-sensitive.

Fast Signal Processing: High Slew Rate

With its high slew rate, the LMH6643MM-NS is capable of fast signal processing, making it suitable for applications requiring quick response times, such as audio processing or signal conditioning in measurement equipment.

Application Scenario: Driving an ADC Input

A practical application for the LMH6643MM-NS is in conditioning signals to drive the input of an Analog-to-Digital Converter (ADC), a common requirement in digital signal processing systems.

Circuit Implementation:

- Signal Conditioning: Connect the signal source to Pin 3 (Non-Inverting Input) through a resistor to limit the current and protect the op-amp input.

- Feedback Loop: Establish a feedback network between Pin 6 (Output) and Pin 2 (Inverting Input) with a resistor, setting the desired gain level for signal amplification.

- Filtering: Add a low-pass filter between the output (Pin 6) and the ADC input to reduce high-frequency noise, using a capacitor in parallel with the feedback resistor.

Design Considerations:

- Gain Accuracy: Precisely select the feedback and input resistors to achieve the accurate gain necessary for optimal ADC performance.

- Power Supply Decoupling: Use decoupling capacitors close to the op-amp's power supply pins to minimize power supply noise, ensuring a clean, stable operation.

- Bandwidth and Noise: Balance the bandwidth and noise by choosing appropriate values for the feedback resistor and filter capacitor, optimizing the signal-to-noise ratio (SNR) for the ADC.

- Thermal Management: Although the LMH6643MM-NS is designed for low power consumption, consider thermal issues in high-gain applications or environments with limited air circulation.

Incorporating the LMH6643MM-NS into a signal conditioning circuit for an ADC input demonstrates its capability to enhance signal quality, ensuring accurate digital representation of analog signals. By carefully addressing gain accuracy, power supply decoupling, bandwidth versus noise, and thermal management, designers can leverage the operational amplifier's features to achieve high precision and reliability in their digital signal processing systems. The LMH6643MM-NS emerges as a robust solution for a multitude of applications, characterized by its efficiency, fast response, and broad dynamic range, suitable for advancing electronic designs.

LMH6643MM-NS FAQ

1. How to order LMH6643MM-NS on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that LMH6643MM-NS is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the LMH6643MM-NS. All suppliers must pass our qualification reviews before they can publish their products including LMH6643MM-NS on icwhale.com; we pay more attention to the channels and quality of LMH6643MM-NS products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the LMH6643MM-NS price and inventory displayed accurate?

The price and inventory of LMH6643MM-NS fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of LMH6643MM-NS?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the LMH6643MM-NS we delivered, we will accept the replacement or return of the LMH6643MM-NS only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of LMH6643MM-NS.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
