Texas Instruments LMH6642MFX/NOPB

Part No.:: LMH6642MFX/NOPB

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LMH6642MFX/NOPB.pdf

Description:: IC OPAMP VFB 1 CIRCUIT SOT23-5

In Stock:: 3317

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMH6642MFX/NOPB Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
Voltage Feedback
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
135V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
130 MHz
Current-InputBias:
1.6 µA
Voltage-InputOffset:
1 mV
Current-Supply:
2.7mA
Current-Output/Channel:
75 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
12.8 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LMH6642MFX/NOPB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMH6642MFX/NOPB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMH6642MFX/NOPB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMH6642MFX/NOPB information

Views：

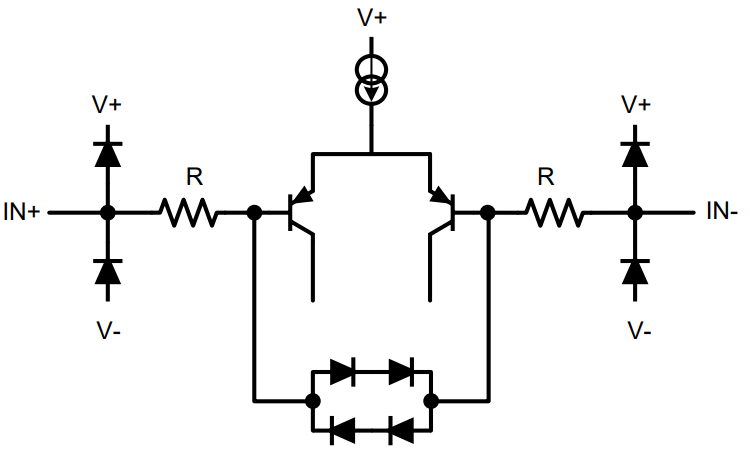

LMH6642MFX/NOPB Typical application Circuitry

LMH6642MFX/NOPB

The LMH6642MFX/NOPB is a high-performance operational amplifier from Texas Instruments, belonging to their LMH6642 series. This op-amp is characterized by its low power consumption and high-speed capabilities, making it a suitable choice for a wide range of applications, including active filters, ADC buffers, and portable devices.

1. Voltage Supply Pins: A positive supply voltage (V+) and a negative supply voltage, often known as ground (V−), are needed for the chip. The LMH6642MFX/NOPB operates efficiently within a supply voltage range of 2.7V to 12V, accommodating various application needs.

2. Input Pins: The operational amplifier has two input pins – the non-inverting input (IN+) and the inverting input (IN−). The IN+ pin receives the signal you want to amplify, while the IN− pin is typically connected to a feedback loop.

3. Output Pin: The output (OUT) of the LMH6642MFX/NOPB delivers the amplified signal. It's important to ensure that the connected load matches the output drive capability of the op-amp.

4. Feedback Network: Designing the feedback network involves connecting resistors between the OUT pin and the IN− pin. These resistors' values are very important since they determine the amplifier's gain.

5. Bypass Capacitor: For stable operation, especially in noisy environments, it's recommended to use a bypass capacitor between the V+ pin and ground.

6. Decoupling Capacitors: These capacitors, placed close to the power supply pins, help in minimizing power supply noise and ripple, thus ensuring smoother operation.

The LMH6642MFX/NOPB's ability to operate with rail-to-rail output is particularly beneficial in scenarios where maximizing the dynamic range is crucial, especially in low-voltage applications. Its design is optimized to provide high-speed performance while maintaining low power consumption, making the LMH6642MFX/NOPB a versatile and efficient choice for both battery-powered and stationary electronic applications.

In conclusion, the LMH6642MFX/NOPB is a robust and flexible component in the LMH6642 series, well-suited for a variety of electronic applications requiring high speed and efficiency. When integrating this op-amp into a circuit, careful consideration of the connections to each pin is vital for achieving optimal performance and reliability. Refer to the datasheet for specific electrical characteristics and maximum ratings to ensure safe and effective usage.
