Texas Instruments LMH6642MF

Part No.:: LMH6642MF

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LMH6642MF.pdf

Description:: IC OPAMP VFB 1 CIRCUIT SOT23-5

In Stock:: 3402

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMH6642MF Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Not For New Designs
AmplifierType:
Voltage Feedback
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
135V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
130 MHz
Current-InputBias:
1.6 µA
Voltage-InputOffset:
1 mV
Current-Supply:
2.7mA
Current-Output/Channel:
75 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
12.8 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LMH6642MF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMH6642MF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMH6642MF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMH6642MF information

Views：

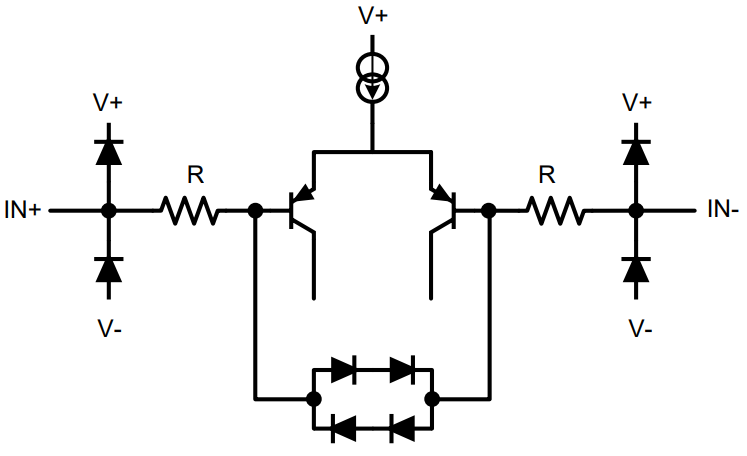

LMH6642MF Typical application Circuitry

LMH6642MF

The LMH6642MF is a model within the LMH6642 series, which is a range of high-performance, rail-to-rail output operational amplifiers from Texas Instruments. These op-amps are designed for a wide range of applications due to their high speed, low distortion, and the ability to operate from a single supply voltage.

1. V+ (Pin 5): This pin is the positive power supply connection. It should be connected to the voltage source within the operational range specified for the LMH6642MF, which is typically between 2.7V and 12V.

2. V− (Pin 4): This pin is the negative power supply connection. In single-supply operations, this pin is connected to the ground. The negative voltage source is linked to it in dual-supply systems.

3. Output (Pin 1): This pin provides the output signal from the op-amp. The LMH6642MF features a rail-to-rail output, which should be connected to the next stage in your circuit that requires the amplified signal.

4. Inverting Input (Pin 2): This pin is the inverting input and is used for signal processing. It is typically connected to a feedback resistor in amplifier configurations to set the gain.

5. Non-Inverting Input (Pin 3): This pin is the non-inverting input and receives the signal you wish to amplify.

6. Decoupling Capacitors: Place a decoupling capacitor close to the power supply pins to minimize power supply noise. This is often a small ceramic capacitor, such as 0.1 µF.

7. Feedback Components: Select the feedback resistors for the inverting input to achieve the desired gain while maintaining stability and bandwidth.

8. Bypassing the Power Supply: A larger capacitor, such as 10 µF, may be used in conjunction with the smaller decoupling capacitor to provide additional power supply bypassing.

9. Signal Path Layout: Keep the signal path short and direct, especially at the inputs and outputs, to minimize parasitic capacitance and inductance effects.

In summary, the LMH6642MF from the LMH6642 series is a rail-to-rail output op-amp known for its speed and low distortion, suitable for applications requiring a single or dual supply operation. Proper use in a circuit requires careful consideration of power supply connections, decoupling strategies, feedback network design, and overall circuit layout.
