Texas Instruments LMC7101BIM5X

Part No.:: LMC7101BIM5X

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LMC7101BIM5X.pdf

Description:: IC OPAMP GP 1 CIRCUIT SOT23-5

In Stock:: 3953

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMC7101BIM5X Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Not For New Designs
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
1.1V/µs
GainBandwidthProduct:
1.1 MHz
-3dbBandwidth:
-
Current-InputBias:
1 pA
Voltage-InputOffset:
110 µV
Current-Supply:
800µA
Current-Output/Channel:
50 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
15.5 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LMC7101BIM5X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMC7101BIM5X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMC7101BIM5X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMC7101BIM5X information

Views：

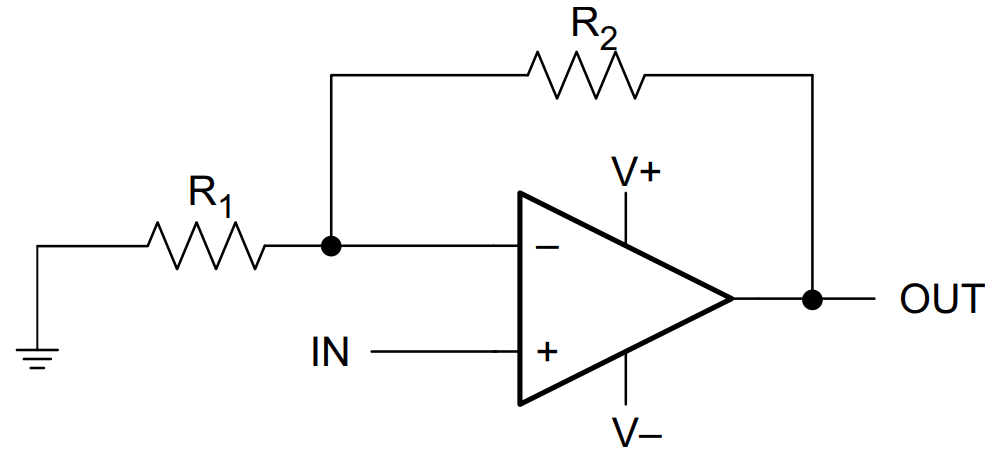

LMC7101BIM5X Typical application Circuitry

LMC7101BIM5X

The LMC7101BIM5X is a model within the LMC7101 series, which comprises ultra-small, low-power operational amplifiers (op-amps). This series is particularly known for its tiny physical size, making it an excellent choice for space-constrained applications, as well as its low power consumption and wide input common-mode voltage range.

1. V+ (Pin 5): This pin connects to the positive power supply. The LMC7101BIM5X operates across a range of supply voltages, and the specific operating range should be checked in the datasheet to match the requirements of your application.

2. V− (Pin 4): This pin usually connects to ground in single-supply operations. In dual-supply systems, it is connected to the negative voltage supply.

3. Output (Pin 1): This pin provides the output of the op-amp. It needs to be connected to the part of the circuit where the processed signal is required. The output characteristics, such as voltage swing and current capability, are detailed in the datasheet.

4. Inverting Input (Pin 2): The op-amp's inverting input is located on this pin. In typical amplifier configurations, it is connected to the output via a feedback network, which defines the gain of the amplifier.

5. Non-Inverting Input (Pin 3): The non-inverting input pin is this one. The input signal that needs to be amplified is usually applied to this pin.

6. Power Supply Decoupling: Use decoupling capacitors close to the power supply pins (V+ and V−) to stabilize the voltage and minimize noise. These capacitors usually consist of a combination of larger electrolytic and smaller ceramic types.

7. Input Biasing: In single-supply configurations, it is important to bias the non-inverting input appropriately, especially when handling AC signals, to keep the output within the operational range.

8. Feedback Network: The feedback network connected between the output and the inverting input should be carefully designed to achieve the desired amplifier gain while maintaining stability.

9. Circuit Layout: The layout should be carefully planned to minimize noise and interference, especially in high-frequency or precision applications.

In conclusion, the LMC7101BIM5X, a member of the LMC7101 series, is a compact and efficient operational amplifier suitable for a wide range of applications. Proper implementation requires attention to the power supply, input biasing, feedback components, and the overall design of the circuit.
