Texas Instruments LMC6482IMMX

Part No.:: LMC6482IMMX

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: LMC6482IMMX.pdf

Description:: IC CMOS 2 CIRCUIT 8VSSOP

In Stock:: 3142

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMC6482IMMX Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Not For New Designs
AmplifierType:
CMOS
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
1.3V/µs
GainBandwidthProduct:
1.5 MHz
-3dbBandwidth:
-
Current-InputBias:
0.02 pA
Voltage-InputOffset:
110 µV
Current-Supply:
1.3mA (x2 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
15.5 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LMC6482IMMX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMC6482IMMX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMC6482IMMX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMC6482IMMX information

Views：

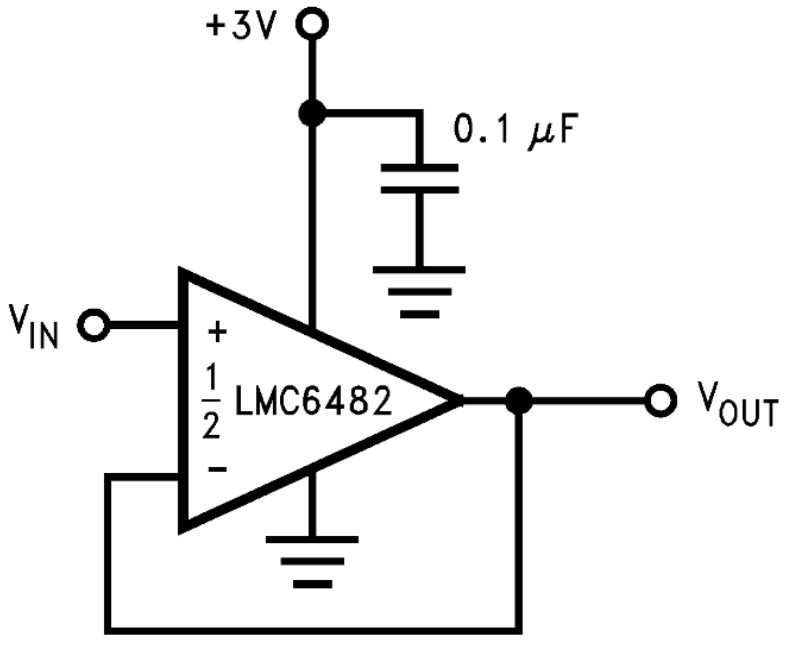

LMC6482IMMX Typical application Circuitry

LMC6482IMMX

The LMC6482IMMX is a part of the LMC6482 series, which consists of CMOS dual operational amplifiers (op-amps). This series is characterized by its rail-to-rail input and output capabilities, low power consumption, and wide supply voltage range. These features make the LMC6482 series particularly suitable for battery-powered devices and a wide range of other applications requiring efficient power usage.

1. V+ (Pin 8): This pin connects to the positive power supply. The LMC6482IMMX can operate over a broad range of supply voltages, but the specific range should be checked in the datasheet for compatibility with your application.

2. V− (Pin 4): When operating with a single supply, this pin is grounded. In dual-supply configurations, it connects to the negative power supply. The choice depends on the specific needs of your application.

3. Output 1 (Pin 1) and Output 2 (Pin 7): These pins provide the output from the two op-amps in the LMC6482IMMX. They are capable of rail-to-rail output, which allows for a wide dynamic range.

4. Non-Inverting Input 1 (Pin 3) and Non-Inverting Input 2 (Pin 5): These are the non-inverting inputs for the two operational amplifiers. The signals to be amplified are typically applied here.

5. Inverting Input 1 (Pin 2) and Inverting Input 2 (Pin 6): These pins are the inverting inputs of the op-amps. In typical amplifier configurations, they are connected to the output through a feedback network, determining the gain of the amplifier.

6. No Connection (NC) Pins (Pins 9 and 10): These pins are not internally connected and should not be connected in your circuit. They are included in the package for uniformity and mechanical stability.

7. Decoupling Capacitors: Use decoupling capacitors close to the V+ and V− pins to stabilize the voltage supply and minimize noise.

8. Input Biasing: For single-supply applications, bias the non-inverting inputs to a proper DC level within the input common-mode range.

9. Feedback Network: Design the feedback network connected between the output and inverting input to achieve the desired amplifier gain while ensuring stability.

10. Circuit Layout: Careful layout planning, especially for high-frequency signals, can minimize noise and prevent oscillations.

In summary, the LMC6482IMMX, a member of the LMC6482 series, is a versatile dual op-amp known for its low power usage and wide dynamic range. Effective use in a circuit requires careful planning of the power supply, input biasing, feedback components, and overall layout.
