Texas Instruments LM8261M5X

Part No.:: LM8261M5X

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LM8261M5X.pdf

Description:: IC OPAMP GP 1 CIRCUIT SOT23-5

In Stock:: 2160

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM8261M5X Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Not For New Designs
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
12V/µs
GainBandwidthProduct:
24 MHz
-3dbBandwidth:
-
Current-InputBias:
1.05 µA
Voltage-InputOffset:
700 µV
Current-Supply:
1.3mA
Current-Output/Channel:
100 mA
Voltage-SupplySpan(Min):
2.5 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LM8261M5X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM8261M5X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM8261M5X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM8261M5X information

Views：

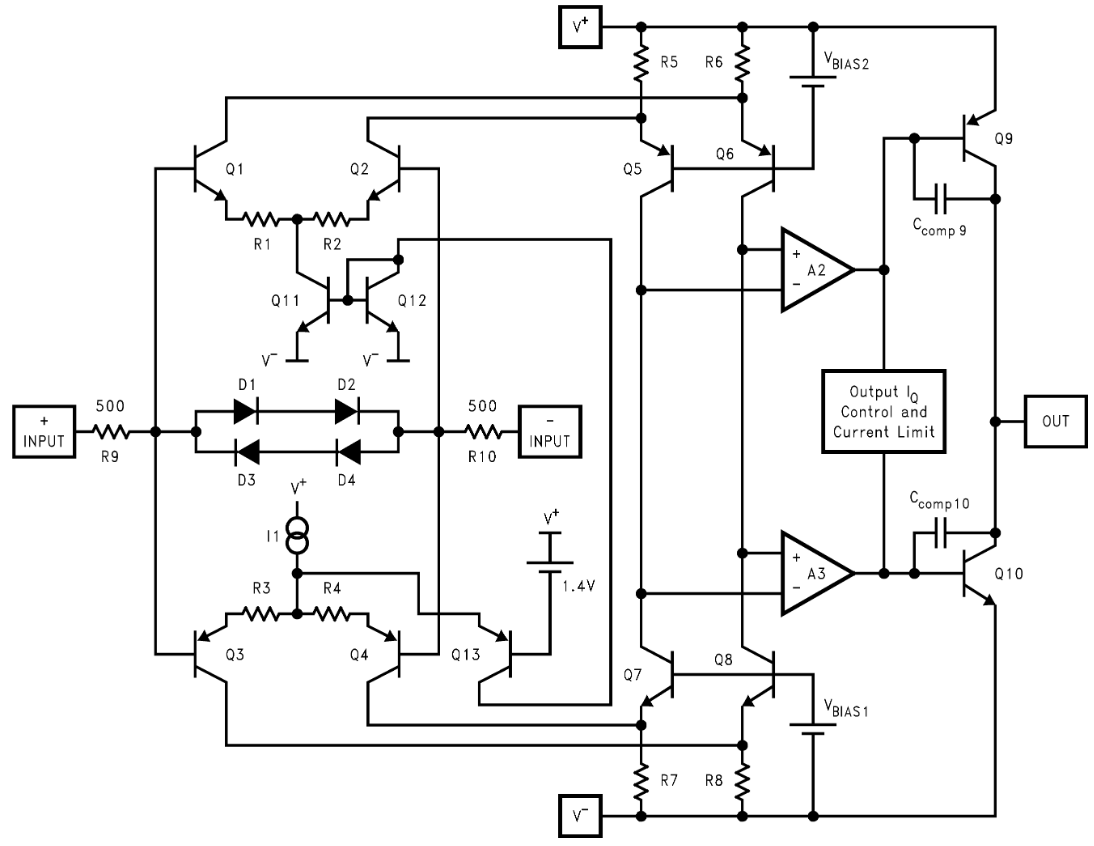

LM8261M5X Typical application Circuitry

LM8261M5X

The LM8261M5X is a high-performance operational amplifier (op-amp) from the LM8261 series. This series is characterized by its rail-to-rail output and ability to drive large capacitive loads, making it suitable for a wide range of applications, including audio processing, active filters, and general-purpose amplification.

1. V+ (Positive Power Supply): This pin should be linked to the power source's positive side. The LM8261M5X operates over a range of supply voltages, so it's essential to refer to the datasheet for the acceptable voltage range and to ensure that it matches your application's requirements.

2. V− (Negative Power Supply or Ground): For a single-supply operation, this pin is connected to the ground. In a dual-supply system, it is linked to the negative power supply. The decision between single and dual supply should be based on the application's unique requirements.

3. Inverting Input (−IN): This pin is the op-amp's inverting input. It is commonly linked to the output via a feedback resistor in standard amplifier setups. The ratio of this resistor to the input resistor sets the gain of the amplifier.

4. Non-Inverting Input (+IN): This is the non-inverting input pin. The voltage applied to this pin is amplified by the op-amp according to the gain set by the feedback network connected to the inverting input.

5. Output (OUT): The output pin provides the amplified signal. The LM8261M5X's rail-to-rail output feature enables the output voltage to swing close to both supply rails, maximizing the dynamic range available in the application.

6. Decoupling Capacitors: It's important to use decoupling capacitors close to the power supply pins (V+ and V−) to stabilize the voltage and minimize noise. A combination of a larger electrolytic capacitor and a smaller ceramic capacitor is often used for effective decoupling.

7. Biasing: In single-supply configurations, proper biasing of the non-inverting input is crucial, especially when handling AC signals, to ensure the output remains within the operational range.

8. Driving Capacitive Loads: The LM8261M5X is capable of driving large capacitive loads. However, the specifics of the load should be matched with the op-amp's specifications as outlined in the datasheet to ensure stability.

9. Circuit Layout: A well-thought-out circuit layout is essential, particularly in high-frequency applications, to minimize noise and avoid undesired oscillations.

In conclusion, the LM8261M5X from the LM8261 series is a versatile op-amp capable of handling a variety of applications, with particular strength in driving capacitive loads and offering a wide dynamic range. Proper implementation involves understanding the circuit requirements and ensuring correct configuration of the external components.
