Texas Instruments LM7301IM5X

Part No.:: LM7301IM5X

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: LM7301IM5X.pdf

Description:: IC OPAMP GP 1 CIRCUIT SOT23-5

In Stock:: 2015

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM7301IM5X Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Not For New Designs
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
1.25V/µs
GainBandwidthProduct:
4 MHz
-3dbBandwidth:
-
Current-InputBias:
103 nA
Voltage-InputOffset:
40 µV
Current-Supply:
720µA
Current-Output/Channel:
11.7 mA
Voltage-SupplySpan(Min):
1.8 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

LM7301IM5X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM7301IM5X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM7301IM5X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM7301IM5X information

Views：

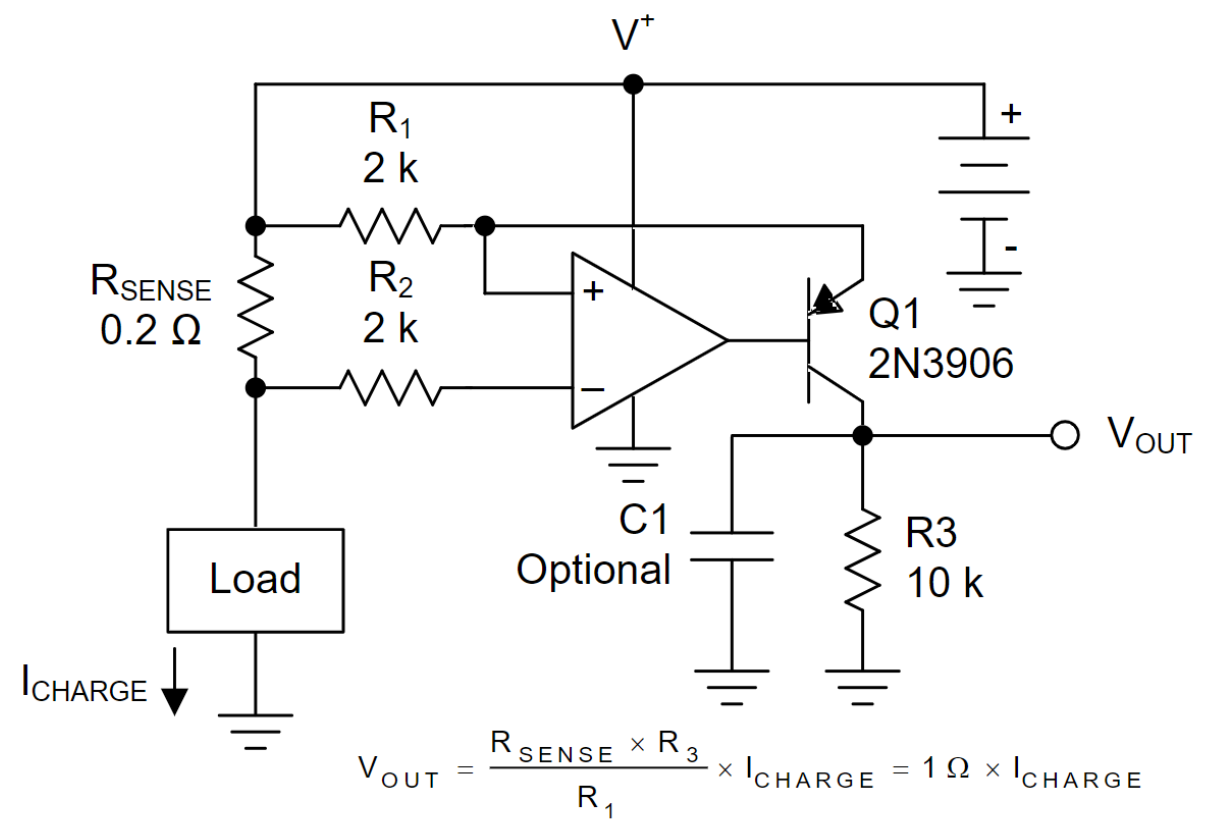

LM7301IM5X Typical application Circuitry

LM7301IM5X

The LM7301IM5X is part of Texas Instruments' LM7301 series, a line of rail-to-rail output operational amplifiers (op-amps). These op-amps are designed for various applications that require a wide input voltage range and low power consumption. The LM7301IM5X is particularly suitable for single-supply operations, making it an ideal choice for battery-operated devices, sensor amplifiers, and portable electronics due to its efficient performance and compact footprint.

1. LM7301IM5X Series Characteristics: The LM7301IM5X is known for its rail-to-rail output capability and low power consumption, making it suitable for a wide range of electronic applications.

2. Pin Configuration and Circuit Integration:

- V+ Pin (Pin 5): This is the positive power supply pin, which should be connected to a voltage source within the operational range of the LM7301IM5X.

- V- Pin (Pin 4): The negative power supply pin. In single-supply operations, it can be connected to the ground.

- Output Pin (Pin 1): The output of the op-amp, providing the amplified signal. This pin is typically connected to the subsequent stage in the circuit or to a load.

- Non-Inverting Input (Pin 3): The non-inverting input pin for the op-amp. Standard input signals are applied here.

- Inverting Input (Pin 2): The inverting input pin of the op-amp, generally used for feedback connections in various configurations.

3. Circuit Design Guidelines for LM7301IM5X:

- Ensure that the power supply voltage (V+ to V-) is within the specified range for the LM7301IM5X to function properly.

- Implement decoupling capacitors near the power supply pins to promote stable operation.

- The layout should minimize the length of input and feedback lines to reduce noise and parasitic effects.

4. Functional Features of LM7301IM5X:

- The LM7301IM5X offers rail-to-rail output, maximizing the dynamic range in low-voltage applications.

- Because of its low power consumption, it is perfect for portable and battery-powered devices.

5. Applications for LM7301IM5X: Suitable for sensor amplification, battery-powered devices, and portable electronics, where efficiency and a wide input voltage range are important.

When integrating the LM7301IM5X into a system, it's essential to consider the application's power supply range, input and output signal characteristics, and the desired amplifier configuration. For comprehensive details on component selection, circuit layout, and operational guidelines, the datasheet and application notes from Texas Instruments for the LM7301IM5X provide essential information, ensuring effective use in various electronic applications.
