Name: LM358MX
Brand: National Semiconductor
SKU: LM358MX
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

National Semiconductor LM358MX

Part No.:: LM358MX

Manufacturer:: National Semiconductor

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM358MX.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 3456

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM358MX Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk
Series:
Automotive, AEC-Q100
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
-
GainBandwidthProduct:
-
-3dbBandwidth:
-
Current-InputBias:
45 nA
Voltage-InputOffset:
2 mV
Current-Supply:
1mA
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

LM358MX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM358MX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM358MX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM358MX information

Views：

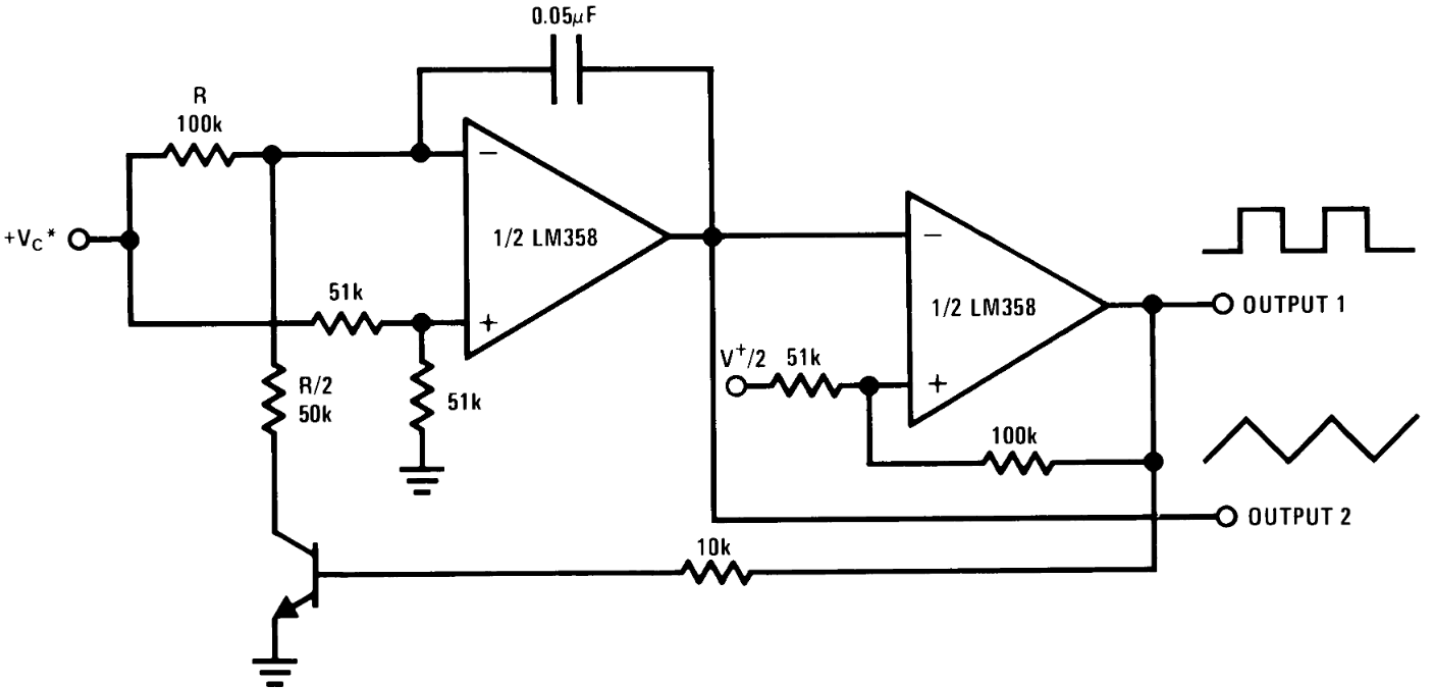

LM358MX Typical application Circuitry

LM358MX

The LM358MX is part of the LM358 series of integrated circuits, distinguished for its dual operational amplifiers (op-amps). This model is specifically designed for robust analog processing across diverse applications, with the capability to operate in both single and dual power supply configurations.

1. Pin 1 (Amplifier A Output - LM358MX): This pin functions as the output for the first op-amp in the LM358MX, where the processed signal from the first amplifier is available.

2. Pin 2 (Inverting Input of Amplifier A - LM358MX): Serving as the inverting input for the first operational amplifier in the LM358MX, this pin is crucial for controlling the phase and amplification of the input signal.

3. Pin 3 (Non-Inverting Input of Amplifier A - LM358MX): This pin is used for the non-inverting input of the first amplifier in the LM358MX, essential in applications where the input signal's phase needs to be preserved.

4. Pin 4 (Ground/Negative Power Supply - LM358MX): The LM358MX uses this pin for grounding or connecting to the negative side of the power supply, which is vital for the operational amplifier's stability.

5. Pin 5 (Non-Inverting Input of Amplifier B - LM358MX): As the non-inverting input for the second op-amp in the LM358MX, this pin is important for maintaining the phase of the input signal.

6. Pin 6 (Inverting Input of Amplifier B - LM358MX): Allocated for the inverting input of the second amplifier, this pin in the LM358MX plays a significant role in signal inversion and amplification.

7. Pin 7 (Output of Amplifier B - LM358MX): The output signal from the second operational amplifier within the LM358MX is obtained from this pin.

8. Pin 8 (Positive Power Supply - LM358MX): This pin, connecting to the positive power supply, is essential for the functioning of the LM358MX.

The LM358MX is commonly employed in various electronic designs, such as voltage followers, active filters, and other complex analog signal processing systems. Proper connection of each pin according to the circuit's specific requirements is critical, with due consideration to the IC's specifications like voltage range and input/output impedance. A deep understanding of each pin's role in the LM358MX is fundamental to effectively utilizing this IC in electronic projects.

LM358MX FAQ

1. How to order LM358MX on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that LM358MX is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the LM358MX. All suppliers must pass our qualification reviews before they can publish their products including LM358MX on icwhale.com; we pay more attention to the channels and quality of LM358MX products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the LM358MX price and inventory displayed accurate?

The price and inventory of LM358MX fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of LM358MX?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the LM358MX we delivered, we will accept the replacement or return of the LM358MX only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of LM358MX.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
