Texas Instruments LM358D-JF

Part No.:: LM358D-JF

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM358D-JF.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 17175

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM358D-JF Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk,Bulk
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
700 kHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
3 mV
Current-Supply:
500µA (x2 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

LM358D-JF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM358D-JF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM358D-JF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM358D-JF information

Views：

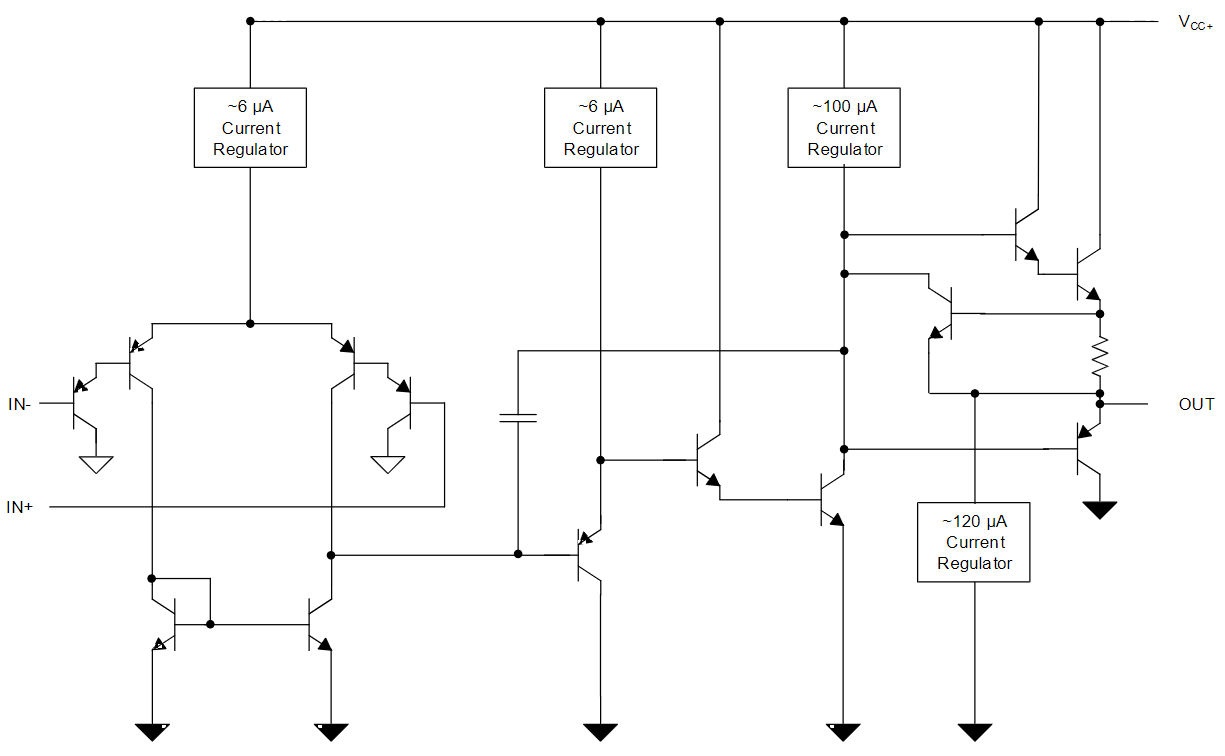

LM358D-JF Typical application Circuitry

LM358D-JF

The LM358D-JF is a variant of the LM358 series, known for its dual operational amplifiers (op-amps). This series is particularly favored for applications requiring low-power operation and a wide input voltage range. The LM358D-JF, like others in this series, is often used in sensor interfacing, signal conditioning, and analog processing applications.

1. Pin 1 (Output 1): This pin serves as the output from the first op-amp in the LM358D-JF, delivering the processed signal based on the inputs of the first amplifier.

2. Pin 2 (Inverting Input 1): As the inverting input of the first op-amp, this pin is where a signal that needs inversion and amplification is connected.

3. Pin 3 (Non-Inverting Input 1): This pin is the non-inverting input for the first op-amp and is used for direct amplification of signals without inversion.

4. Pin 4 (Ground or Negative Voltage Supply): This pin connects to the ground or the negative voltage supply, especially in single-supply operations, forming the reference point for the op-amps.

5. Pin 5 (Non-Inverting Input 2): Serving as the non-inverting input for the second op-amp, this pin is where signals that do not require inversion are applied.

6. Pin 6 (Inverting Input 2): The inverting input for the second op-amp, this pin is used for signals needing inversion in the second amplifier.

7. Pin 7 (Output 2): This is the output pin of the second op-amp, providing the amplified signal from the second amplifier.

8. Pin 8 (Positive Voltage Supply): This pin connects to the positive voltage supply, which powers the LM358D-JF.

When incorporating the LM358D-JF into a circuit, attention should be given to the power supply voltage and the characteristics of input signals to ensure they are within the operational limits of the device. Additionally, the feedback network configuration around each op-amp (involving resistors, capacitors) is crucial for obtaining the desired amplification and stability.

The LM358D-JF is recognized for its dual-amplifier configuration, which is beneficial for compact and efficient electronic designs. It is particularly valued for its ability to operate effectively in a variety of applications, including low-power and single-supply scenarios, making it a versatile and popular choice in the field of electronics.
