Texas Instruments LM358AN

Part No.:: LM358AN

Manufacturer:: Texas Instruments

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: LM358AN.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8DIP

In Stock:: 2538

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM358AN Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
-
GainBandwidthProduct:
1.1 MHz
-3dbBandwidth:
-
Current-InputBias:
45 nA
Voltage-InputOffset:
2 mV
Current-Supply:
1mA
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

LM358AN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM358AN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM358AN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM358AN information

Views：

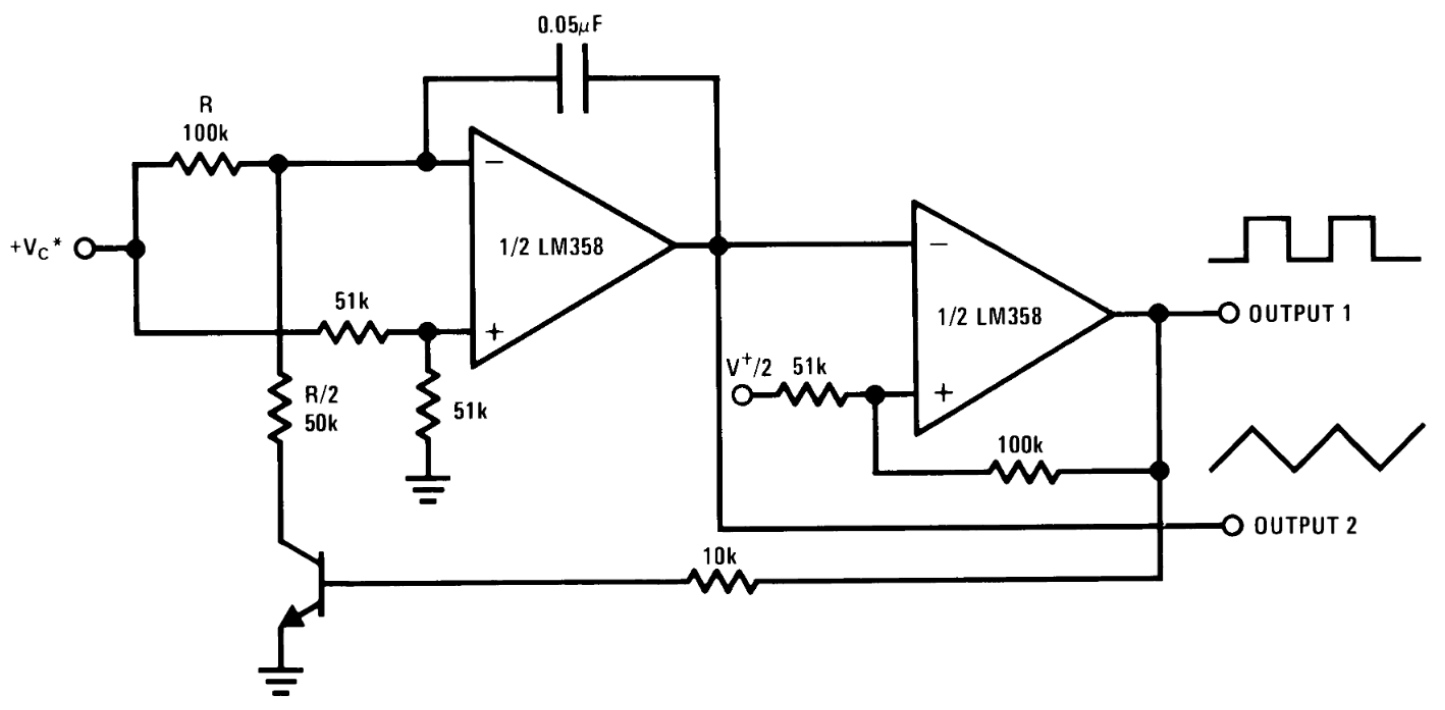

LM358AN Typical application Circuitry

LM358AN

The LM358AN is part of the LM358 series of integrated circuits, distinguished by its dual operational amplifiers (op-amps). This series is particularly well-suited for various electronic applications due to its low power consumption and ability to operate across a wide voltage range. The LM358AN is commonly used in applications such as signal conditioning, sensor interfacing, and analog processing, where its efficiency and reliability are highly valued.

1. Pin 1 (Output 1): This pin functions as the output for the first operational amplifier in the LM358AN, delivering the amplified signal from this op-amp.

2. Pin 2 (Inverting Input 1): As the inverting input of the first op-amp, this pin is where signals requiring inversion and amplification are connected.

3. Pin 3 (Non-Inverting Input 1): This pin serves as the non-inverting input for the first op-amp, used for signals that require amplification without inversion.

4. Pin 4 (V- or Ground): This pin connects to the negative power supply or ground, establishing the reference point for the operational amplifiers, especially important in single-supply operations.

5. Pin 5 (Non-Inverting Input 2): Acting as the non-inverting input for the second op-amp, this pin is where signals not requiring inversion are applied for amplification.

6. Pin 6 (Inverting Input 2): The inverting input for the second operational amplifier, this pin is used for signals that need inversion in the second amplifier.

7. Pin 7 (Output 2): Providing the output from the second op-amp, this pin delivers the amplified signal from the second amplifier.

8. Pin 8 (Positive Voltage Supply): Connected to the positive power supply, this pin powers the LM358AN.

When integrating the LM358AN into a circuit, it is imperative to ensure that the power supply and input signal voltages are within the operational limits of the device. Proper configuration of the feedback network for each op-amp, typically involving resistors and capacitors, is essential for achieving the desired amplification and maintaining circuit stability.

The LM358AN is widely recognized for its dual amplifier configuration, allowing for compact and efficient circuit designs. Its capability to operate effectively in various applications, particularly those requiring low power consumption and single-supply operation, makes it a versatile and popular choice in electronic design.
