Texas Instruments LM324ADRE4

Part No.:: LM324ADRE4

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM324ADRE4.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14SOIC

In Stock:: 3742

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM324ADRE4 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
0.5V/µs
GainBandwidthProduct:
1.2 MHz
-3dbBandwidth:
-
Current-InputBias:
15 nA
Voltage-InputOffset:
2 mV
Current-Supply:
1.4mA (x4 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

LM324ADRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM324ADRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM324ADRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM324ADRE4 information

Views：

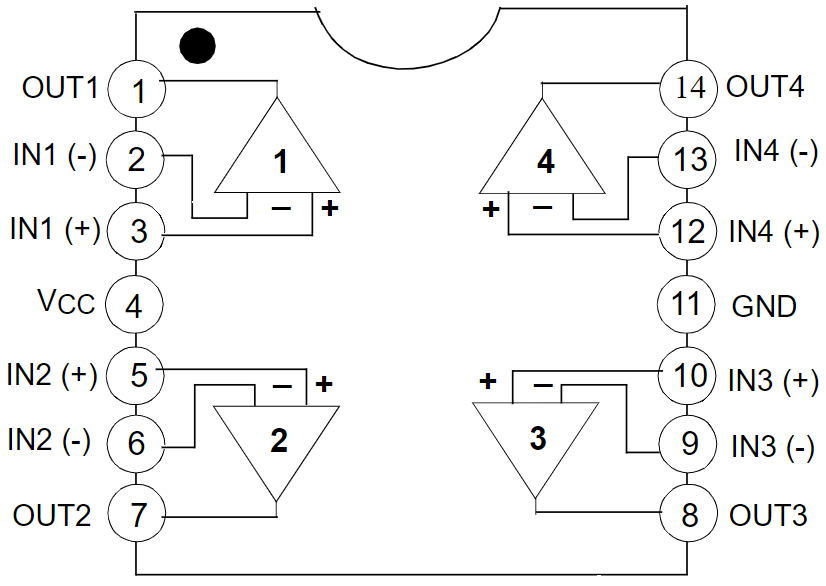

LM324ADRE4 Typical application Circuitry

LM324ADRE4

The LM324ADRE4 is a specific model in the LM324 series of integrated circuits, renowned for its operational amplifiers (op-amps). This series is highly sought after in various electronic applications, particularly for signal amplification, conditioning, and filtering, due to its efficiency and versatility. The LM324ADRE4 is distinctive in its ability to operate with both single and dual power supplies, offering flexibility for diverse electronic circuit designs.

1. Power Supply Connections: The LM324ADRE4 is capable of functioning with either a single or dual power supply. For a single supply configuration, the positive voltage connects to the VCC+ pin, and the ground to the VCC- pin. In a dual supply setup, the positive and negative supply voltages are linked to the VCC+ and VCC- pins, respectively.

2. Input Pin Configuration: Each of the four operational amplifiers within the LM324ADRE4 has two input pins: the inverting input (indicated by a "-" sign) and the non-inverting input (indicated by a "+" sign). These pins serve as the primary points for signal input.

3. Output Pin Arrangement: The LM324ADRE4 features four separate output pins, one for each op-amp. These outputs provide the processed signals, which can be directed to other parts of the circuit for further processing or utilization.

4. Establishing Feedback Loops: To set the operational parameters of the op-amps in the LM324ADRE4, external components such as resistors or capacitors are often employed. These components are connected between the output and input pins to define specific characteristics like amplification levels or filtering properties.

5. Circuit Integration Aspects: When embedding the LM324ADRE4 into a circuit, considerations should include the type of signal processing required, the nature of the input signals, and the overall design goals. The independent configuration capability of each op-amp within the LM324ADRE4 provides considerable flexibility for complex circuit designs.

Designing with the LM324ADRE4 requires meticulous attention to the function and connection of each pin, ensuring that the IC operates efficiently. This model's adaptability makes it a valuable component for a wide array of electronic applications, from simple signal amplification to intricate signal processing systems.
