ON Semiconductor LM324ADR2

Part No.:: LM324ADR2

Manufacturer:: ON Semiconductor

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM324ADR2.pdf

Description:: IC OPAMP QUAD LOW POWER 14SOIC

In Stock:: 3587

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM324ADR2 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
-
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
40 nA
Voltage-InputOffset:
2 mV
Current-Supply:
1.5mA (x4 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

LM324ADR2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM324ADR2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM324ADR2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM324ADR2 information

Views：

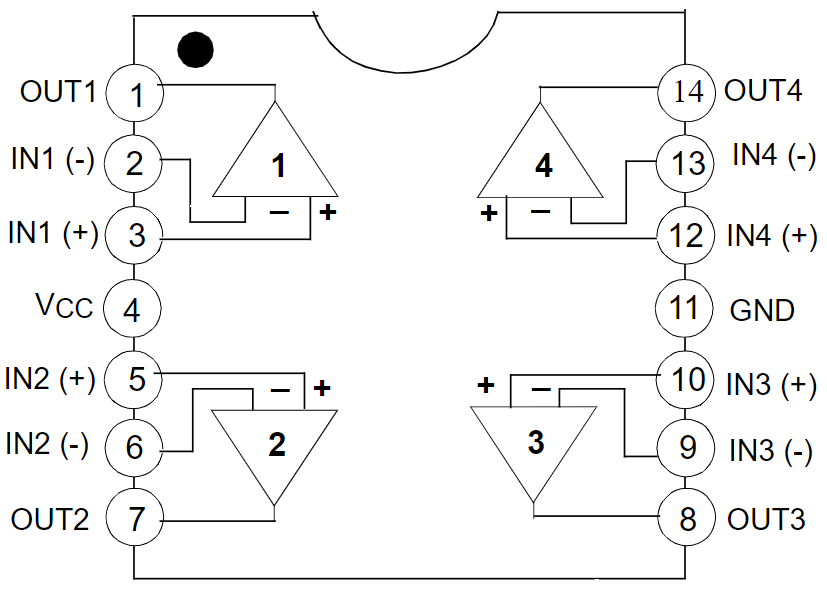

LM324ADR2 Typical application Circuitry

LM324ADR2

The LM324ADR2 is a part of the broader LM324 series of integrated circuits, which are operational amplifiers (op-amps) commonly employed in a variety of electronic applications. These op-amps are well-regarded for their operational efficiency, versatility, and the capability to function with both single and dual power sources. This makes them highly suitable for tasks involving signal amplification, conditioning, and filtering in diverse electronic circuits.

1. Power Supply Connections: It is possible to use the LM324ADR2 with a single or dual power source. In a single supply configuration, the positive voltage is connected to the VCC+ pin, and the ground to the VCC- pin. For a dual supply setup, the positive and negative supply voltages are connected to the VCC+ and VCC- pins, respectively.

2. Input Pin Arrangement: Four operational amplifiers, each with two input pins, are included in the LM324ADR2. These comprise an input that is inverted (shown by the symbol "-") and an input that is not inverted (shown by the symbol "+"). These pins are the primary points for signal input.

3. Output Pin Configuration: There are four separate output pins on the LM324ADR2, corresponding to each op-amp. The processed signals are taken from these outputs, which can then be connected to further stages within the circuit.

4. Feedback Loop Design: External components such as resistors or capacitors are often utilized to set the operational characteristics of the op-amps in the LM324ADR2. These components are typically connected between the output and input pins, defining specific features like gain or filtering properties.

5. Integration into the Circuit: When embedding the LM324ADR2 into a circuit, it is important to consider the requirements of the application, including the types of signals to be processed and the intended outcome. Each op-amp in the LM324ADR2 can be configured independently, allowing for substantial flexibility in circuit design.

Careful planning and accurate implementation of each pin connection are vital to ensure the LM324ADR2 functions optimally. Its adaptability makes it an invaluable component across various electronic applications, ranging from simple amplification to complex signal processing tasks.
