Texas Instruments LM2904PWRE4

Part No.:: LM2904PWRE4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP (0.173, 4.40mm Width)

Datasheet:: LM2904PWRE4.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8TSSOP

In Stock:: 3313

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2904PWRE4 Specifications

Package/Case:
8-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
700 kHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
3 mV
Current-Supply:
500µA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
26 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

LM2904PWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2904PWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2904PWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2904PWRE4 information

Views：

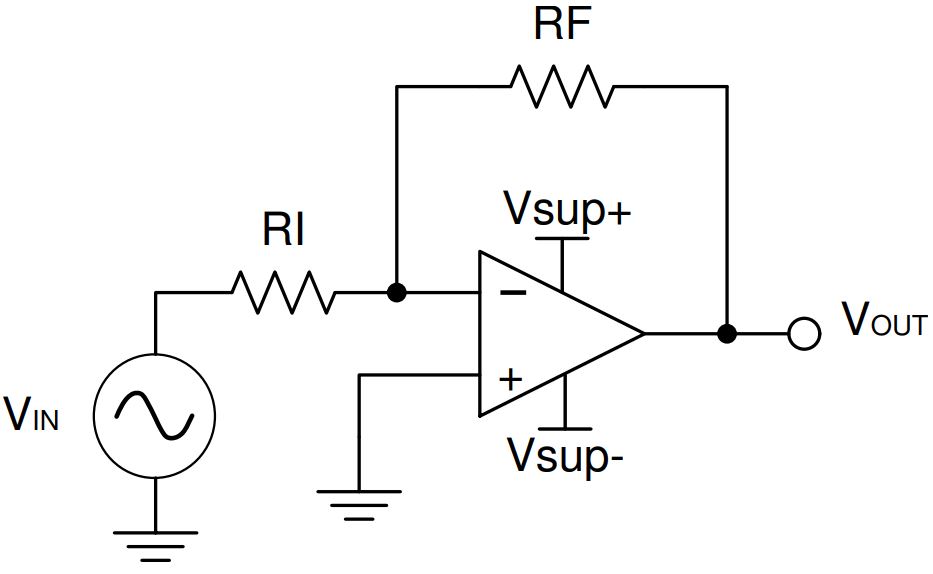

LM2904PWRE4 Typical application Circuitry

LM2904PWRE4

The LM2904PWRE4 is an integral part of the LM2904 series, distinguished by its dual operational amplifiers designed for low-power applications with a wide bandwidth. This variant is specifically engineered to cater to a broad spectrum of electronic needs, from automotive control systems to portable medical devices, highlighting its flexibility and efficiency in power-sensitive environments. The LM2904PWRE4's design facilitates seamless incorporation into diverse circuit frameworks, emphasizing its precision, adaptability, and enduring performance.

1. Dual Output Capability (VOUT1, VOUT2): A notable feature of the LM2904PWRE4 is its dual operational amplifiers, each with a dedicated output pin, VOUT1 and VOUT2. This dual op-amp configuration allows for simultaneous, independent signal processing tasks, such as signal amplification, filtering, or analog comparisons, within a single chip, optimizing board space and enhancing circuit complexity.

2. Configurable Input Stages (IN+ and IN- for each op-amp): The LM2904PWRE4 offers versatile input configurations with two sets of input pins for each amplifier, labeled IN+ (non-inverting input) and IN- (inverting input). These inputs accommodate various signal processing requirements, enabling the amplifiers to be configured for a multitude of applications, from basic signal amplification to complex feedback loop systems.

3. Power Supply Flexibility (VCC+, VCC-): Designed for single or dual power supply operations, the LM2904PWRE4 operates effectively across a wide voltage range. The power supply pins, VCC+ and VCC-, need to be connected to the positive supply and ground (or a negative supply for dual-supply operations), respectively, facilitating the device's integration into systems with varying power supply schemes.

4. Circuit Integration and Pin Arrangement: To integrate the LM2904PWRE4 into a circuit, it is essential to establish connections to the power supply through VCC+ and VCC-, configure the input pins IN+ and IN- based on the desired operational mode, and harness the amplified signals through VOUT1 and VOUT2. The implementation of feedback networks, using resistors or capacitors between the output and input pins, can fine-tune the amplifier's functionality to suit specific design requirements.

5. Performance Optimization Techniques: For optimal performance, particularly in noise-sensitive applications, the LM2904PWRE4 benefits from the addition of bypass capacitors near the power supply pins to ensure a stable and clean power supply. This practice helps to minimize potential noise and interference, ensuring the integrity of the amplified signals.

Integrating the LM2904PWRE4 into an electronic system requires a nuanced understanding of its dual-amplifier setup, precise pin configuration, and the specific demands of the application at hand. The LM2904PWRE4's dual op-amp design, coupled with its energy-efficient operation and signal integrity, makes it a vital component in the development of complex, high-performance electronic systems. The LM2904PWRE4 upholds the LM2904 series' tradition of delivering versatile and reliable solutions for a wide range of signal processing applications in modern electronics.
