Texas Instruments LM2904DRE4

Part No.:: LM2904DRE4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM2904DRE4.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 3543

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2904DRE4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
700 kHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
3 mV
Current-Supply:
500µA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
26 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

LM2904DRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2904DRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2904DRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2904DRE4 information

Views：

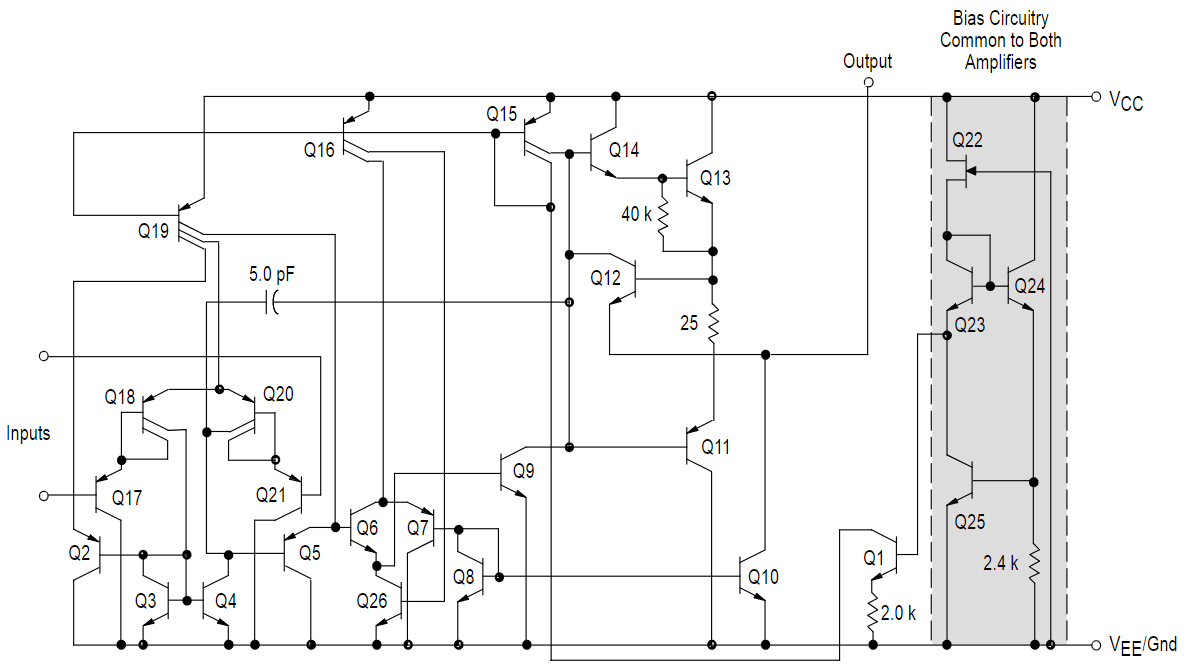

LM2904DRE4 Typical application Circuitry

LM2904DRE4

The LM2904DRE4 is a model in the LM2904 series, which encompasses dual operational amplifiers (op-amps). This series is widely recognized for its versatility and efficiency in applications that require low power consumption and a broad range of operating voltages. The LM2904DRE4, aligning with the characteristics of this series, is tailored for a variety of electronic applications, including sensor interfaces, battery-powered devices, and portable applications.

1. Power Supply Connections: The LM2904DRE4 is typically available in an 8-pin package. For powering the device, pin 8 is connected to the positive supply voltage (Vcc), and pin 4 is for the ground (GND). These connections are essential, whether the IC is operating on a single or dual supply mode.

2. Input Pins for the Op-Amps: The LM2904DRE4 contains two operational amplifiers. Each op-amp has an inverting input (pin 2 for the first op-amp and pin 6 for the second) and a non-inverting input (pin 3 for the first op-amp and pin 5 for the second). These inputs are where the signals to be amplified are connected.

3. Output Pin Configuration: The outputs of the op-amps in the LM2904DRE4 are located at pin 1 for the first op-amp and pin 7 for the second. These outputs can be connected to other components in the circuit or to the next stage, depending on the specific requirements of the application.

4. Configuring the Op-Amps: To set up the LM2904DRE4, input signals are applied to the inverting or non-inverting inputs, and feedback loops are connected as needed to control the gain and bandwidth of the op-amps. The specific configuration will vary depending on whether non-inverting, inverting, or differential amplification is desired.

5. Enhancing Circuit Stability: It is recommended to use bypass capacitors, typically around 0.1 µF, near the power supply pins to reduce noise and improve the stability of the circuit.

6. Protective Measures for the IC: Including protective components such as transient voltage suppressors is advisable to protect the LM2904DRE4 from electrical disturbances, especially in environments where such conditions might occur.

Designing a circuit with the LM2904DRE4 requires careful consideration of these aspects to ensure effective and reliable operation. Its precision in signal amplification and versatility across various conditions make the LM2904DRE4 a valuable component in a wide array of electronic applications. For accurate and effective use, always consult the LM2904DRE4's manufacturer datasheet, which provides comprehensive specifications and guidelines for connections.
