STMicroelectronics LM2904D

Part No.:: LM2904D

Manufacturer:: STMicroelectronics

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM2904D.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 1267

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2904D Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Single-Ended
SlewRate:
0.6V/µs
GainBandwidthProduct:
700 kHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
2 mV
Current-Supply:
700µA
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LM2904D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2904D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2904D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2904D information

Views：

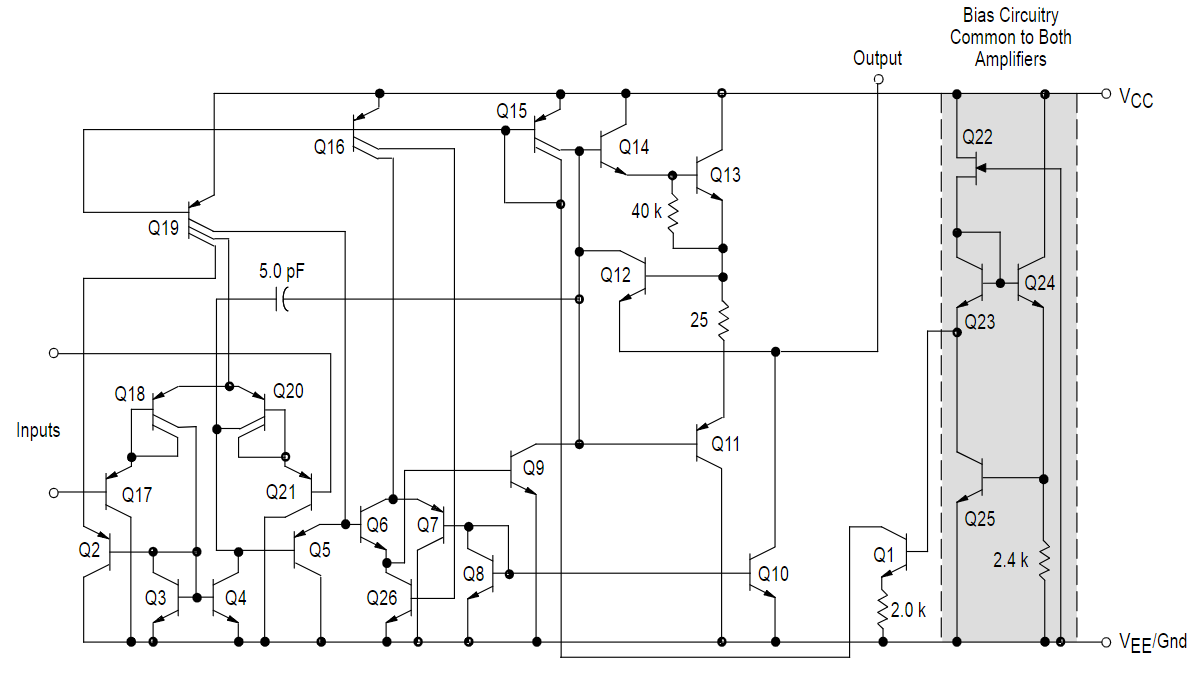

LM2904D Typical application Circuitry

LM2904D

The LM2904D is a model in the LM2904 series, which comprises dual operational amplifiers (op-amps). This series is widely acknowledged for its versatility and efficiency, particularly in applications requiring low power consumption and wide operating voltage ranges. The LM2904D, aligning with the series' attributes, is designed for various electronic applications, including sensor interfaces, battery-powered devices, and portable applications.

1. Power Supply Connections: The LM2904D typically comes in an 8-pin package. For powering the device, pin 8 is used for the positive supply voltage (Vcc), and pin 4 is connected to the ground (GND). These connections are fundamental for the IC's operation, whether it's used in a single or dual supply configuration.

2. Input Pins for the Op-Amps: The LM2904D contains two operational amplifiers. Each op-amp has an inverting input (pin 2 for the first op-amp, pin 6 for the second) and a non-inverting input (pin 3 for the first op-amp, pin 5 for the second). These inputs are where the signals for amplification are connected.

3. Output Pin Configuration: The outputs of the op-amps in the LM2904D are located at pin 1 for the first op-amp and pin 7 for the second. These outputs can be connected to other components or stages in the circuit, depending on the specific requirements of the application.

4. Setting Up the Op-Amps: In configuring the LM2904D, the input signals are applied to the inverting or non-inverting inputs, and the feedback mechanism (if any) is connected to control the gain and bandwidth of the op-amps. The configuration can vary depending on whether non-inverting, inverting, or differential amplification is desired.

5. Circuit Stability and Noise Reduction: Implementing bypass capacitors, typically around 0.1 µF, near the power supply pins is recommended to reduce noise and improve the stability of the circuit.

6. Protective Measures for the IC: Including protective elements like transient voltage suppressors can be important to protect the LM2904D from electrical disturbances, especially in environments where such issues might arise.

Integrating the LM2904D into a circuit necessitates careful attention to these details to ensure effective and reliable functionality. Its ability to amplify signals accurately and its adaptability in various conditions make the LM2904D a valuable component in diverse electronic applications. For precise and effective use, always consult the LM2904D's manufacturer datasheet, which provides comprehensive specifications and detailed guidelines for connections.
