Texas Instruments LM2902PWRG3

Part No.:: LM2902PWRG3

Manufacturer:: Texas Instruments

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: LM2902PWRG3.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14TSSOP

In Stock:: 2227

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2902PWRG3 Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
0.5V/µs
GainBandwidthProduct:
1.2 MHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
3 mV
Current-Supply:
1.4mA (x4 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
26 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

LM2902PWRG3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2902PWRG3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2902PWRG3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2902PWRG3 information

Views：

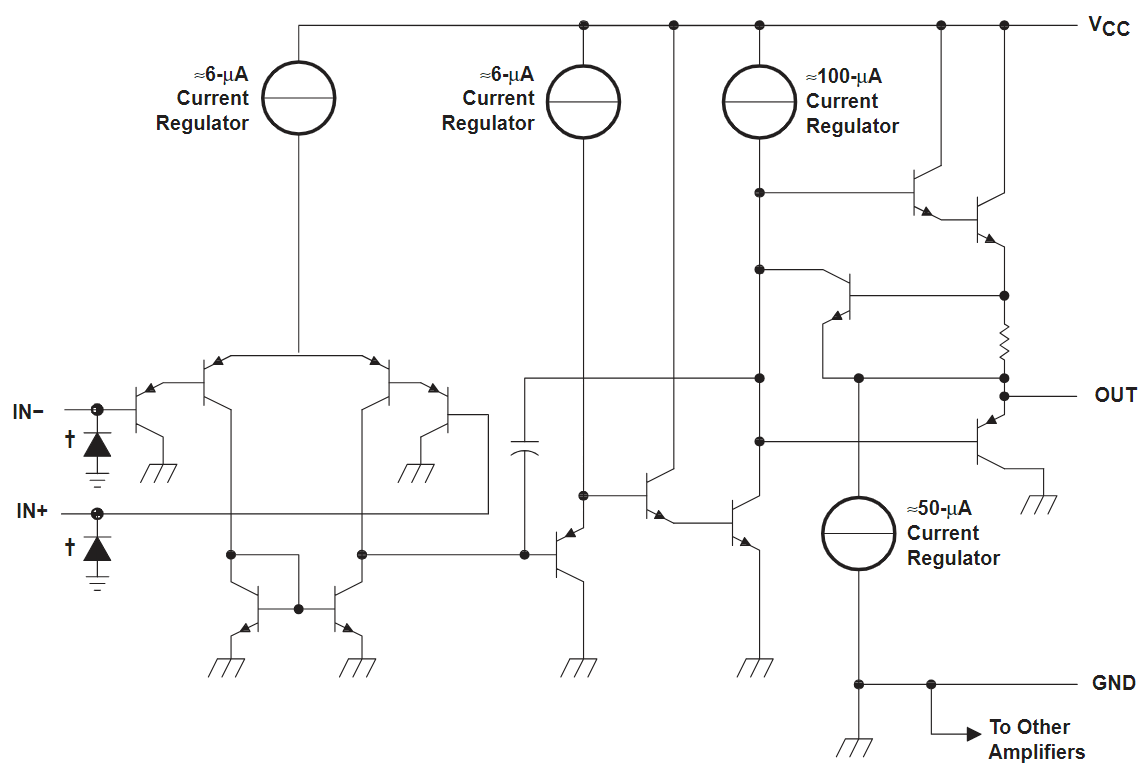

LM2902PWRG3 Typical application Circuitry

LM2902PWRG3

The LM2902PWRG3 is a specific iteration within the LM2902 series, which encompasses quadruple operational amplifiers. These amplifiers are well-known for their low power consumption and capability to function across a vast range of supply voltages, making the LM2902PWRG3 an adaptable and efficient choice for a myriad of electronic applications.

1. Power Supply Connections: The LM2902PWRG3 is typically encased in a 14-pin package. For powering this IC, pin 4 is the positive supply (Vcc) connection, and pin 11 is designated for the ground (GND). These connections are vital, regardless of whether the IC is operating on a single or dual supply system.

2. Input Pin Configuration: Within the LM2902PWRG3, each of the four operational amplifiers is equipped with an inverting input (pins 2, 6, 9, 13) and a non-inverting input (pins 3, 5, 10, 12). These inputs are where the signals for amplification are connected.

3. Amplifier Gain Adjustment: Gain in the LM2902PWRG3 is set using external resistors. A typical arrangement entails attaching a resistor to the inverting input from each output pin (pins 1, 7, 8, 14) and to the ground from the inverting input. The gain is determined by the ratio of these resistors.

4. Output Pin Connectivity: The outputs for the LM2902PWRG3 are located at pins 1, 7, 8, and 14. These outputs can be linked directly to a load or to the following step of the circuit, depending on the application.

5. Circuit Stability via Bypass Capacitors: To enhance circuit stability and reduce noise, it is advisable to use bypass capacitors, typically around 0.1 µF, near the power supply pins.

6. Protective Measures for the IC: When the LM2902PWRG3 is used in environments susceptible to electrical disturbances like transient voltages, including protective components such as diodes is recommended for the IC's safety.

Incorporating the LM2902PWRG3 into a circuit demands a detailed understanding of these aspects to ensure efficient and reliable operation. The flexibility of the LM2902PWRG3 in handling various signal types and its adaptability in different circuit configurations make it a valuable component for amplification and signal processing in electronic applications. For precise and effective use, always consult the LM2902PWRG3's manufacturer datasheet, which provides specific guidelines and specifications.
