ON Semiconductor LM2902DTBG

Part No.:: LM2902DTBG

Manufacturer:: ON Semiconductor

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: LM2902DTBG.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14TSSOP

In Stock:: 1023

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2902DTBG Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
-
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
90 nA
Voltage-InputOffset:
2 mV
Current-Supply:
-
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

LM2902DTBG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2902DTBG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2902DTBG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2902DTBG information

Views：

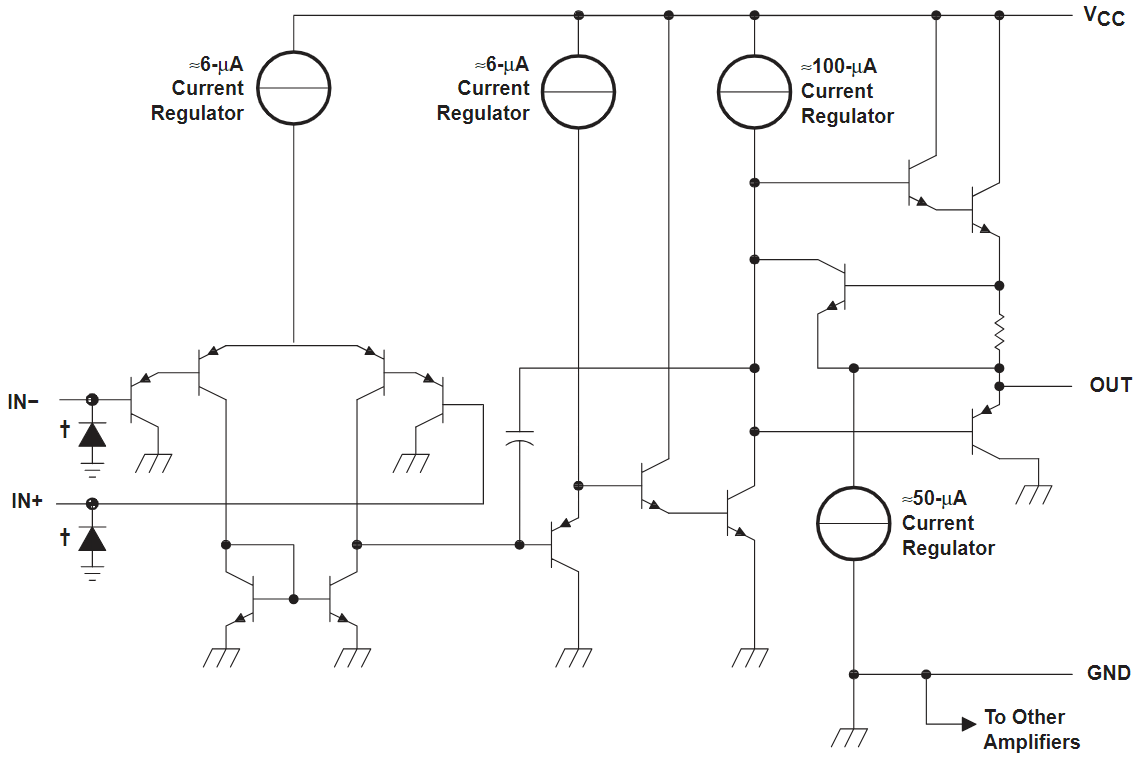

LM2902DTBG Typical application Circuitry

LM2902DTBG

The LM2902DTBG is a part of the LM2902 series, which encompasses quadruple operational amplifiers. These amplifiers are well-regarded for their ability to operate with low power consumption and across a wide range of voltages. The LM2902DTBG, specifically, is designed to be versatile, catering to a variety of electronic applications, including both battery-powered and line-operated devices.

1. Powering the Device: The LM2902DTBG typically comes in a 14-pin package. For its power supply, pin 4 is allocated for the positive voltage supply (Vcc), and pin 11 serves as the ground (GND) connection. These are essential for powering the IC, whether it operates on a single or a dual supply system.

2. Input Configuration: Within the LM2902DTBG, each of the four operational amplifiers possesses an inverting input (pins 2, 6, 9, 13) and a non-inverting input (pins 3, 5, 10, 12). These are essential for obtaining the input signals that need to be processed or amplified.

3. Adjustment of Gain and Feedback: To set the desired level of amplification, external resistors are used. Typically, in a standard amplifier configuration, a resistor connects each output pin (1, 7, 8, 14) to its corresponding inverting input, and another resistor from the inverting input to the ground. The ratio of these resistors yields the amplification factor.

4. Output Connections: The LM2902DTBG has its outputs at pins 1, 7, 8, and 14. These can be connected to the next stage in the circuit or directly to a load, as required by the specific application.

5. Circuit Stability and Noise Reduction: Implementing bypass capacitors, generally around 0.1 µF, near the power supply pins is recommended. These capacitors aid in filtering out noise, thus stabilizing the circuit.

6. Incorporating Protective Components: When used in environments with potential electrical fluctuations or transient voltages, it's advisable to include protective elements like diodes to ensure the safety and durability of the LM2902DTBG.

Designing circuits with the LM2902DTBG necessitates careful consideration of these details for effective functioning. The LM2902DTBG's adaptability in handling different signal types and its suitability for a variety of circuit configurations make it a versatile choice for amplification and signal processing in a wide array of electronic applications. For accurate and reliable usage, it's always important to consult the manufacturer's datasheet for the LM2902DTBG, which provides specific guidelines and specifications.
