Rohm Semiconductor LM2902DT

Part No.:: LM2902DT

Manufacturer:: Rohm Semiconductor

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM2902DT.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14SOPJ

In Stock:: 3657

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2902DT Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
800 kHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
1 mV
Current-Supply:
1mA
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LM2902DT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2902DT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2902DT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2902DT information

Views：

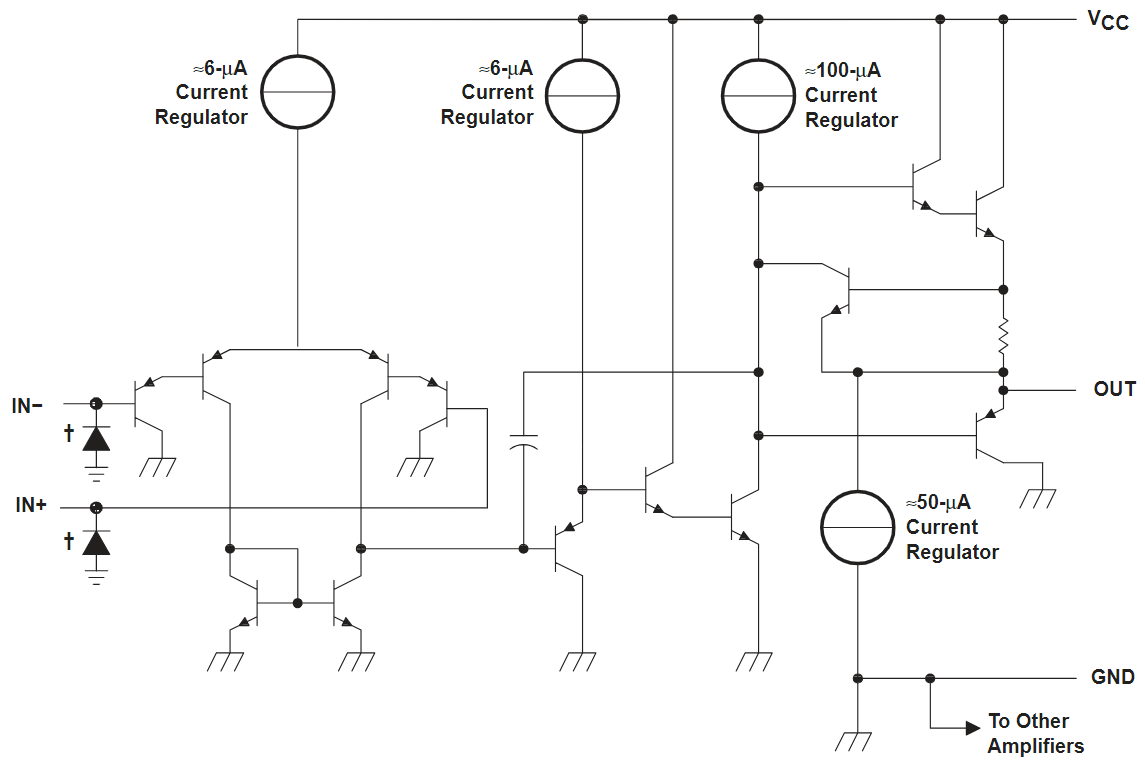

LM2902DT Typical application Circuitry

LM2902DT

The LM2902DT is a notable member of the LM2902 series, a collection of quadruple operational amplifiers. These amplifiers are widely recognized for their efficient power usage and their ability to function across a broad range of supply voltages. Such characteristics make the LM2902DT particularly suited for both battery-operated and conventional wired electronic devices.

1. Power Connections: The LM2902DT is typically encapsulated in a 14-pin package. For powering this IC, pin 4 is designated for the positive supply (Vcc), and pin 11 is for the ground (GND). These connections are vital, whether the IC is operating on a single supply or a split supply configuration.

2. Inputs Arrangement: Each of the four operational amplifiers within the LM2902DT possesses an inverting (pins 2, 6, 9, 13) and a non-inverting input (pins 3, 5, 10, 12). The signals that the amplifier will process must be received via these inputs.

3. Configuring Gain and Feedback: The amplification level is adjustable via external resistors. In a standard non-inverting amplifier setup, a resistor is placed between the output (pins 1, 7, 8, 14) and the inverting input, and another resistor from the inverting input to the ground, with the gain being dependent on the ratio of these two resistors.

4. Output Terminals: The outputs of the LM2902DT are located at pins 1, 7, 8, and 14. These outputs are connectable directly to loads or subsequent circuit stages, depending on the specific requirements of the application.

5. Enhancing Circuit Stability: The implementation of bypass capacitors, typically around 0.1 µF, near the power supply pins, is recommended. These capacitors aid in noise reduction and enhance the overall stability of the circuit.

6. Incorporating Protective Elements: Given the potential exposure to transient voltages or other harmful conditions, integrating protective components such as diodes can safeguard the LM2902DT.

When designing circuits with the LM2902DT, it is essential to consider these aspects meticulously to ensure the chip functions effectively. Its versatility in handling various signal types and adaptability in different circuit configurations makes the LM2902DT a robust choice for amplification and signal processing in diverse electronic applications. Always refer to the specific guidelines and specifications provided in the manufacturer's datasheet for the LM2902DT to achieve the best performance and reliability.
