Texas Instruments LM2902DRG4

Part No.:: LM2902DRG4

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM2902DRG4.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14SOIC

In Stock:: 3117

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2902DRG4 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
0.5V/µs
GainBandwidthProduct:
1.2 MHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
3 mV
Current-Supply:
1.4mA (x4 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
26 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

LM2902DRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2902DRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2902DRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2902DRG4 information

Views：

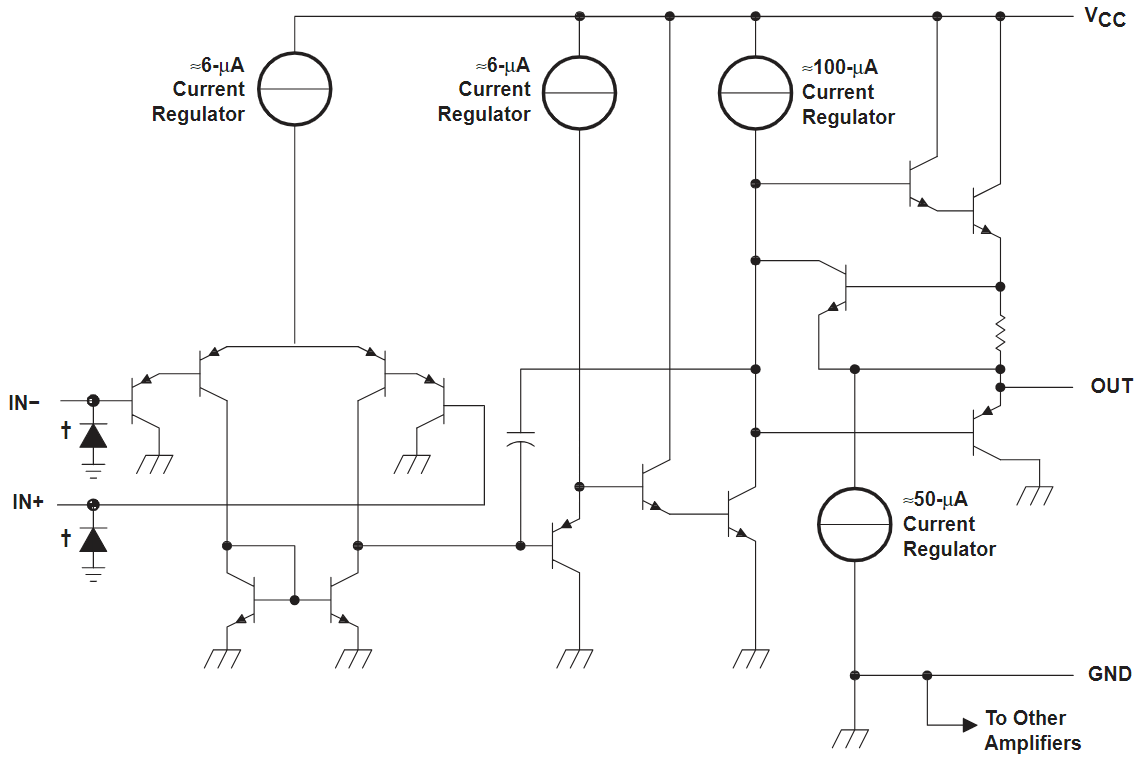

LM2902DRG4 Typical application Circuitry

LM2902DRG4

The LM2902DRG4 is a variant in the expansive LM2902 series, characterized by its quadruple operational amplifiers. These op-amps are engineered to cater to single or dual power supply operations, which makes them highly adaptable for an array of electronic applications.

1. Establishing Power Supply Links: The LM2902DRG4 requires connections for power through a VCC+ pin for the positive supply and a GND pin for the earth connection. The device can be powered with a single supply voltage in the range of 3V to 32V, or with a dual supply configuration, it operates at voltages from ±1.5V to ±16V.

2. Configuring Inputs: Within the LM2902DRG4, each of the four operational amplifiers possesses an inverting (IN-) and a non-inverting (IN+) input. These are critical for signal processing tasks, where signals are fed for amplification or comparison.

3. Routing Outputs: The LM2902DRG4 features individual output pins (OUT) for each of its op-amps. These outputs deliver the processed signal and are to be connected to subsequent circuit stages, whether they are feedback networks, other signal processors, or direct loads.

4. Pin Dynamics: The standard package for the LM2902DRG4 is a 14-pin form factor. This arrangement includes the pins for power supply, the inverting and non-inverting inputs for all four amplifiers, and their respective output pins.

Incorporating the LM2902DRG4 into electronic designs requires diligence in managing supply voltages, ensuring they fall within the recommended thresholds. Furthermore, signal routing through the inputs and outputs should be meticulously planned to leverage the operational amplifiers' characteristics such as bandwidth and slew rate optimally. The LM2902DRG4 is particularly valuable in a myriad of applications, from sensor interfacing to signal conditioning, owing to its reliability and versatility as an operational amplifier.
