Texas Instruments LM2902DRE4

Part No.:: LM2902DRE4

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM2902DRE4.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14SOIC

In Stock:: 2500

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM2902DRE4 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Bulk
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
0.5V/µs
GainBandwidthProduct:
1.2 MHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
3 mV
Current-Supply:
1.4mA (x4 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
26 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

LM2902DRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM2902DRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM2902DRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM2902DRE4 information

Views：

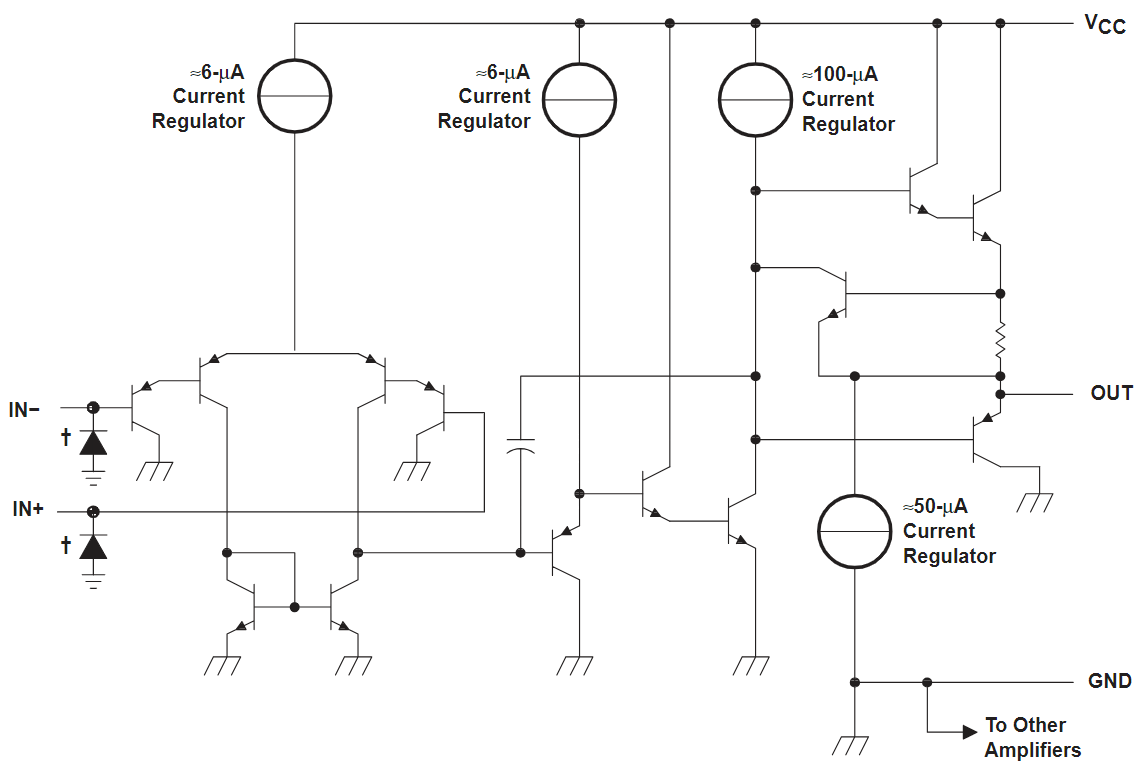

LM2902DRE4 Typical application Circuitry

LM2902DRE4

The LM2902DRE4 is part of a series of low-power quad operational amplifiers. These amplifiers are commonly used in various electronic applications due to their low power consumption and wide supply voltage range. They belong to the LMx902 and LMx904 series, which are known for their versatility and reliability in both linear and digital applications.

1. Power Supply: The LM2902DRE4 can be powered by a single power supply, with the positive supply connected to the V+ pin (pin 4) and the ground connected to the V− pin (pin 11). Alternatively, for a split power supply, connect the positive voltage to V+ and the negative voltage to V−.

2. Input and Output Connections: Each of the four operational amplifiers within the LM2902DRE4 has two inputs and one output. The inverting input (-) and non-inverting input (+) for the first op-amp are on pins 2 and 3, respectively, with the output on pin 1. This pattern repeats for the other three amplifiers: pins 5 and 6 (inputs) and 7 (output) for the second, pins 8 and 9 (inputs) and 10 (output) for the third, and pins 12 and 13 (inputs) with 14 (output) for the fourth.

3. Feedback and Gain Control: You can control the gain of each amplifier by connecting resistors in a feedback loop between the output and the inverting input. The values of these resistors influence the gain.

4. Additional Components: Depending on your specific application, you may need additional components like capacitors for stability, especially in high-frequency applications.

Remember, the LM2902DRE4, like all operational amplifiers, is sensitive to static electricity and incorrect wiring, which can cause damage. Always follow appropriate electrostatic discharge (ESD) precautions and double-check your connections.

In conclusion, the LM2902DRE4 is a versatile, low-power component suitable for a range of applications requiring multiple operational amplifiers. Its quad configuration, combined with a wide operating voltage range and low power consumption, makes it an ideal choice for both hobbyist and professional projects.
