Name: LM258DT
Brand: STMicroelectronics
SKU: LM258DT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics LM258DT

Part No.:: LM258DT

Manufacturer:: STMicroelectronics

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM258DT.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 18576

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM258DT Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.6V/µs
GainBandwidthProduct:
1.1 MHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
5 mV
Current-Supply:
700µA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

LM258DT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM258DT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM258DT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM258DT information

Views：

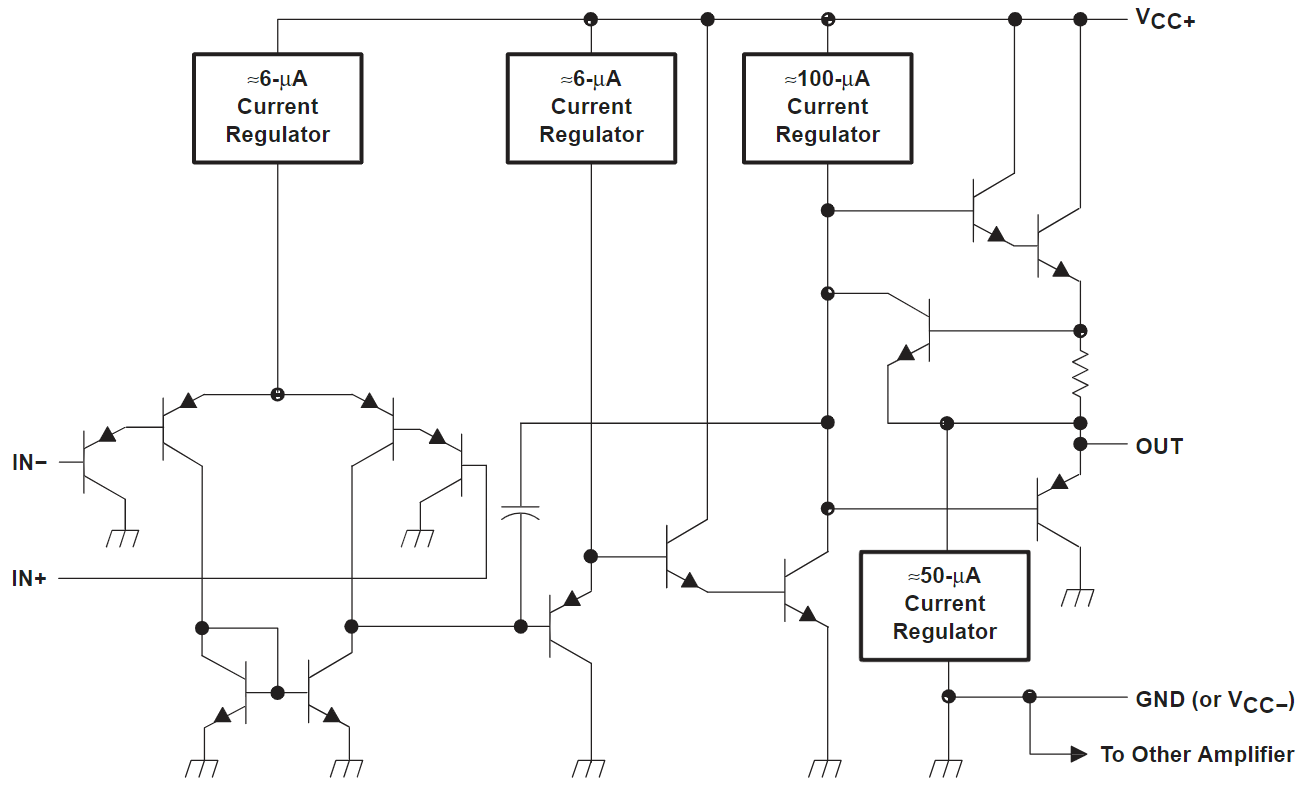

LM258DT Typical application Circuitry

LM258DT

The LM258DT is a component of the LM258 series, which comprises dual operational amplifiers (op-amps) notable for their low power consumption and broad power supply range compatibility. These op-amps are typically utilized in applications that require signal amplification, such as sensor interfaces, power supplies, and other general-purpose amplifying circuits.

1. Pin 1 (Output 1): This pin is the output from the first op-amp within the LM258DT. Connect this pin to the input of the next stage in your circuit or to a designated load if applicable.

2. Pin 2 (Inverting Input 1): This is the first op-amp's inverting input. For an inverting amplifier setup, your input signal would be linked to this pin.

3. Pin 3 (Non-Inverting Input 1): The non-inverting input for the first op-amp is located here. For non-inverting amplifier configurations, the input signal should be connected to this pin.

4. Pin 4 (V− or GND): This pin is typically connected to the negative supply voltage or the ground, particularly in single-supply configurations, serving as the reference low for the op-amp.

5. Pin 5 (Non-Inverting Input 2): This pin serves as the non-inverting input for the second op-amp in the LM258DT.

6. Pin 6 (Inverting Input 2): The inverting input for the second op-amp is found here. Similar to Pin 2, this pin would receive the input signal for inverting amplifier configurations.

7. Pin 7 (Output 2): The second op-amp's output is provided at this pin.

8. Pin 8 (V+): The positive power supply voltage is connected to this pin, and it powers both op-amps within the LM258DT.

When designing circuits with the LM258DT, it is crucial to ensure that the input signals are within the device's common-mode range and that the power supply is appropriately decoupled with capacitors close to the power supply pins to maintain stability and reduce noise. The LM258DT datasheet will provide comprehensive details including maximum ratings, recommended operating conditions, and typical application circuits, which are invaluable for achieving optimal performance from the LM258DT.
