Texas Instruments LM258DRG3

Part No.:: LM258DRG3

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM258DRG3.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 3009

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM258DRG3 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
700 kHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
3 mV
Current-Supply:
500µA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
-25°C ~ 85°C (TA)
MountingType:
Surface Mount

LM258DRG3 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM258DRG3 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM258DRG3 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM258DRG3 information

Views：

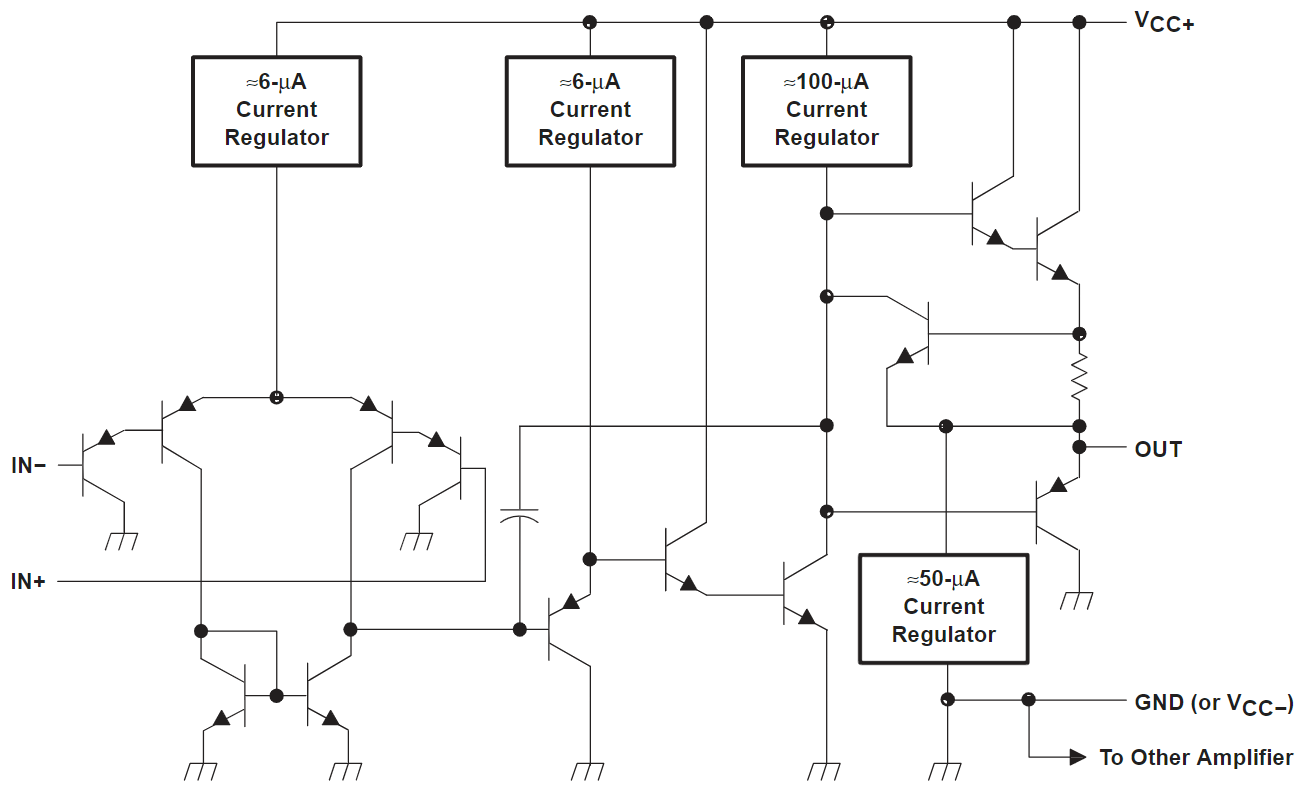

LM258DRG3 Typical application Circuitry

LM258DRG3

The LM258DRG3 is a model within the LM258 series, which consists of dual operational amplifiers. These op-amps are recognized for their low power consumption and their ability to operate from a single power supply over a wide range of voltages, making them adaptable for various electronic applications.

1. Pin 1 (Output 1): This pin is the output for the first amplifier in the LM258DRG3 package. Connect it to your circuit where the processed signal from the first op-amp is required.

2. Pin 2 (Inverting Input 1): The inverting input of the first op-amp is located here. In an inverting amplifier setup, your input signal would be connected to this pin.

3. Pin 3 (Non-inverting Input 1): This is the first op-amp's non-inverting input. It is used when setting up a non-inverting amplifier circuit.

4. Pin 4 (V− or GND): In a single-supply operation, this pin is typically grounded. For dual-supply configurations, it is connected to the negative voltage rail.

5. Pin 5 (Non-inverting Input 2): This pin serves as the non-inverting input for the second op-amp within the LM258DRG3 package.

6. Pin 6 (Inverting Input 2): The inverting input for the second op-amp is found here, where you would feed the input signal for inverted output.

7. Pin 7 (Output 2): The output from the second amplifier is provided at this pin.

8. Pin 8 (V+): This pin is where you supply the positive voltage for the LM258DRG3. It powers the two amplifiers in the chip and is linked to the positive side of the power supply.

When building circuits with the LM258DRG3, it's important to ensure proper power supply decoupling, typically achieved with capacitors placed near the power supply pins. This practice helps to stabilize the voltage supply and reduce noise. The input signals must fall within the common-mode range of the op-amp, and the output should be within the LM258DRG3's driving capability. It is advised to refer to the datasheet for the LM258DRG3 to get detailed specifications, application circuits, and proper configuration details.
