ON Semiconductor LM258DR2

Part No.:: LM258DR2

Manufacturer:: ON Semiconductor

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM258DR2.pdf

Description:: IC OPAMP DUAL LOW POWER 8SOIC

In Stock:: 2214

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM258DR2 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Cut Tape (CT),Bulk
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
-
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
45 nA
Voltage-InputOffset:
2 mV
Current-Supply:
800µA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

LM258DR2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM258DR2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM258DR2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM258DR2 information

Views：

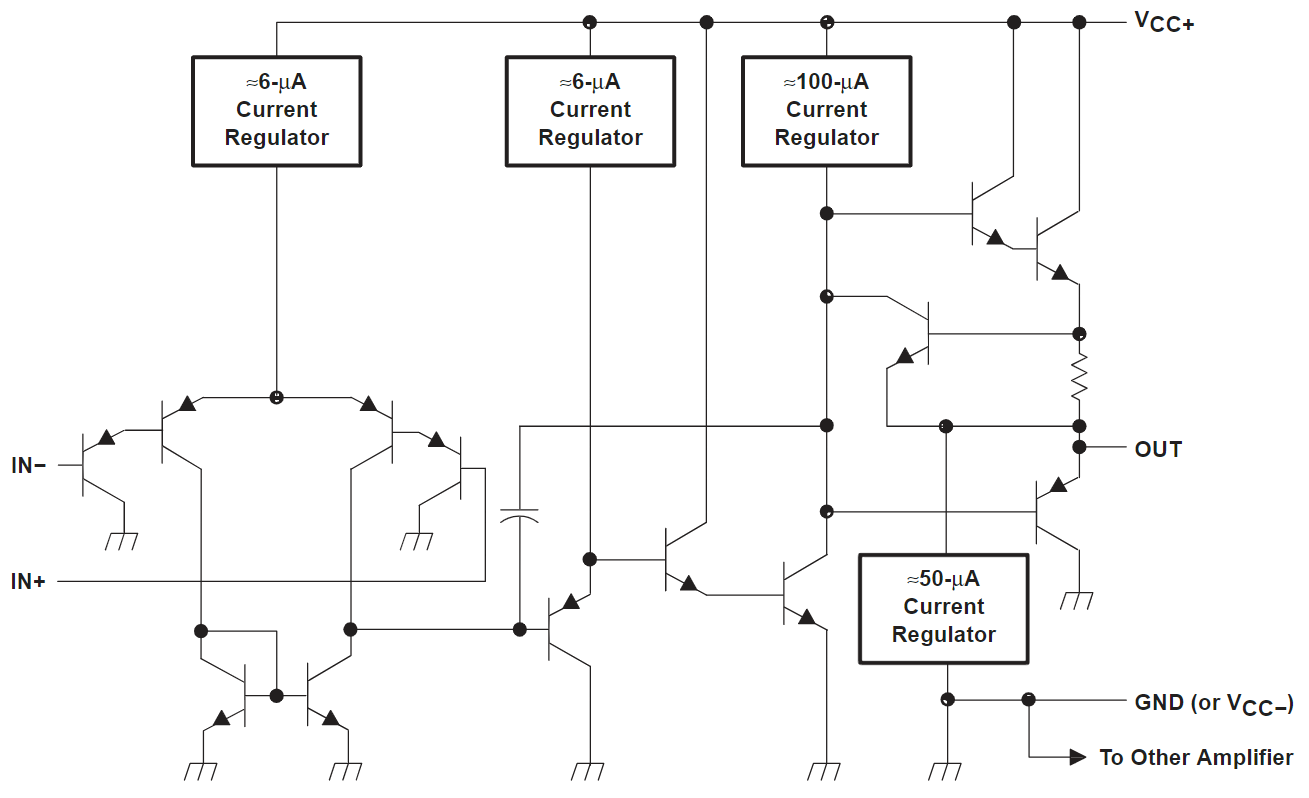

LM258DR2 Typical application Circuitry

LM258DR2

The LM258DR2 is a component of the LM258 series, which includes dual operational amplifiers (op-amps) designed for general-purpose applications. These gadgets are especially renowned for their broad variety of power supply voltages and low power consumption, which makes them appropriate for battery-operated devices.

1. Pin 1 (Output 1): This pin provides the output from the first op-amp within the LM258DR2. It should be connected to the next stage of your circuit or, depending on your design, directly to a load.

2. Pin 2 (Inverting Input 1): The first op-amp's inverting input is this. For an inverting amplifier configuration, you would feed your input signal to this pin.

3. Pin 3 (Non-inverting Input 1): The first op-amp's non-inverting input pin is located here. For non-inverting configurations, the input signal is applied here.

4. Pin 4 (V− or Ground): This pin should be connected to the negative supply voltage or ground, especially in single-supply operation scenarios.

5. Pin 5 (Non-inverting Input 2): This is the non-inverting input for the second op-amp in the LM258DR2.

6. Pin 6 (Inverting Input 2): This pin is the inverting input for the second op-amp. It operates similarly to Pin 2 but corresponds to the other op-amp in the package.

7. Pin 7 (Output 2): The output from the second op-amp is located at this pin.

8. Pin 8 (V+): This is the positive supply voltage input for the LM258DR2, which powers both op-amps within the chip.

When deploying the LM258DR2 in a circuit, it's critical to ensure that the input signals are within the specified range for the device and that power supply considerations are appropriately managed, including the use of bypass capacitors near the power supply pins for noise suppression and stability. The datasheet for the LM258DR2 provides valuable information on component selection, typical application circuits, and detailed operational guidance to ensure correct usage and optimum performance.
