Name: LM258ADRG4
Brand: Texas Instruments
SKU: LM258ADRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM258ADRG4

Part No.:: LM258ADRG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM258ADRG4.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 3523

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM258ADRG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
700 kHz
-3dbBandwidth:
-
Current-InputBias:
15 nA
Voltage-InputOffset:
2 mV
Current-Supply:
500µA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
-25°C ~ 85°C (TA)
MountingType:
Surface Mount

LM258ADRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM258ADRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM258ADRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM258ADRG4 information

Views：

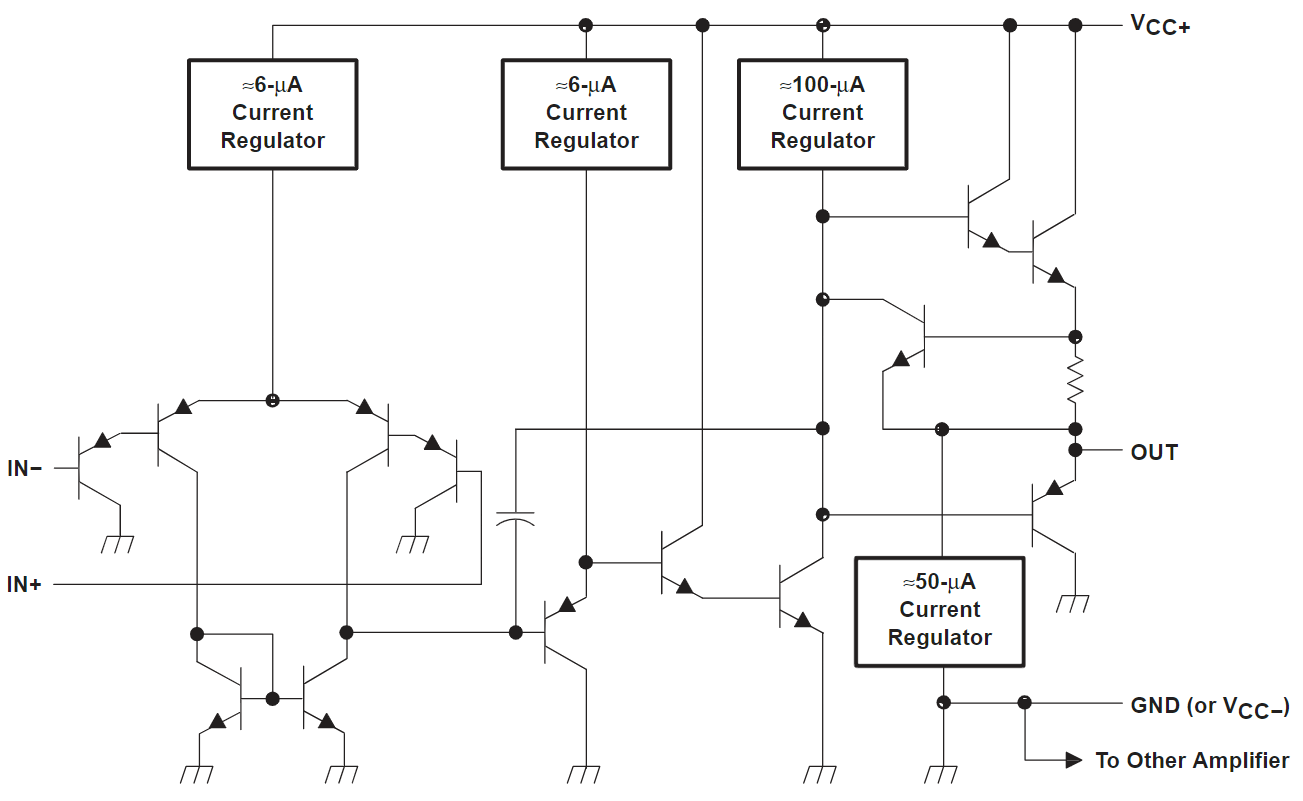

LM258ADRG4 Typical application Circuitry

LM258ADRG4

The LM258ADRG4 is a specific variant in the LM258 series of dual operational amplifiers. These amplifiers are widely utilized in many different kinds of electronic circuits because of their reputation for dependability and adaptability. Here, I'll detail the connection methodology for the LM258ADRG4, emphasizing the function and connection of each individual pin:

1. Pin 1 - Output of Amplifier A: This pin on the LM258ADRG4 serves as the output for the first operational amplifier. The signal processed by Amplifier A is accessed here.

2. Pin 2 - Inverting Input of Amplifier A: In the LM258ADRG4, this pin is the inverting input for the first amplifier. Any signal fed into this pin will be amplified inversely in phase. It's often used in conjunction with feedback networks.

3. Pin 3 - Non-Inverting Input of Amplifier A: This is where the non-inverting input for Amplifier A of the LM258ADRG4 is connected. Signals input here retain their original phase upon amplification.

4. Pin 4 - Negative Power Supply (Vcc-): On the LM258ADRG4, this pin is crucial for power supply connection. In dual supply configurations, it's connected to the negative voltage. For single supply circuits, this pin is grounded.

5. Pin 5 - Non-Inverting Input of Amplifier B: Acting as the non-inverting input for the second op-amp in the LM258ADRG4, this pin amplifies signals while preserving their phase.

6. Pin 6 - Inverting Input of Amplifier B: This pin is the inverting input for the LM258ADRG4's second amplifier. It is used to apply signals that are to be amplified with phase inversion.

7. Pin 7 - Output of Amplifier B: This pin provides the output for the second operational amplifier in the LM258ADRG4.

8. Pin 8 - Positive Power Supply (Vcc+): For the LM258ADRG4, this pin connects to the positive power supply. It's vital for powering the IC, whether in a single or dual supply setup.

In using the LM258ADRG4, precise attention to power supply connections, signal inputs, and feedback loops is essential. The use of bypass capacitors is often recommended to minimize noise, particularly in applications dealing with high frequencies. The LM258ADRG4's flexibility makes it suitable for various applications, such as signal amplification, filtering, and oscillation generation, with the specific pin configuration depending on the circuit's objectives.
