Texas Instruments LM258ADRE4

Part No.:: LM258ADRE4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LM258ADRE4.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 3503

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM258ADRE4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.3V/µs
GainBandwidthProduct:
700 kHz
-3dbBandwidth:
-
Current-InputBias:
15 nA
Voltage-InputOffset:
2 mV
Current-Supply:
500µA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
-25°C ~ 85°C (TA)
MountingType:
Surface Mount

LM258ADRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM258ADRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM258ADRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM258ADRE4 information

Views：

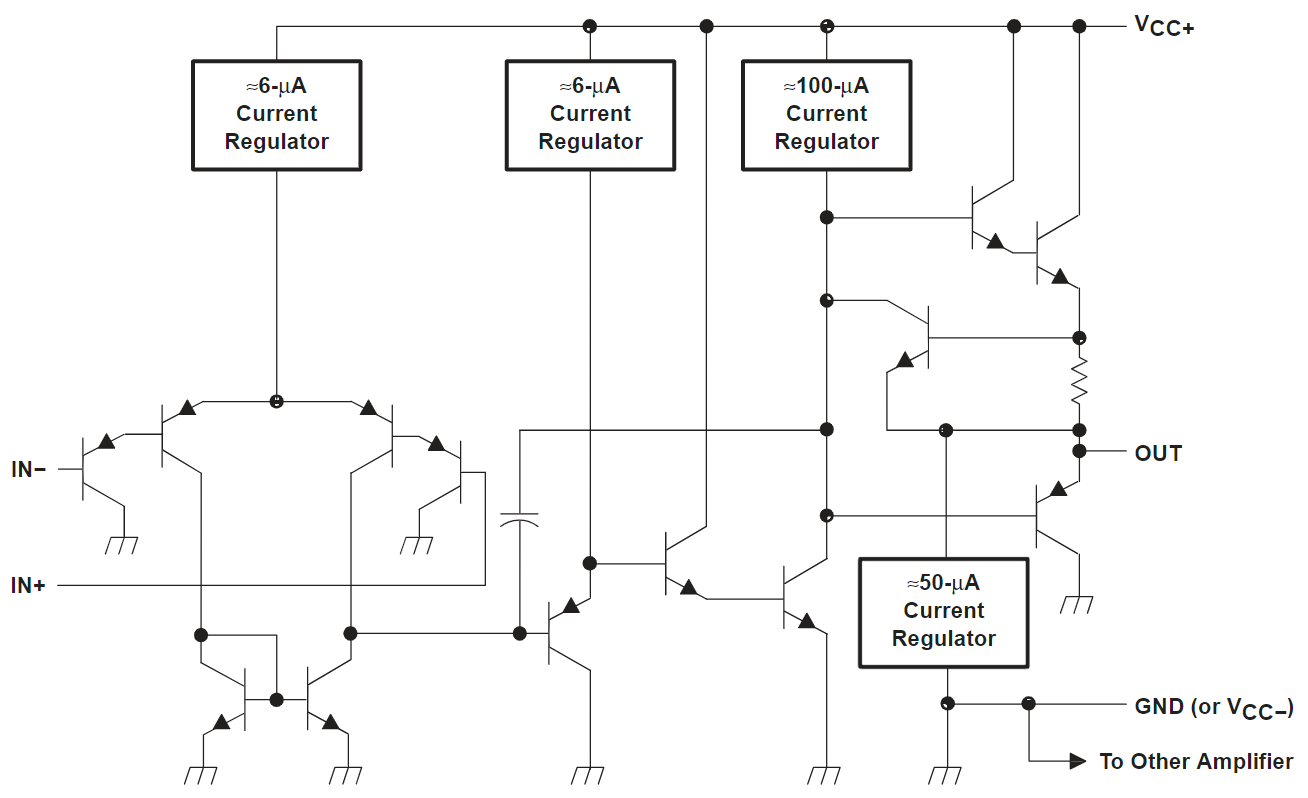

LM258ADRE4 Typical application Circuitry

LM258ADRE4

The LM258ADRE4 is part of the broader LM258 series, known for dual operational amplifiers (op-amps) that are frequently utilized in a range of electronic applications due to their stability and adaptability. This specific model, the LM258ADRE4, is designed for enhanced performance in various circuit configurations. Let's delve into its pin connections, ensuring each pin's purpose and connection method are clearly outlined:

1. Pin 1 (Output of Amplifier A): In the LM258ADRE4, this pin acts as the output for the first operational amplifier. It's where the processed signal from Amplifier A is made available.

2. Pin 2 (Inverting Input of Amplifier A): This pin on the LM258ADRE4 serves as the inverting input for the first amplifier. Signals entering here are phase-inverted upon amplification. It's typically integrated into the feedback circuit for gain control.

3. Pin 3 (Non-Inverting Input of Amplifier A): This pin serves as the first amplifier's non-inverting input for the LM258ADRE4. Signals applied to this pin are amplified while maintaining their original phase.

4. Pin 4 (Negative Power Supply - Vcc-): The LM258ADRE4 utilizes this pin for its negative power supply connection. In dual supply modes, it is linked to the negative voltage rail, while in single supply setups, it usually connects to ground.

5. Pin 5 (Non-Inverting Input of Amplifier B): This pin functions as the non-inverting input for the second op-amp within the LM258ADRE4. Signals here are amplified with the same phase as the input.

6. Pin 6 (Inverting Input of Amplifier B): This pin on the LM258ADRE4 is used for the second amplifier's inverting input. It's used for signals that require phase inversion during amplification.

7. Pin 7 (Output of Amplifier B): This is the output pin for the second amplifier in the LM258ADRE4, where the output signal of Amplifier B is obtained.

8. Pin 8 (Positive Power Supply - Vcc+): This pin on the LM258ADRE4 connects to the positive power supply. Whether the chip is powered by a single source or two, it is essential.

For optimal performance of the LM258ADRE4, it is vital to ensure proper connection of power supplies, input signals, and feedback networks. Incorporating bypass capacitors is often advised to filter out noise, particularly in high-frequency scenarios. The LM258ADRE4's design allows it to be employed in a variety of electronic circuits, including but not limited to, amplifiers, filters, and oscillators, with the specific connection details varying based on the application's requirements.
