Name: LM224DTB
Brand: ON Semiconductor
SKU: LM224DTB
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor LM224DTB

Part No.:: LM224DTB

Manufacturer:: ON Semiconductor

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: LM224DTB.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14TSSOP

In Stock:: 3563

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM224DTB Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
-
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
90 nA
Voltage-InputOffset:
2 mV
Current-Supply:
-
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

LM224DTB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM224DTB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM224DTB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM224DTB information

Views：

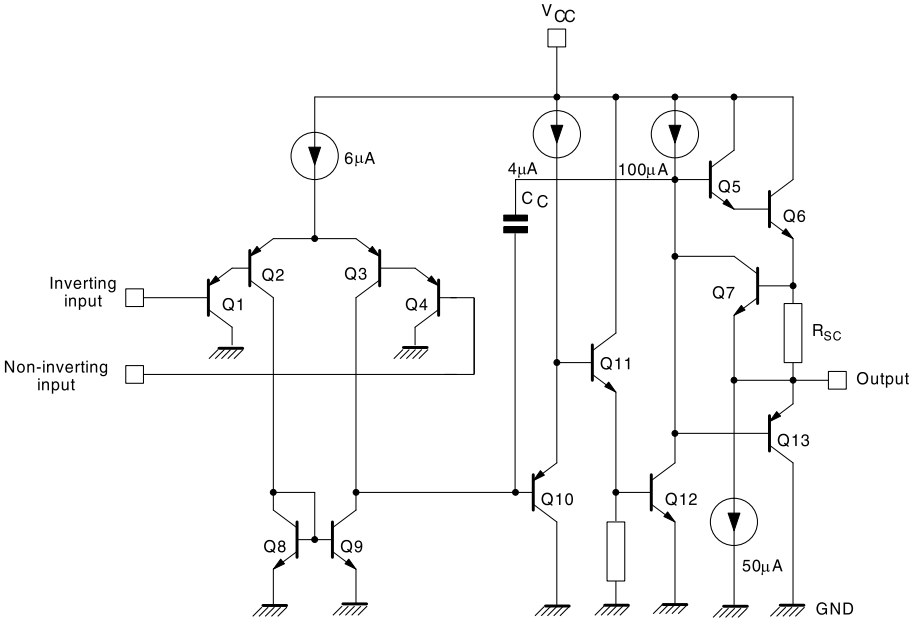

LM224DTB Typical application Circuitry

LM224DTB

The LM224DTB belongs to a distinguished family of operational amplifiers known for their high degree of utility in a vast array of electronic applications. This particular series is crafted to meet the demands of applications that require signal amplification, from simple audio devices to complex control systems, making the LM224DTB a versatile choice for designers.

1. Power Supply Connections (V+ and V-): The LM224DTB operates effectively across a broad spectrum of supply voltages, accommodating anything from 3V to 32V when used with a single supply, and from ±1.5V to ±16V in a dual supply configuration. These voltages are connected to the V+ and V- pins. It is of paramount importance to stabilize these pins with decoupling capacitors to mitigate the effects of noise and ensure the stability of the supply voltage, thus maintaining the optimal performance of the LM224DTB.

2. Output Connections: Featuring four individual amplifiers, the LM224DTB provides four output pins, each dedicated to one of the internal amps. These pins are intended to interface with the subsequent stages of the circuit or directly with the load. To secure stable and accurate performance, incorporating feedback mechanisms through resistors or capacitors around these outputs is advisable, especially in applications demanding precision.

3. Input Connections (Inverting and Non-Inverting): Each amplifier within the LM224DTB is equipped with an inverting (IN-) and a non-inverting (IN+) input pin. The application of the signal to be amplified is made at these points, where the inverting input reverses the phase of the signal, and the non-inverting input retains the signal's original phase. The specific use of these pins depends on the desired configuration of the amplifier, whether it is set up for inverting, non-inverting, or differential operation.

4. Feedback and Stability: The LM224DTB necessitates the implementation of external feedback components to tailor the amplifier's gain and ensure its stability. This flexibility allows designers to utilize the LM224DTB in a variety of configurations, ranging from basic signal amplification to more intricate applications like signal filtering and oscillation.

5. Biasing and Amplifier Configuration: Proper biasing of the LM224DTB's operational amplifiers is crucial for optimal functionality. This involves setting up the correct quiescent operating point, which can be achieved through external resistors connected to the input pins. Moreover, the configuration of the amplifiers-determining their function as voltage followers, integrators, or other types-requires a deep understanding of both the circuit design and the LM224DTB's operational characteristics.

6. Thermal Management: Ensuring the LM224DTB does not exceed its maximum operating temperature is essential for its reliability and longevity. Effective thermal management strategies, such as implementing heat sinks or ensuring proper airflow, can significantly mitigate the risk of overheating.

In essence, the LM224DTB is engineered to serve a broad spectrum of amplification needs across various electronic applications. A thorough comprehension of the functions of each pin and the role of external components is essential to unlock the full potential of the LM224DTB. This operational amplifier is a testament to the series' commitment to providing adaptable, efficient, and dependable solutions in electronics design and implementation.

LM224DTB FAQ

1. How to order LM224DTB on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that LM224DTB is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the LM224DTB. All suppliers must pass our qualification reviews before they can publish their products including LM224DTB on icwhale.com; we pay more attention to the channels and quality of LM224DTB products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the LM224DTB price and inventory displayed accurate?

The price and inventory of LM224DTB fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of LM224DTB?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the LM224DTB we delivered, we will accept the replacement or return of the LM224DTB only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of LM224DTB.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
