Name: LM224DRG4
Brand: Texas Instruments
SKU: LM224DRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM224DRG4

Part No.:: LM224DRG4

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM224DRG4.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14SOIC

In Stock:: 3650

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM224DRG4 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
0.5V/µs
GainBandwidthProduct:
1.2 MHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
3 mV
Current-Supply:
1.4mA (x4 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-25°C ~ 85°C (TA)
MountingType:
Surface Mount

LM224DRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM224DRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM224DRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM224DRG4 information

Views：

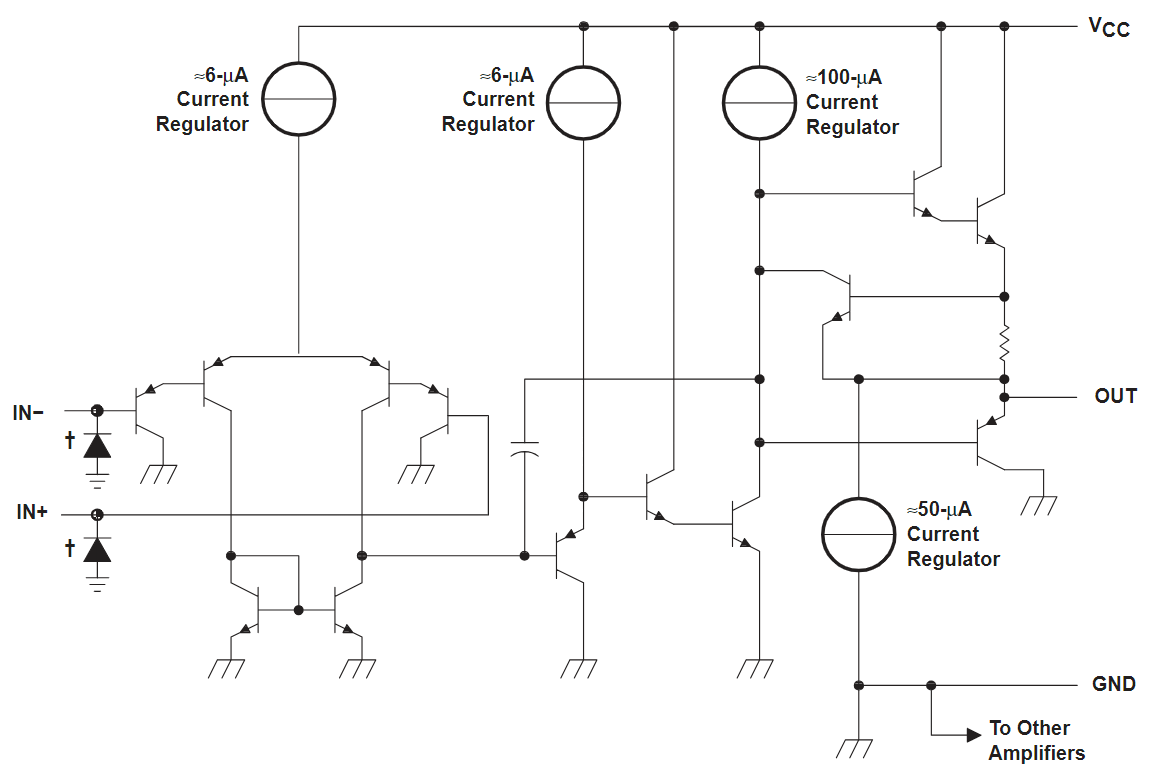

LM224DRG4 Typical application Circuitry

LM224DRG4

The LM224DRG4 belongs to the extended family of LM224 operational amplifiers. This specific device consists of four separate, internally frequency-compensated, high-gain operational amplifiers (op-amps) that may run from a single power supply across a broad voltage range or from dual sources for flexible use in a variety of analog circuits.

1. Supply Voltage Connections:

- Pin 4 (VCC+): This pin is where you connect the positive side of the power supply. The LM224DRG4 can function with a single power supply voltage ranging between 3V to 32V, or with a dual power supply mode with voltages from ±1.5V to ±16V.

- Pin 11 (VCC-): For a single supply operation, this would be tied to the ground. With dual supplies, this pin connects to the negative voltage rail.

2. Input and Output Configuration:

- Pins 1, 2, and 3 (Op-Amp 1): For the LM224DRG4's first amplifier, Pin 1 is the output, Pin 2 the inverting input, and Pin 3 the non-inverting input.

- Pins 5, 6, and 7 (Op-Amp 2): The output for the second op-amp is at Pin 5, the inverting input at Pin 6, and the non-inverting input at Pin 7.

- Pins 8, 9, and 10 (Op-Amp 3): The third op-amp uses these pins similarly, with Pin 8 as the output.

- Pins 12, 13, and 14 (Op-Amp 4): Lastly, for the fourth op-amp in the LM224DRG4, Pin 12 is the output.

3. Feedback Loop and Stability: Each op-amp within the LM224DRG4 should have a feedback connection. Direct feedback from the output to the inverting input achieves unity gain, while incorporating resistors or capacitors can customize the gain and frequency response.

4. Input Biasing and Decoupling:

- A biasing network may be necessary for the non-inverting inputs (Pins 3, 7, 10, and 14) of the LM224DRG4 to set the operating point.

- Decoupling capacitors should be placed close to the power supply pins (Pins 4 and 11) to filter out noise and provide a stable operating environment for the LM224DRG4.

In circuit designs, the LM224DRG4's capability to function with a single or dual power supply adds to its flexibility, making it a practical choice for a myriad of applications. Adhering to the recommended layout, grounding, and routing guidelines as per the LM224DRG4 datasheet is critical for optimal performance. The datasheet is also an invaluable resource for understanding the specifics of external components compatibility and ensuring that all the connections promote the stable operation of the LM224DRG4 in its intended application.

LM224DRG4 FAQ

1. How to order LM224DRG4 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that LM224DRG4 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the LM224DRG4. All suppliers must pass our qualification reviews before they can publish their products including LM224DRG4 on icwhale.com; we pay more attention to the channels and quality of LM224DRG4 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the LM224DRG4 price and inventory displayed accurate?

The price and inventory of LM224DRG4 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of LM224DRG4?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the LM224DRG4 we delivered, we will accept the replacement or return of the LM224DRG4 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of LM224DRG4.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
