Name: LM224DR2G
Brand: ON Semiconductor
SKU: LM224DR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor LM224DR2G

Part No.:: LM224DR2G

Manufacturer:: ON Semiconductor

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM224DR2G.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14SOIC

In Stock:: 2469

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM224DR2G Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
-
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
90 nA
Voltage-InputOffset:
2 mV
Current-Supply:
-
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
32 V
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

LM224DR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM224DR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM224DR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM224DR2G information

Views：

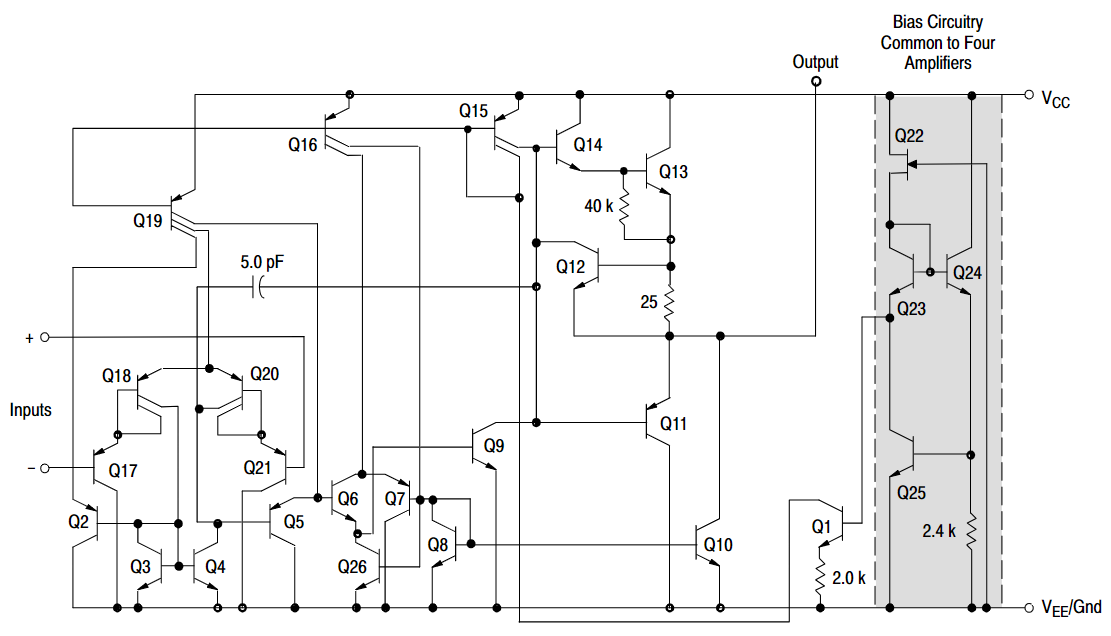

LM224DR2G Typical application Circuitry

LM224DR2G

The LM224DR2G is a quad operational amplifier, part of the broader LM224 series known for its versatility in handling a wide array of electronic signal processing tasks. These amplifiers are frequently utilized in diverse applications such as sensors, audio electronics, and other analog circuits, where multiple op-amps are required.

1. Voltage Supply Considerations:

- Pin 4 (VCC+): This pin serves as the connection point for the positive voltage supply to the LM224DR2G. It can operate between a wide voltage range, typically from 3V to 32V in a single supply configuration, and ±1.5V to ±16V in a split supply format.

- Pin 11 (VCC-): This pin is grounded when the LM224DR2G operates in a single supply mode and is connected to the negative supply in a dual supply setup.

2. Operational Amplifier Inputs and Outputs:

- Pins 1, 2, and 3 (Op-Amp 1 of LM224DR2G): For the first op-amp, Pin 1 is the output, Pin 2 is the inverting input, and Pin 3 is the non-inverting input.

- Pins 5, 6, and 7 (Op-Amp 2 of LM224DR2G): For the second op-amp, Pin 5 is the output, Pin 6 the inverting input, and Pin 7 the non-inverting input.

- Pins 8, 9, and 10 (Op-Amp 3 of LM224DR2G): The third op-amp uses Pin 8 for the output, Pin 9 for the inverting input, and Pin 10 for the non-inverting input.

- Pins 12, 13, and 14 (Op-Amp 4 of LM224DR2G): Finally, the fourth op-amp within the LM224DR2G follows the same configuration, with Pin 12 as the output.

3. Configuring Feedback Loops: The LM224DR2G requires feedback loops to be configured for each op-amp to stabilize the amplification settings. This could be a direct connection for unity gain or involve resistors and capacitors for customized gains.

4. Biasing Inputs and Noise Management:

- For optimal performance of the LM224DR2G, biasing the non-inverting inputs may be necessary to set the correct operating point.

- Decoupling capacitors should be strategically placed near the power supply pins of the LM224DR2G to suppress any voltage spikes or noise, ensuring smooth operation.
