What is the Additional Feature ?

Name: LM224DR
Brand: Texas Instruments
SKU: LM224DR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LM224DR

Part No.:: LM224DR

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM224DR.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14SOIC

In Stock:: 2352

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM224DR Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
0.5V/µs
GainBandwidthProduct:
1.2 MHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
3 mV
Current-Supply:
1.4mA (x4 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-25°C ~ 85°C (TA)
MountingType:
Surface Mount

LM224DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM224DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM224DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM224DR information

Views：

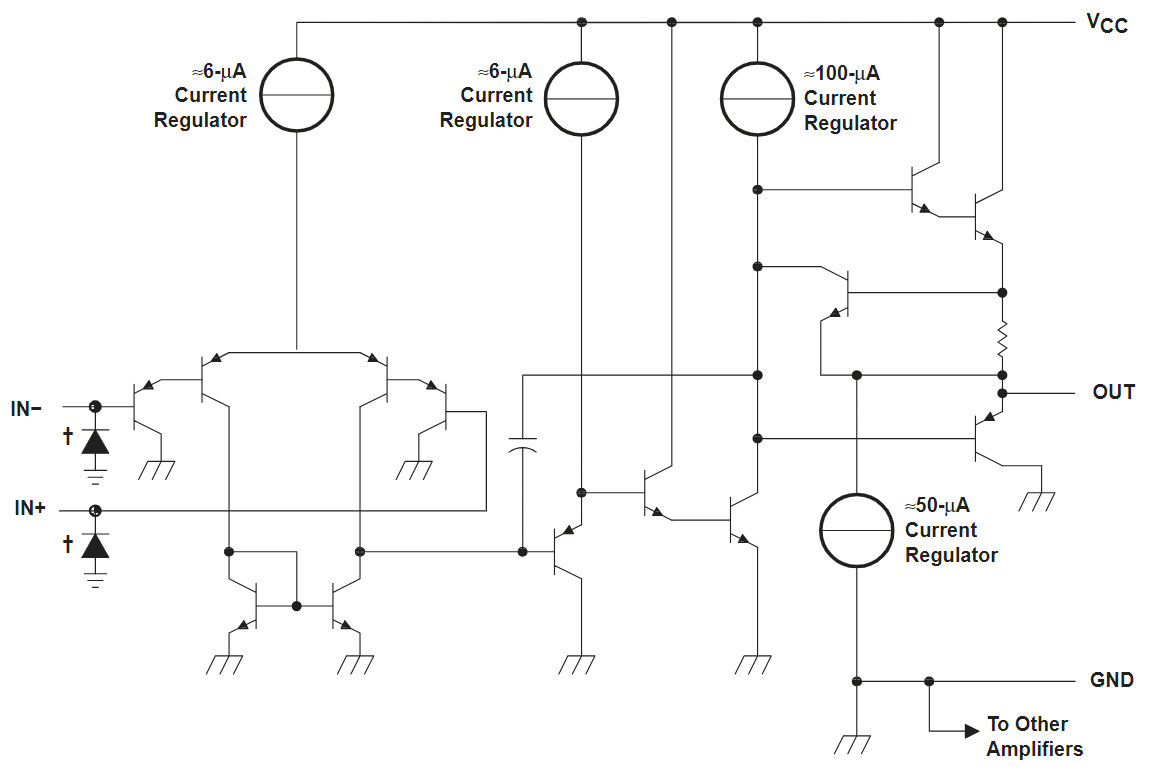

LM224DR Typical application Circuitry

LM224DR

The LM224DR is part of the LM224 series, which consists of low-power quad operational amplifiers. These devices are designed to operate from a single power supply and can also be adapted to dual supply modes. The LM224DR is notable for its ability to handle wide voltage ranges and its low supply current draw, making it suitable for battery-powered devices, sensor amplifiers, and other applications requiring multiple op-amps in a single package.

1. Power Supply Pins:

- Pin 4 (VCC+): Connect this pin to the positive supply voltage, which can range from 3V to 32V for single-supply configurations or ±1.5V to ±16V for dual-supply operations.

- Pin 11 (GND/VCC-): This pin is for the ground reference in single-supply setups, or the negative supply voltage for dual-supply modes.

2. Operational Amplifier Inputs and Outputs:

- Pins 1, 2, and 3 (Output, Inverting Input, Non-Inverting Input of Op-Amp 1): The LM224DR's first operational amplifier's output is Pin 1, with Pin 2 as the inverting input and Pin 3 as the non-inverting input.

- Pins 5, 6, and 7 (Output, Inverting Input, Non-Inverting Input of Op-Amp 2): The second op-amp follows a similar configuration with Pin 5 for output, Pin 6 for the inverting input, and Pin 7 for the non-inverting input.

- Pins 8, 9, and 10 (Output, Inverting Input, Non-Inverting Input of Op-Amp 3): Respectively, for the third amplifier within the LM224DR.

- Pins 12, 13, and 14 (Output, Inverting Input, Non-Inverting Input of Op-Amp 4): These pins serve the fourth operational amplifier.

3. Feedback and Frequency Compensation:

- Each operational amplifier in the LM224DR typically requires a feedback path, which can be established by connecting the output to the inverting input either directly for unity gain or through a resistor network for different gain settings.

- To ensure stability, especially in bandwidth-limited configurations, a capacitor might be added to the feedback loop or between the inverting input and ground.

4. Biasing and Input Protection:

- The non-inverting inputs of the LM224DR may require a path to ground or a reference voltage via a resistor, depending on the desired operation point.

- Protecting the inputs against voltage spikes can be achieved by placing diodes or resistors in series with the input pins.

5. Decoupling for Noise Reduction: To safeguard the LM224DR against power supply fluctuations and noise, a decoupling capacitor is generally placed between the VCC+ and GND pins in close proximity to the IC.

When incorporating the LM224DR into any circuit, it is imperative to ensure that the connections are secure and follow the recommended practices outlined in the device's datasheet. This ensures optimal performance and prevents any instability or malfunction. Consulting the LM224DR datasheet is also critical for acquiring detailed specifications on the acceptable range of external components, such as feedback resistors or capacitors, that the device will interface with.

LM224DR FAQ

1. How to order LM224DR on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that LM224DR is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the LM224DR. All suppliers must pass our qualification reviews before they can publish their products including LM224DR on icwhale.com; we pay more attention to the channels and quality of LM224DR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the LM224DR price and inventory displayed accurate?

The price and inventory of LM224DR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of LM224DR?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the LM224DR we delivered, we will accept the replacement or return of the LM224DR only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of LM224DR.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
