Name: LM224AD
Brand: STMicroelectronics
SKU: LM224AD
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics LM224AD

Part No.:: LM224AD

Manufacturer:: STMicroelectronics

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: LM224AD.pdf

Description:: IC OPAMP GP 4 CIRCUIT 14SO

In Stock:: 3364

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM224AD Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
AmplifierType:
General Purpose
NumberofCircuits:
4
OutputType:
-
SlewRate:
0.4V/µs
GainBandwidthProduct:
1.2 MHz
-3dbBandwidth:
-
Current-InputBias:
20 nA
Voltage-InputOffset:
2 mV
Current-Supply:
1.5mA
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

LM224AD this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM224AD price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM224AD to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM224AD information

Views：

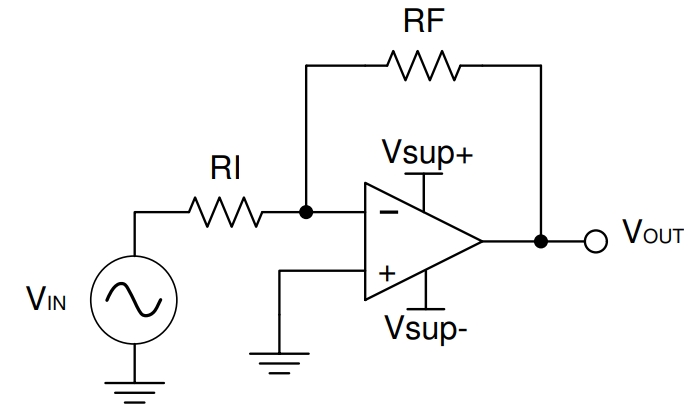

LM224AD Typical application Circuitry

LM224AD

The LM224AD is a low-power quad operational amplifier (op-amp) integrated circuit, designed for a wide range of applications. It consists of four independent, high-gain, internally frequency-compensated op-amps that are designed to operate from a single power supply or split power supplies.

Applications

The LM224AD is used in various scenarios, such as:

1. Analog Signal Processing: It is often employed in circuits for amplifying, filtering, or conditioning analog signals.

2. Instrumentation: The LM224AD is used in measurement devices for signal amplification and data acquisition.

3. Audio Processing: It finds applications in audio circuits for mixing, equalizing, and amplifying audio signals.

Key Parameters

Some important parameters of the LM224AD include:

1. Supply Voltage Range: It operates with a supply voltage range from 3V to 32V, accommodating a variety of power sources.

2. Input Offset Voltage: The low input offset voltage ensures accurate signal amplification without significant distortion.

3. Common-Mode Rejection Ratio (CMRR): High CMRR enhances the ability of the op-amp to reject common-mode signals, improving noise immunity.

Circuit Design Example: Summing Amplifier

A common application of the LM224AD is in a summing amplifier circuit:

1. Power Supply Connections: Connect the positive supply voltage (V+) to pin 4 and the negative supply voltage (V-) to pin 11 of the LM224AD.

2. Input Resistors: Connect resistors (R1, R2, R3) from each input signal to the inverting input (pin 2) of one of the op-amps.

3. Feedback Resistor: To adjust the amplifier's gain, place a resistor (Rf) between the output (pin 1) and the inverting input (pin 2).

4. Non-Inverting Input: Connect the non-inverting input (pin 3) to ground to maintain a reference voltage of zero.

5. Output: The output (pin 1) provides the sum of the input signals, each scaled by the ratio of Rf to their respective input resistors.

Design Considerations

When designing circuits with the LM224AD, several factors should be considered:

1. Gain Setting: The values of the feedback and input resistors should be chosen carefully to set the desired gain for each input signal.

2. Input Impedance: The input impedance of the circuit should be high enough to avoid loading the signal sources.

3. Decoupling of the Power Supply: Decoupling capacitors placed close to the power supply pins can reduce noise and give the op-amp a steady operating environment.

To sum up, the LM224AD is a flexible quad operational amplifier that is employed for signal conditioning and processing in a variety of electronic circuits. It is appropriate for a variety of applications due to its broad input voltage range and low power consumption. To guarantee optimum performance and dependability when building circuits with this integrated circuit, much attention must be paid to the gain setting, input impedance, and power supply decoupling.
