STMicroelectronics LIS3MDLTR

Part No.:: LIS3MDLTR

Manufacturer:: STMicroelectronics

Package:: 12-LGA (2x2)

Datasheet:: LIS3MDLTR.pdf

Description:: SENSOR MR I2C/SPI 12LGA

In Stock:: 3771

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LIS3MDLTR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LIS3MDLTR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LIS3MDLTR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

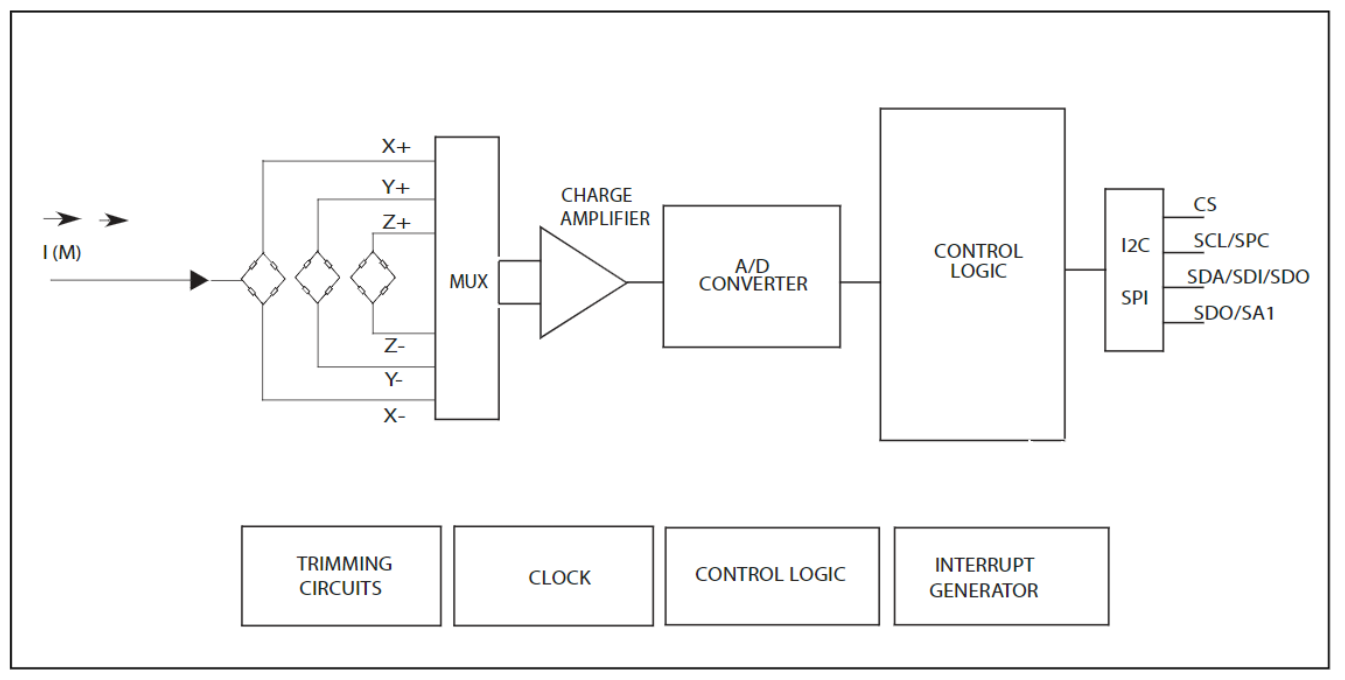

LIS3MDLTR Typical application Circuitry

LIS3MDLTR

The LIS3MDLTR is a high-performance three-axis digital magnetometer from STMicroelectronics. It is typically used in applications requiring compassing and magnetic field detection. This magnetometer is part of the Ecoflot series, offering low-voltage operation, low-power consumption, and a wide range of user-friendly features.

1. Power Supply (VDD/VDD_IO Pins): The LIS3MDLTR requires a power supply for both its core and I/O ports. VDD should be connected to a stable power supply within the range of 1.9V to 3.6V, as should VDD_IO if separate I/O voltage is needed.

2. Ground (GND Pin): Connect the ground pin of the LIS3MDLTR to the ground of your circuit to complete the power circuit.

3. Serial Data Output (SDO/SA0 Pin): The device address's least significant bit can be changed via this pin. If you're connecting the LIS3MDLTR to an I²C bus and need to differentiate between multiple devices, you may alternate the connection of SDO/SA0 between VDD_IO and GND.

4. Serial Clock (SCL/SPC Pin): For I²C communication, connect this pin to the serial clock line of your microcontroller. For SPI communication, it would be the serial clock.

5. Serial Data (SDA/SDI/SDO Pin): For I²C, this pin serves as the data line. In SPI mode, it becomes the data input (SDI), while in 4-wire SPI mode, the data output (SDO) will be a separate pin.

6. Chip Select (CS Pin): If using the LIS3MDLTR in SPI mode, the chip select pin must be connected to a GPIO pin on your microcontroller. For the SPI interface to be enabled, this pin must be driven low.

7. Interrupt Pins (INT1/INT2 Pins): The LIS3MDLTR can be configured to assert an interrupt signal for various events. These pins should be connected to GPIO pins on your microcontroller if interrupt functionality is required.

8. Master Control (DRDY/TEMP_DIS Pin): The DRDY pin indicates when new data is available. It can be connected to a microcontroller pin if data-ready status is necessary for your application.

When designing your circuit, it's essential to follow best practices such as decoupling the power supply with a capacitor close to the LIS3MDLTR power pins to ensure a stable operation. Additionally, ensuring that the layout is free from magnetic interference is crucial for the accurate operation of the magnetometer.

In summary, when integrating the LIS3MDLTR into your design, consider the function of each pin, provide clean power, handle communication protocols correctly (I²C or SPI), and manage interrupt lines as required by your application. Always refer to the manufacturer's datasheet for the most precise and thorough information regarding pin functions and electrical characteristics.

LIS3MDLTR information

LIS3MDLTR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Technology:
Magnetoresistive
Axis:
X, Y, Z
OutputType:
I²C, SPI
SensingRange:
±0.4mT, ±0.8mT, ±1.2mT, ±1.6mT
Voltage-Supply:
1.9V ~ 3.6V
Current-Supply(Max):
270µA (Typ)
Current-Output(Max):
-
Resolution:
16 b
Bandwidth:
-
OperatingTemperature:
-40°C ~ 85°C (TA)
Features:
Selectable Scale
MountingType:
12-LGA (2x2)
