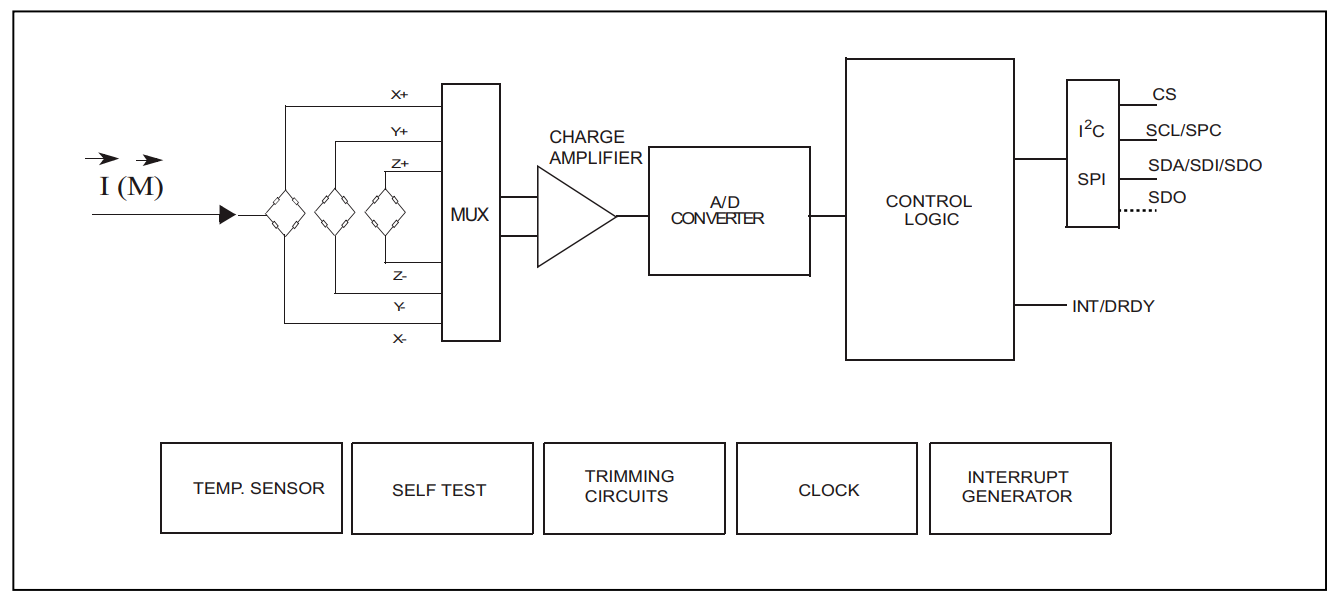

LIS2MDLTR Typical application Circuitry

LIS2MDLTR

The LIS2MDLTR is a prominent member of the MEMS-based devices, specifically designed as a magnetic sensor. Originating from the house of STMicroelectronics, this device is a three-axis digital output magnetometer, playing a vital role in navigation, industrial, and consumer applications.

1. VDD: Representing the power supply input, you should link this pin to the chosen voltage source. The recommended operational voltage for the LIS2MDLTR generally falls between 1.71V to 3.6V.

2. GND: This stands for the grounding pin. Ensure a direct connection to your circuit's ground plane.

3. SDA/SCL: These pins are pivotal for I2C communication. While SDA should couple with your microcontroller's data line, the SCL must pair with the clock line. For those venturing into SPI mode, treat the SDA as SDI and SCL as SPC.

4. CS: Recognized as Chip Select. In SPI communication, this pin demands connection to the microcontroller's chip select output. However, in an I2C environment, linking it to VDD serves the purpose.

5. INT: A customizable interrupt pin, this can easily pair with a GPIO on your microcontroller, enabling you to obtain alerts based on your application's needs.

6. DRDY: Data Ready pin signals when new data is available. Connect it to a microcontroller's GPIO to get an interrupt when new magnetic data is ready to be read.

7. SA0: Address selection comes into play with this pin. Adjusting it lets you modify the I2C device address, ensuring distinction in a multi-device I2C environment.

LIS2MDLTR information

LIS2MDLTR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Technology:
Magnetoresistive
Axis:
X, Y, Z
OutputType:
I²C, SPI
SensingRange:
-
Voltage-Supply:
1.71V ~ 3.6V
Current-Supply(Max):
-
Current-Output(Max):
-
Resolution:
16 b
Bandwidth:
5Hz ~ 50Hz
OperatingTemperature:
-40°C ~ 85°C (TA)
Features:
Selectable Scale
MountingType:
12-LGA (2x2)
