Texas Instruments INA326EA/2K5G4

Part No.:: INA326EA/2K5G4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: INA326EA/2K5G4.pdf

Description:: IC INST AMP 1 CIRCUIT 8VSSOP

In Stock:: 3547

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA326EA/2K5G4 Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
-
GainBandwidthProduct:
-
-3dbBandwidth:
1 kHz
Current-InputBias:
200 pA
Voltage-InputOffset:
20 µV
Current-Supply:
2.4mA
Current-Output/Channel:
25 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

INA326EA/2K5G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA326EA/2K5G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA326EA/2K5G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA326EA/2K5G4 information

Views：

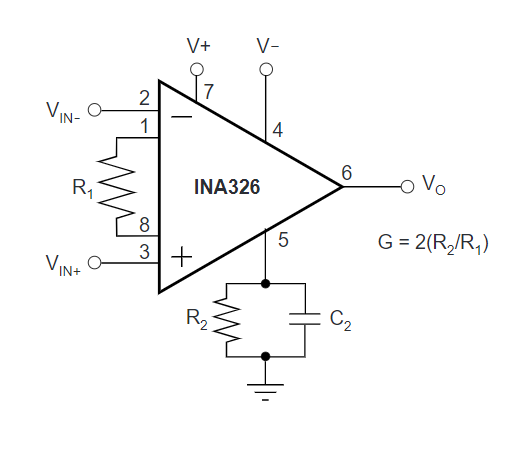

INA326EA/2K5G4 Typical application Circuitry

INA326EA/2K5G4

The INA326EA/2K5G4 encapsulates the essence of precision. As part of the INA326 series, it's acknowledged for its versatile gain configurations, superlative common-mode rejection ratio, and laudable power efficiency. This instrumentality predominantly finds its niche in systems necessitating precise amplification, such as medical instrumentation, precision data acquisition, and sensor amplification.

1. Input Terminals:

- IN+ (Pin 3) and IN- (Pin 4): These are the differential input terminals. The INA326EA/2K5G4 will amplify the voltage difference between these two pins. Their interface with the source signals should be meticulously crafted to ensure low noise and high accuracy.

2. Output Dynamics:

- VOUT (Pin 6): Emitting the amplified signal, this output pin carries the processed differential input and should be interfaced with subsequent stages in the signal chain, like ADCs or filters.

3. Supply Considerations:

- V+ (Pin 7): The positive power supply terminal. Feed this pin with the recommended positive voltage as per the INA326EA/2K5G4's datasheet.

- V- (Pin 2): The negative power supply terminal, which can often be grounded in single-supply operations.

4. Gain Setting:

- RG Pins (Pin 1 and Pin 8): These pins govern the gain of the INA326EA/2K5G4. By affixing an external resistor between these two pins, the amplifier's gain can be meticulously adjusted. A direct connection (short-circuit) usually sets the device to its minimum gain.

5. Bypass Capacitance: Integrating bypass capacitors close to the V+ and V- pins of the INA326EA/2K5G4 fortifies the amplifier's stability and noise performance. Usually, a combination of a small ceramic capacitor (like 0.1uF) and a larger electrolytic capacitor serves the purpose astutely.

6. Input Resistor Matching: To optimize the common-mode rejection, it's judicious to ensure matched resistance in both input paths.

7. Feedback Stability: While the INA326EA/2K5G4 is internally compensated, for gains close to unity, it's prudent to inspect stability and, if needed, integrate an external compensation network.

In essence, the INA326EA/2K5G4 stands as an epitome of precision in the instrumentation amplifier domain, sculpting pathways for meticulous signal amplification. An exhaustive comprehension of its datasheet complements this overview, empowering designers to seamlessly amalgamate the INA326EA/2K5G4 into their electronic designs, cherishing its unparalleled precision.
