Texas Instruments INA240A3QDRQ1

Part No.:: INA240A3QDRQ1

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: INA240A3QDRQ1.pdf

Description:: IC CURRENT SENSE 1 CIRCUIT 8SOIC

In Stock:: 2127

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA240A3QDRQ1 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100, Zero-Drift
ProductStatus:
Active
AmplifierType:
Current Sense
NumberofCircuits:
1
OutputType:
-
SlewRate:
2V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
400 kHz
Current-InputBias:
90 µA
Voltage-InputOffset:
5 µV
Current-Supply:
1.8mA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

INA240A3QDRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA240A3QDRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA240A3QDRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA240A3QDRQ1 information

Views：

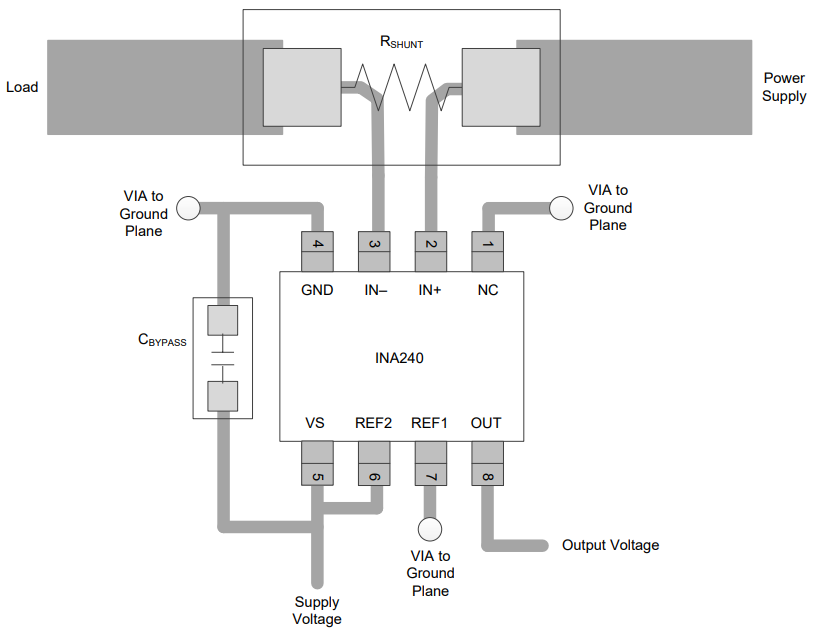

INA240A3QDRQ1 Typical application Circuitry

The INA240A3QDRQ1 is a voltage-output, current-sense amplifier that features a wide input common-mode range and is produced by Texas Instruments. This chip is essential for accurate, high-performance current sensing across a variety of applications.

Features of the INA240A3QDRQ1 are:

1. Bidirectional Sensing: The INA240A3QDRQ1 is capable of bidirectional current sensing, making it ideal for applications that require both charging and discharging current monitoring.

2. Wide Common-Mode Voltage Range: It offers a wide common-mode voltage range from -16V to +80V, making it beneficial for high voltage applications.

3. Accuracy: It provides excellent accuracy with a maximum offset voltage of 150µV and gain error as low as 0.2%.

4. Automotive Grade: As an automotive-qualified chip, the INA240A3QDRQ1 is suitable for use in vehicle-related systems.

Application Scenarios:

The INA240A3QDRQ1 can find utility in diverse scenarios, such as automotive systems, power management, battery monitoring systems, and solar inverters.

For a solar inverter application, a detailed circuit connection may include:

1. Power Supply (V+, Pin 5 and GND, Pin 3): The power supply and ground should be connected to the V+ and GND pins, respectively. The power supply must be within the chip's operational range, which is between 2.7V and 5.5V.

2. Sense Resistor (IN+, Pin 4 and IN-, Pin 2): Place these pins across the sense resistor that is in series with the load or source whose current is being measured.

3. Voltage Output (OUT, Pin 1): The OUT pin will output a voltage that corresponds to the sensed current. You can connect this to a microcontroller's ADC input for digital processing.

4. Reference Input (REF, Pin 6): Generally, you connect the REF pin to ground or a mid-supply voltage depending on whether you require unidirectional or bidirectional current sensing.

When incorporating the INA240A3QDRQ1 in circuit design, consider the following:

- Choice of Sense Resistor: The value of the sense resistor can influence the measurement range and accuracy. A lower value minimizes power loss but may affect accuracy.

- Common-Mode Voltage: Avoid exceeding the maximum common-mode voltage to prevent damaging the INA240A3QDRQ1.

- Thermal Management: Pay attention to the total power dissipation in the package and use suitable cooling methods if required.

- Noise Mitigation: Keep signal traces short and away from high-noise components to minimize noise interference on the OUT pin.
