Texas Instruments INA2126E/2K5

Part No.:: INA2126E/2K5

Manufacturer:: Texas Instruments

Package:: 16-SSOP (0.154, 3.90mm Width)

Datasheet:: INA2126E/2K5.pdf

Description:: IC INST AMP 2 CIRCUIT 16SSOP

In Stock:: 3992

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA2126E/2K5 Specifications

Package/Case:
16-SSOP (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Bulk
Series:
-
ProductStatus:
Active
AmplifierType:
Instrumentation
NumberofCircuits:
2
OutputType:
-
SlewRate:
0.4V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
200 kHz
Current-InputBias:
10 nA
Voltage-InputOffset:
50 µV
Current-Supply:
175µA (x2 Channels)
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

INA2126E/2K5 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA2126E/2K5 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA2126E/2K5 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA2126E/2K5 information

Views：

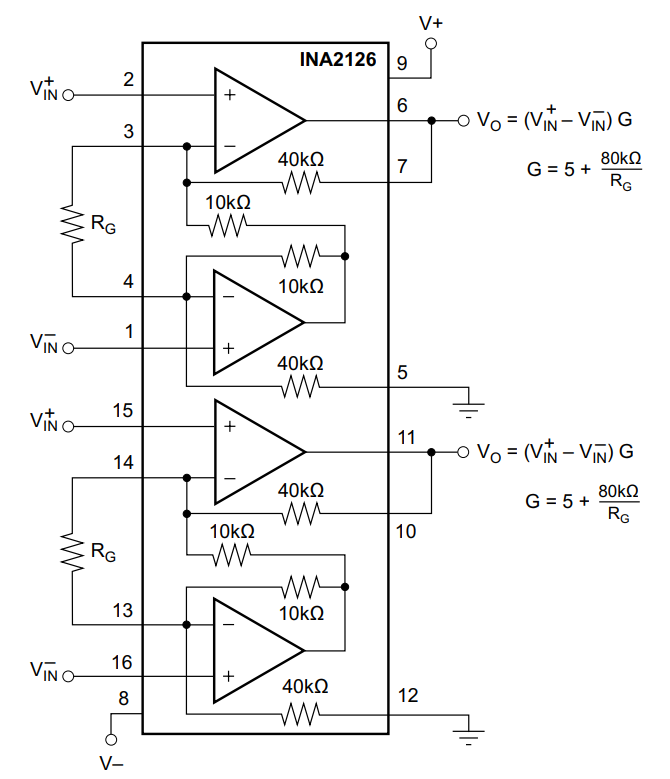

INA2126E/2K5 Typical application Circuitry

INA2126E/2K5

The INA2126E/2K5 is a robust, precision instrumentation amplifier from Texas Instruments, commonly used in data acquisition and automotive applications due to its high precision and low power consumption. Herein is a detailed guideline on connecting the INA2126E/2K5 to a circuit, with an emphasis on the individual pin connections.

1. Power Supply Pins (V+, V-): The INA2126E/2K5 operates on a dual supply. Connect your positive power supply to the V+ pin, while the V- pin should be tied to the ground in single supply scenarios or to the negative end of your power source in dual-supply systems.

2. Input Pins (IN1+, IN1-, IN2+, IN2-): The INA2126E/2K5, being a dual instrumentation amplifier, comprises two sets of differential input pins. You should connect the differential input signals to these pins according to the specifics of your application.

3. Output Pins (OUT1, OUT2): These pins provide the amplified differential input signals. These amplified signals can then be utilized in your circuit's next stage, which could be an analog-to-digital converter (ADC), a filter, or an input to a microcontroller.

4. Reference Input Pins (REF1, REF2): These pins provide a reference voltage for the corresponding output pins (OUT1 and OUT2). In most cases, they are tied to the mid-point of the supply in single-supply configurations or the ground in dual-supply systems.

5. Gain Set Pins (RG1, RG2): The gain of the INA2126E/2K5 can be adjusted using resistors connected to these pins. For the desired gain, refer to the data sheet to select the appropriate resistor values.

To ensure optimal performance, it's advisable to adhere to the best practices for analog circuit design, such as the strategic placement of decoupling capacitors near the power supply pins and the mindful routing of sensitive analog signal lines.
