Texas Instruments INA210AIDCKTG4

Part No.:: INA210AIDCKTG4

Manufacturer:: Texas Instruments

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: INA210AIDCKTG4.pdf

Description:: IC CURR SENSE 1 CIRCUIT SC70-6

In Stock:: 2191

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA210AIDCKTG4 Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
Current Sense
NumberofCircuits:
1
OutputType:
-
SlewRate:
0.4V/µs
GainBandwidthProduct:
14 kHz
-3dbBandwidth:
-
Current-InputBias:
28 µA
Voltage-InputOffset:
0.55 µV
Current-Supply:
65µA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
26 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

INA210AIDCKTG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA210AIDCKTG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA210AIDCKTG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA210AIDCKTG4 information

Views：

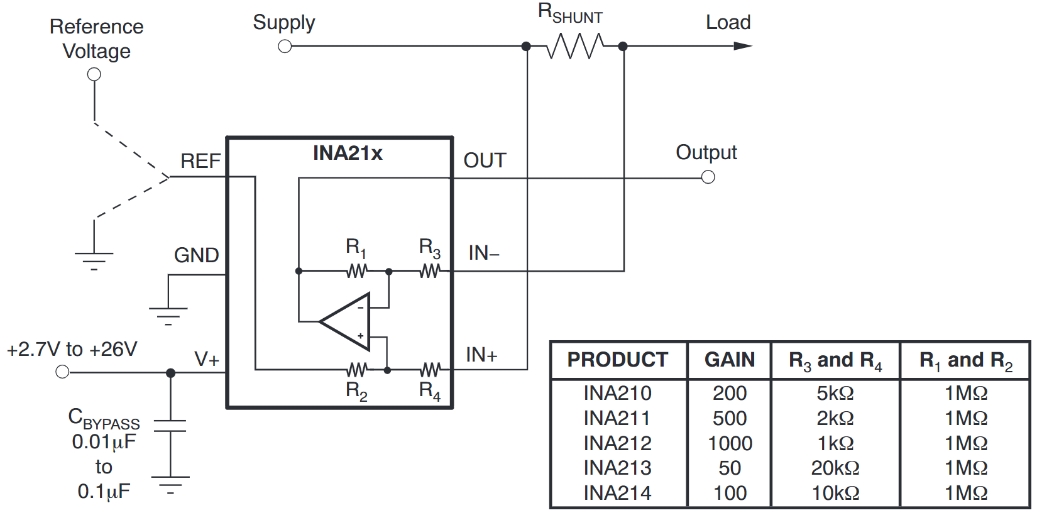

INA210AIDCKTG4 Typical application Circuitry

INA210AIDCKTG4

The INA210AIDCKTG4 chip is a precision current-sense amplifier designed for a wide range of applications, including power management, battery charging, and energy monitoring. It offers a high level of accuracy and low power consumption, making it ideal for portable and battery-powered devices.

Applications:

- Battery management systems

- Power supply monitoring

- Overcurrent protection

- Automotive systems

Key Features:

- High accuracy: Ensures precise current measurement.

- Wide input common-mode voltage range: Allows for use in various applications.

- Low quiescent current: Increases the lifespan of portable devices' batteries.

- Small package size: Saves space on the PCB.

Example Circuit Design: Battery Monitoring System

1. Power Supply Connection: Attach the INA210AIDCKTG4's GND pin (pin 4) to the ground and its V+ pin (pin 5) to a 3.3V power source.

2. Current Sensing Resistor: Connect a low-value current sensing resistor (R_SHUNT) between the source of a battery and the RS+ pin (pin 1) of the INA210AIDCKTG4. Connect the RS- pin (pin 2) to the ground.

3. Output Connection: Connect the OUT pin (pin 3) of the INA210AIDCKTG4 to the analog input of a microcontroller for current measurement.

4. Filtering: Add a capacitor (C_F) between the OUT pin and GND to filter high-frequency noise.

5. Calibration: Calibrate the system by measuring the voltage across the shunt resistor and comparing it with the output of the INA210AIDCKTG4 to ensure accuracy.

Design Considerations:

- Shunt Resistor Selection: Choose a shunt resistor with a low resistance value to minimize power loss, but ensure it can handle the maximum expected current.

- Common-Mode Voltage Range: Ensure that the voltage across the shunt resistor falls within the common-mode voltage range of the INA210AIDCKTG4.

- Temperature Coefficient: Because temperature changes might impact measurement accuracy, take into account the shunt resistor's temperature coefficient.

- PCB Layout: Minimize the length of the traces connecting the shunt resistor to the INA210AIDCKTG4 to reduce noise and improve accuracy.

To sum up, the INA210AIDCKTG4 is a flexible current-sense amplifier that may be precisely utilized to monitor current in a variety of applications. It is appropriate for devices that run on batteries due to its excellent precision and low power consumption. To achieve precise and trustworthy measurements while building a circuit with this chip, it's crucial to take the common-mode voltage range, the PCB architecture, and the shunt resistor selection into account.
