Name: INA210AIDCKR
Brand: Texas Instruments
SKU: INA210AIDCKR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments INA210AIDCKR

Part No.:: INA210AIDCKR

Manufacturer:: Texas Instruments

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: INA210AIDCKR.pdf

Description:: IC CURR SENSE 1 CIRCUIT SC70-6

In Stock:: 679

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

INA210AIDCKR Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
Current Sense
NumberofCircuits:
1
OutputType:
-
SlewRate:
0.4V/µs
GainBandwidthProduct:
14 kHz
-3dbBandwidth:
-
Current-InputBias:
28 µA
Voltage-InputOffset:
0.55 µV
Current-Supply:
65µA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
26 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

INA210AIDCKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including INA210AIDCKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for INA210AIDCKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

INA210AIDCKR information

Views：

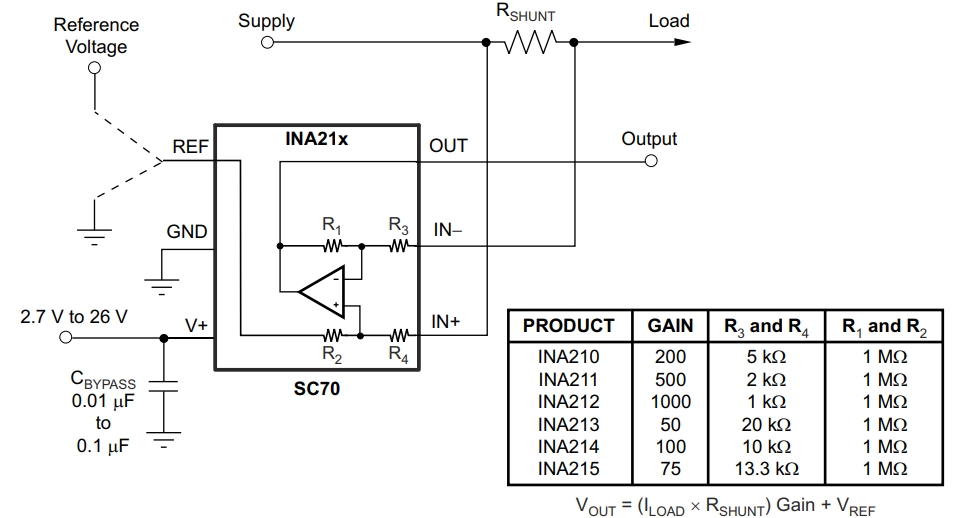

INA210AIDCKR Typical application Circuitry

INA210AIDCKR

The INA210AIDCKR is a precision current-sense amplifier produced by Texas Instruments. It's engineered for accurately gauging current in diverse settings, making it a staple in the INA210 series renowned for precision and energy efficiency. This amplifier is optimal for scenarios demanding exact current tracking.

Application Spectrum: The INA210AIDCKR is pivotal in systems like battery management, power supplies, motor controls, and safeguarding against overcurrent. Its proficiency in delivering precise current readings renders it indispensable for ensuring energy efficiency and operational safety.

Principal Characteristics: The INA210AIDCKR stands out with:

- An input common-mode voltage range extending from -0.3V to +26V.

- Remarkable accuracy, with an offset voltage capped at ±100µV and a gain error limited to ±0.5%.

- A modest quiescent current of 60µA, making it ideal for devices powered by batteries.

- A gain factor of 200V/V, enabling the amplification of minute voltage variations across a shunt resistor.

Design Blueprint for a Power Supply Unit:

1. Supply Voltage Connection: Secure the V+ pin of the INA210AIDCKR to a 3.3V source. Stability and adherence to the specified voltage range are crucial.

2. Shunt Resistor Placement: Position a shunt resistor (R_SHUNT) in the circuit, linking the power source's negative end to the ground. The INA210AIDCKR's IN+ pin should connect to the side of the resistor closer to the power source, and the IN- pin to the side closer to the ground.

3. Output Configuration: Link the OUT pin to an analog input on a microcontroller or an ADC, facilitating current measurement.

4. Noise Filtration: Incorporate a capacitor between the OUT pin and ground to eliminate high-frequency interference, thus stabilizing the measurements.

Considerations for Circuit Implementation:

- Shunt Resistor Selection: Opt for a shunt resistor with minimal temperature dependency and high accuracy to guarantee reliable current measurements. The resistor's value should be chosen based on the anticipated maximum current and the preferred voltage drop across it.

- Supply Voltage Purification: Place decoupling capacitors close to the V+ pin to sift out noise and stabilize the power supply.

- Managing Common-Mode Voltage: Ensure that the voltage at the IN+ and IN- pins falls within the specified range to maintain measurement accuracy.

- Heat Dissipation: Account for the heat generated by the shunt resistor and the INA210AIDCKR to avert overheating and preserve accuracy.

By diligently selecting components and following these design principles, the INA210AIDCKR can be effectively harnessed in a power supply unit for precise current monitoring, thereby enhancing energy efficiency and system safety.
